Serial Data Gateway (SDG) Module (HP2)

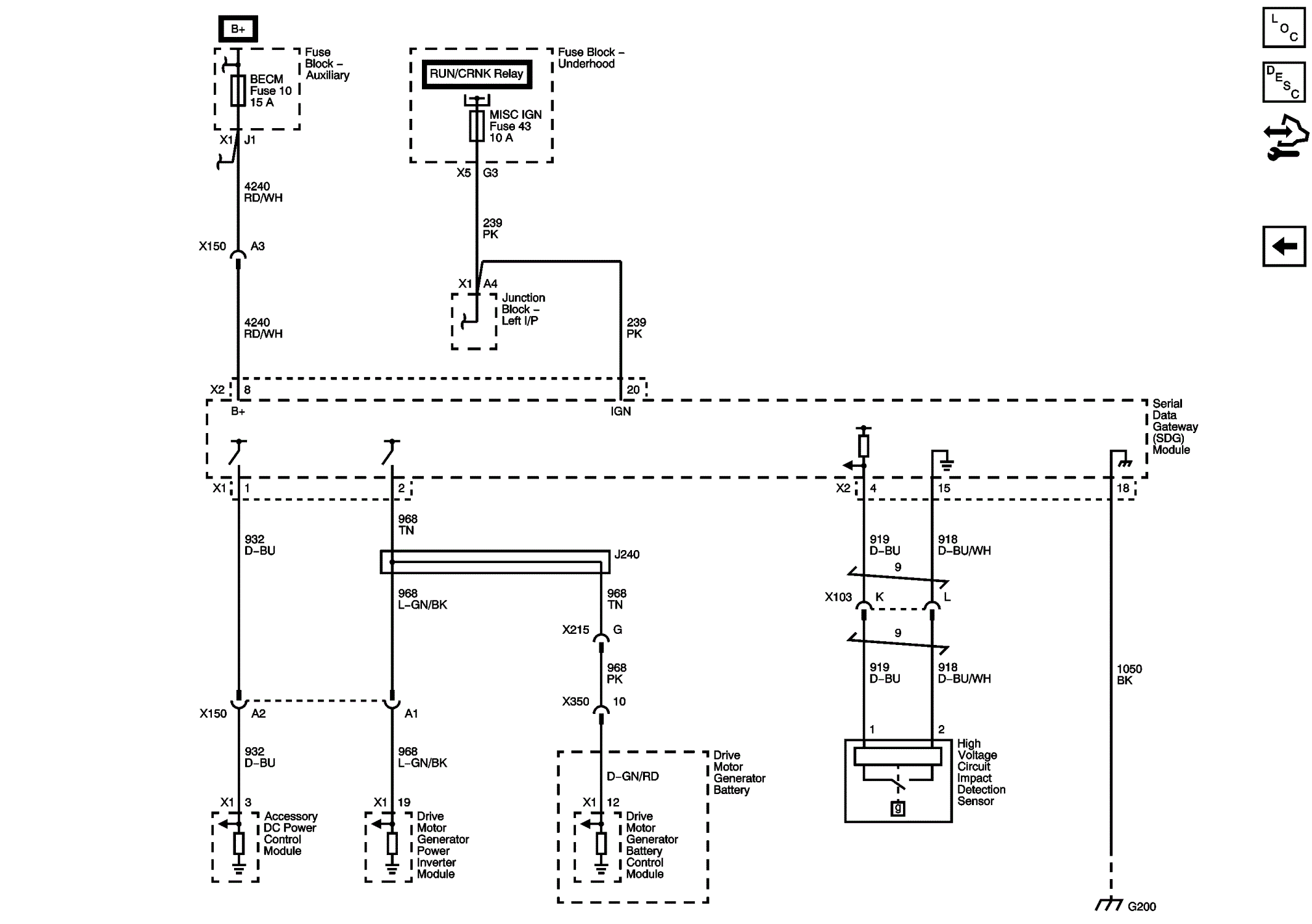

Fig 1: Serial Data Gateway (SDG) Module (HP2) Wiring Schematic
GM2758334Courtesy of GENERAL MOTORS COMPANY
