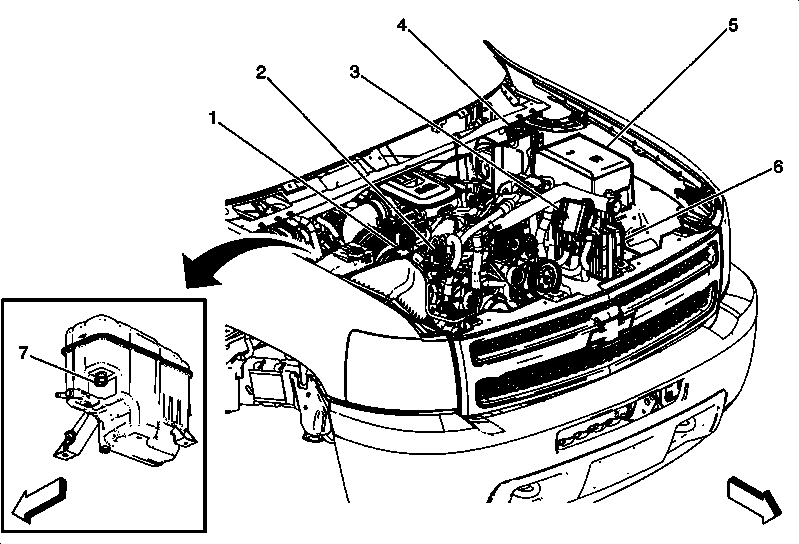

Engine Compartment Components (Diesel)
Engine Compartment Components (Diesel)
| Component Name | Callout |
|---|---|
| Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor | 1 |
| Charge Air Cooler Outlet Temperature Sensor | 2 |
| Transmission Control Module (TCM) | 3 |
| Nitrogen Oxides Sensor 1 | 4 |
| Fuse Block - Underhood | 5 |
| Engine Control Module (ECM) | 6 |
| Engine Coolant Level Switch | 7 |
