Electrical Component Locator - Powertrain Component Views
›
Powertrain Component Views
›
Transfer Case Components (NQG)
Transfer Case Components (NQG)
Transfer Case Components (NQG)
Component Name
Callout
Transfer Case Shift Control Switch
1
Vehicle Speed Sensor (VSS)
2

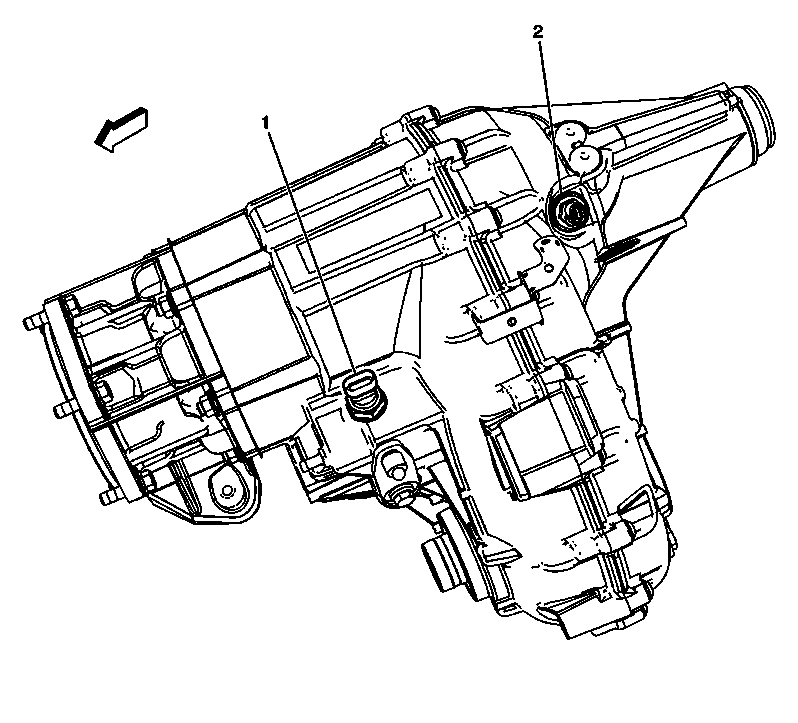

Fig 1: Transfer Case Components (NQG)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
