Transfer Case Components (NQH/NQF)

Component Name	Callout
Transfer Case Encoder Motor	1
Vehicle Speed Sensor (VSS)	2
Transfer Case 2/4 Wheel Drive Actuator Position Sensor (NQH)	3

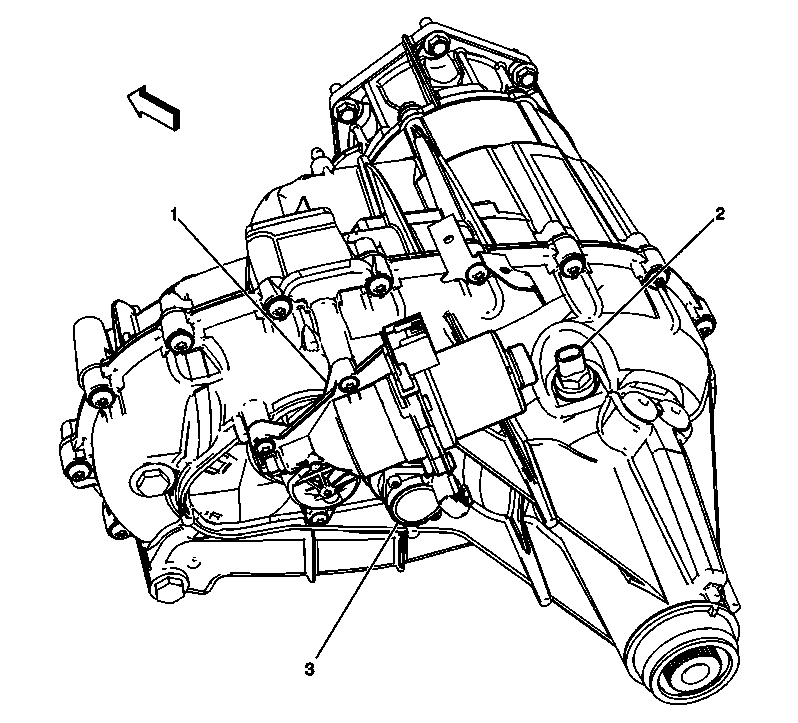

Fig 1: Transfer Case Components (NQH/NQF)

Courtesy of GENERAL MOTORS COMPANY
