Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (TP2 - Auxiliary Battery) , Battery Negative Cable Disconnection and Connection (Single Battery) .

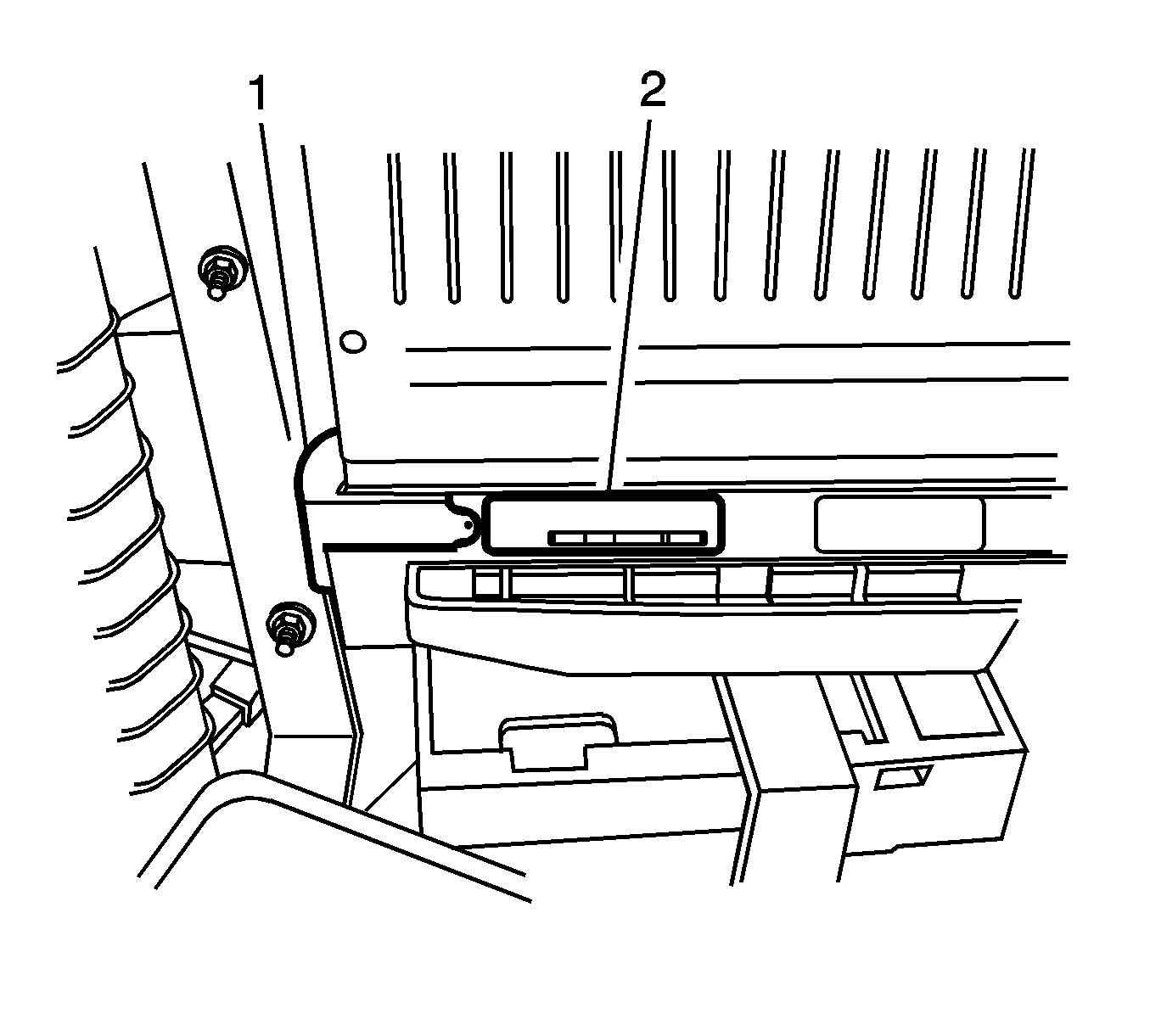

    2. Fig 1: Fuel Injection Control Module
    GM2921005Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the electrical connector from the FICM (2), by sliding purple connector lock open (1).

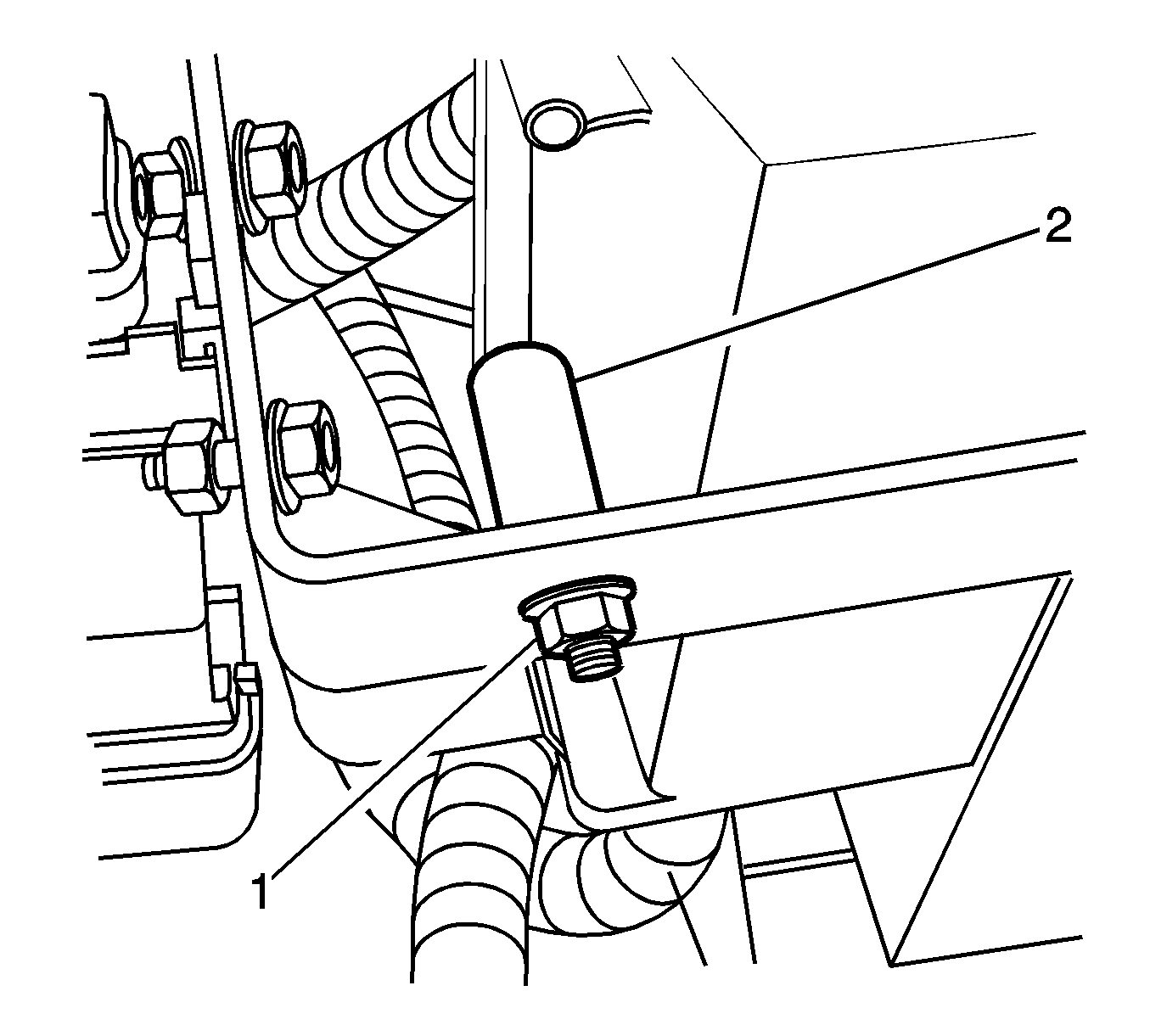

    3. Fig 2: Fuel Injection Control Module Mounting Bracket
    GM2920999Courtesy of GENERAL MOTORS COMPANY
  3. Remove the nuts (1) and spacers (2) attaching the FICM to the mounting bracket.

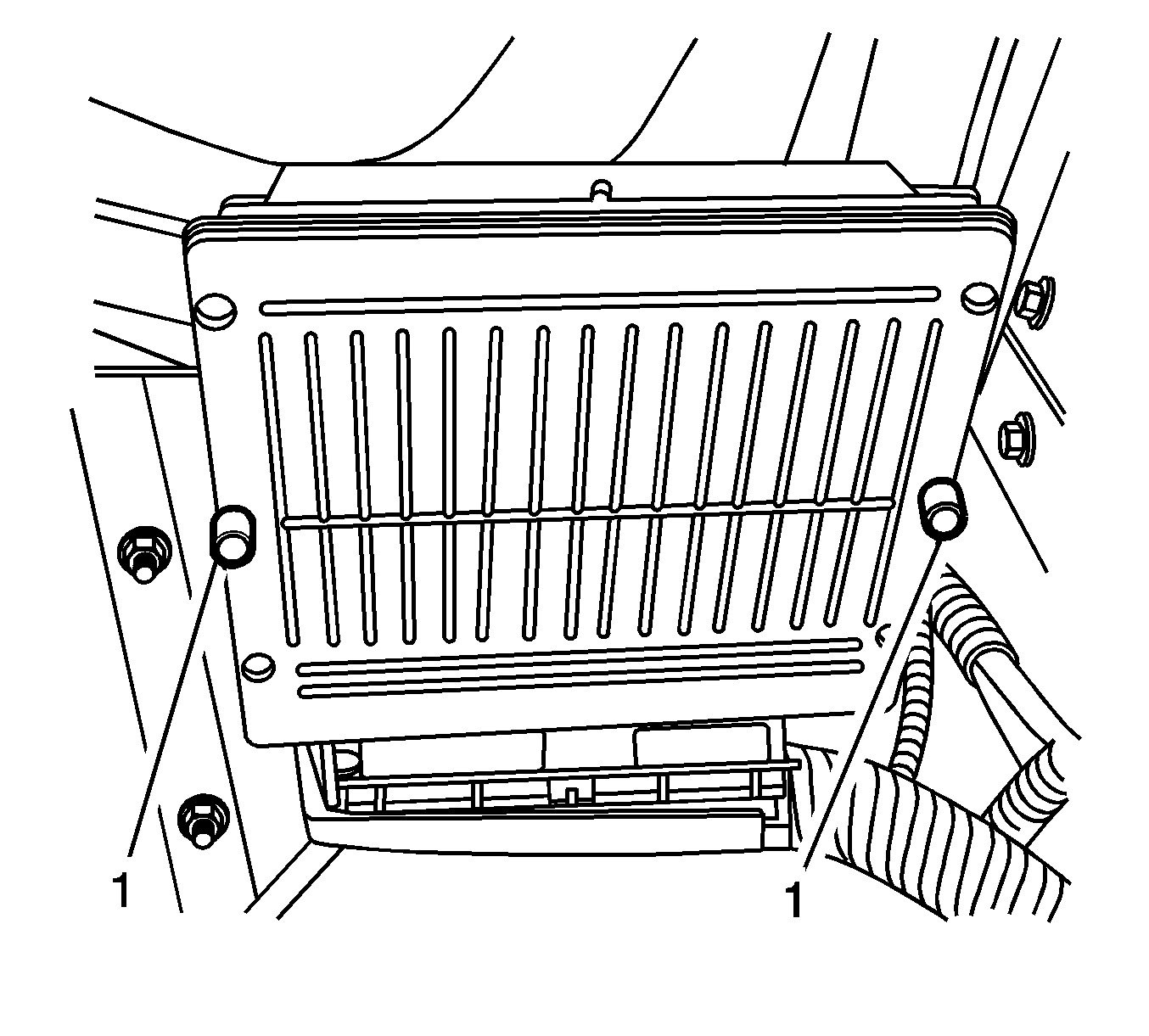

    4. Fig 3: Fuel Injection Control Module Mounting Bracket Bolts
    GM2921002Courtesy of GENERAL MOTORS COMPANY
  4. Remove the bolts (1) attaching the FICM to the mounting bracket.
  5. Remove the FICM from vehicle.
