Throttle Inlet Absolute Pressure Sensor Replacement

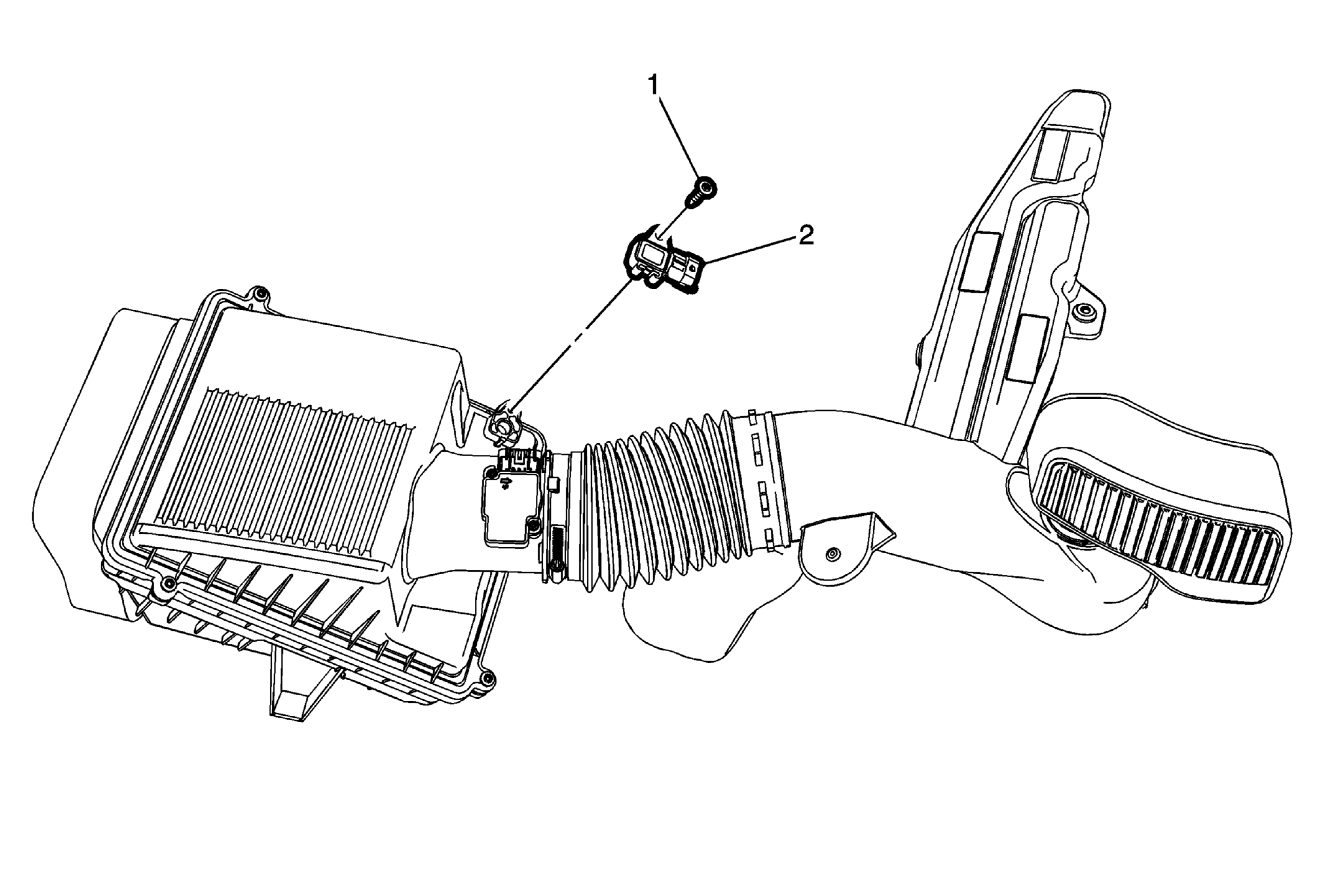

Fig 1: Throttle Inlet Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Throttle Inlet Absolute Pressure Sensor Replacement

Callout	Component Name
1	Throttle Inlet Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  5 N.m (44 lb in)
2	Throttle Inlet Absolute Pressure Sensor Procedure  Disconnect the electrical connector.
