Power Moding and Interior Light References

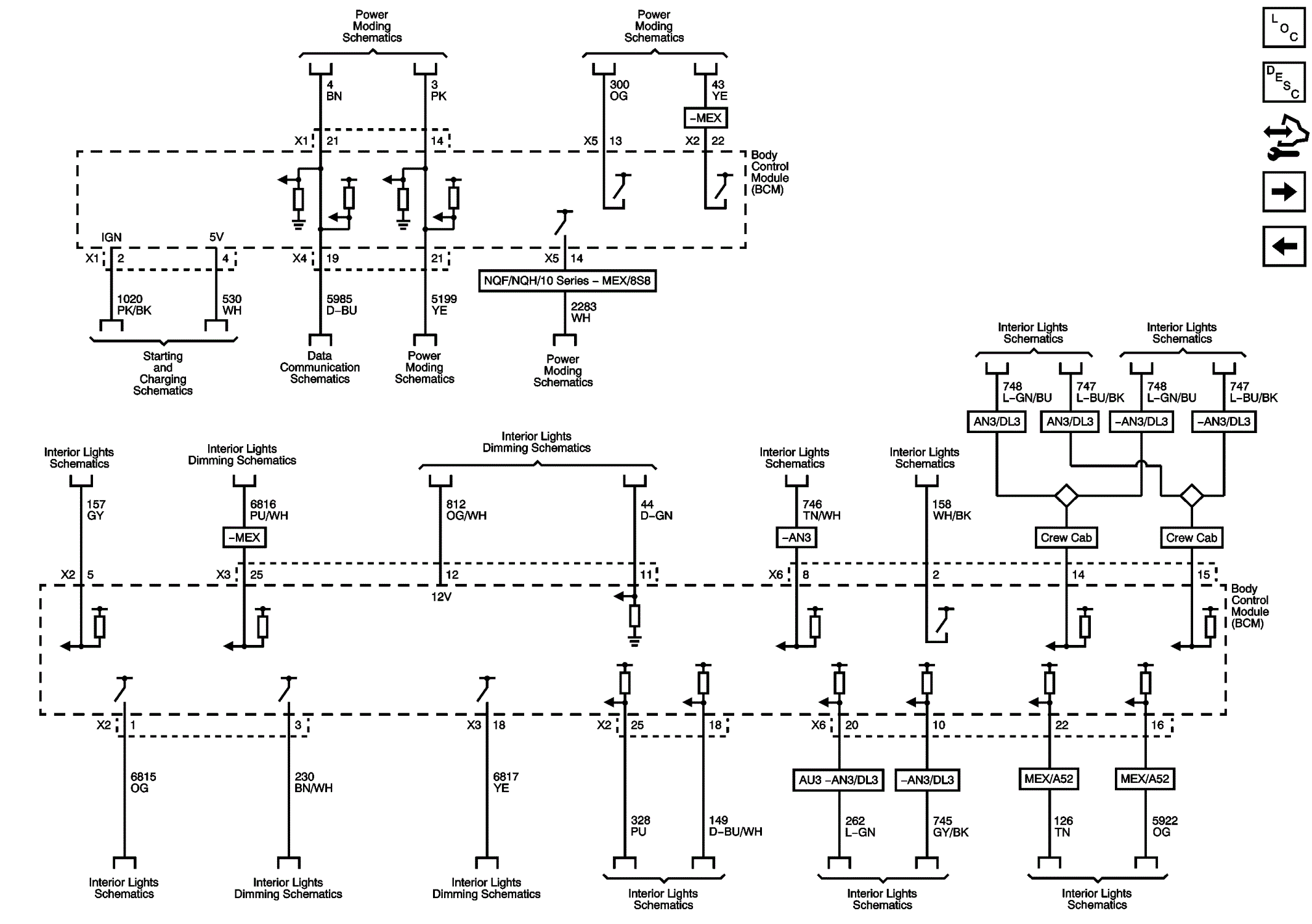

Fig 1: Power Moding and Interior Light References Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
