Powertrain Expansion Bus (LGH or LML)
Powertrain Expansion Bus (LGH or LML)

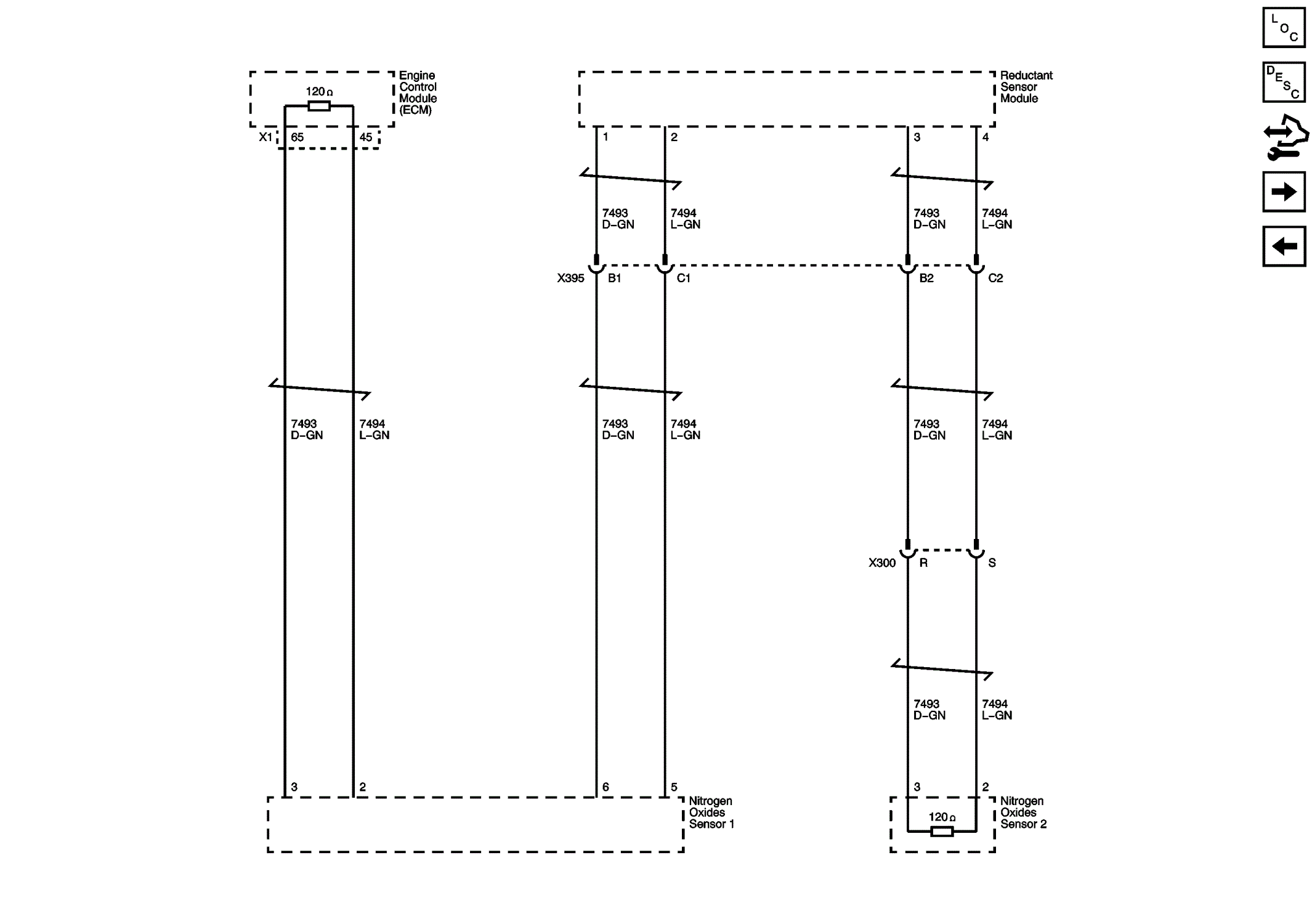

Fig 1: Powertrain Expansion Bus (LGH or LML) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
