Inside the I/P Components (UL5)

Inside the I/P Components (UL5)

Component Name Callout
Chime Module 1

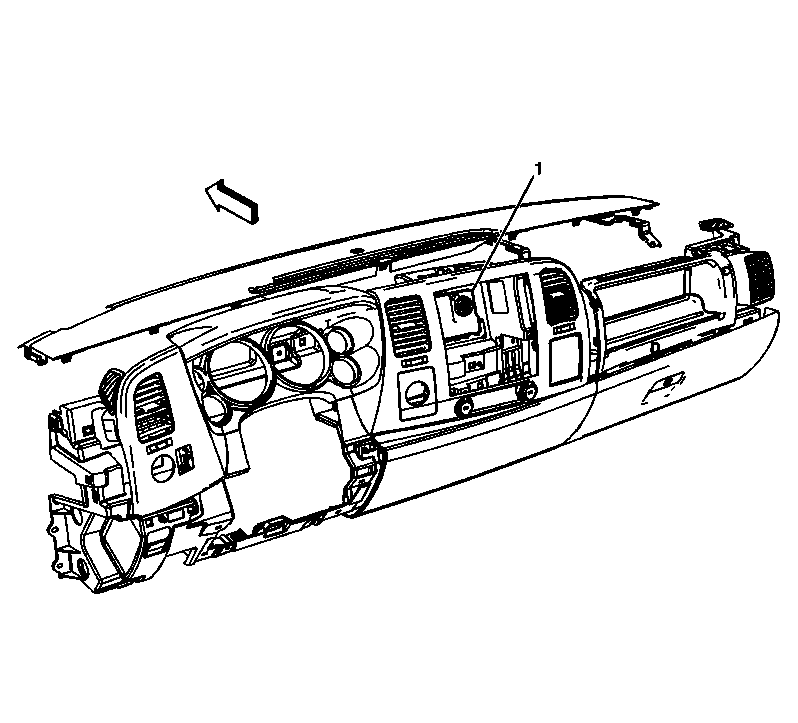

Fig 1: Inside the I/P Components (UL5)
GM2758251Courtesy of GENERAL MOTORS COMPANY
