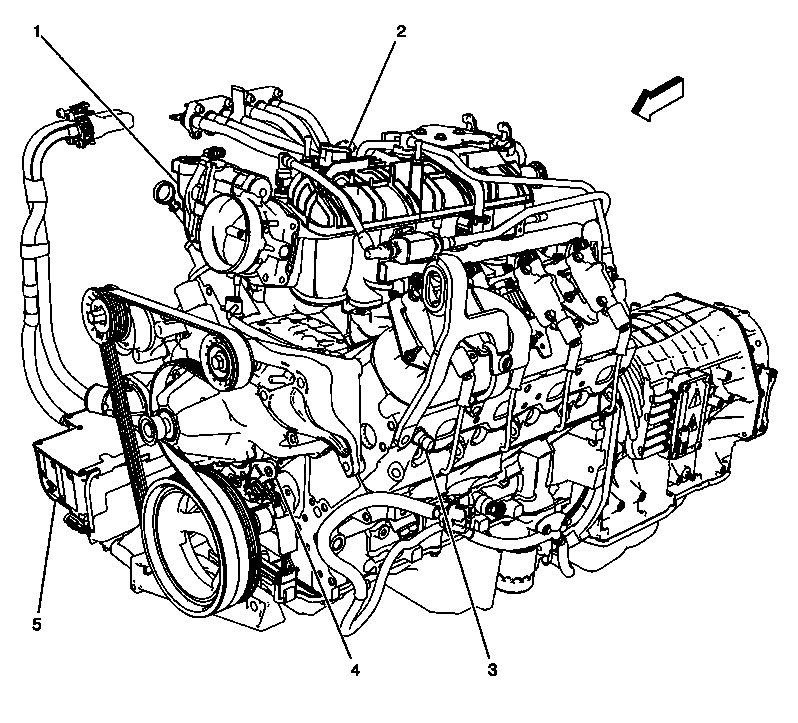

Front of the Engine Components (LFA/HP2)
Front of the Engine Components (LFA/HP2)
| Component Name |
Callout |
| Throttle Body |
1 |
| Manifold Absolute Pressure (MAP) Sensor |
2 |
| Engine Coolant Temperature (ECT) Sensor |
3 |
| Camshaft Position (CMP) Sensor |
4 |
| A/C Compressor |
5 |
Courtesy of GENERAL MOTORS COMPANY
