Shift Lock Control Wiring Schematics

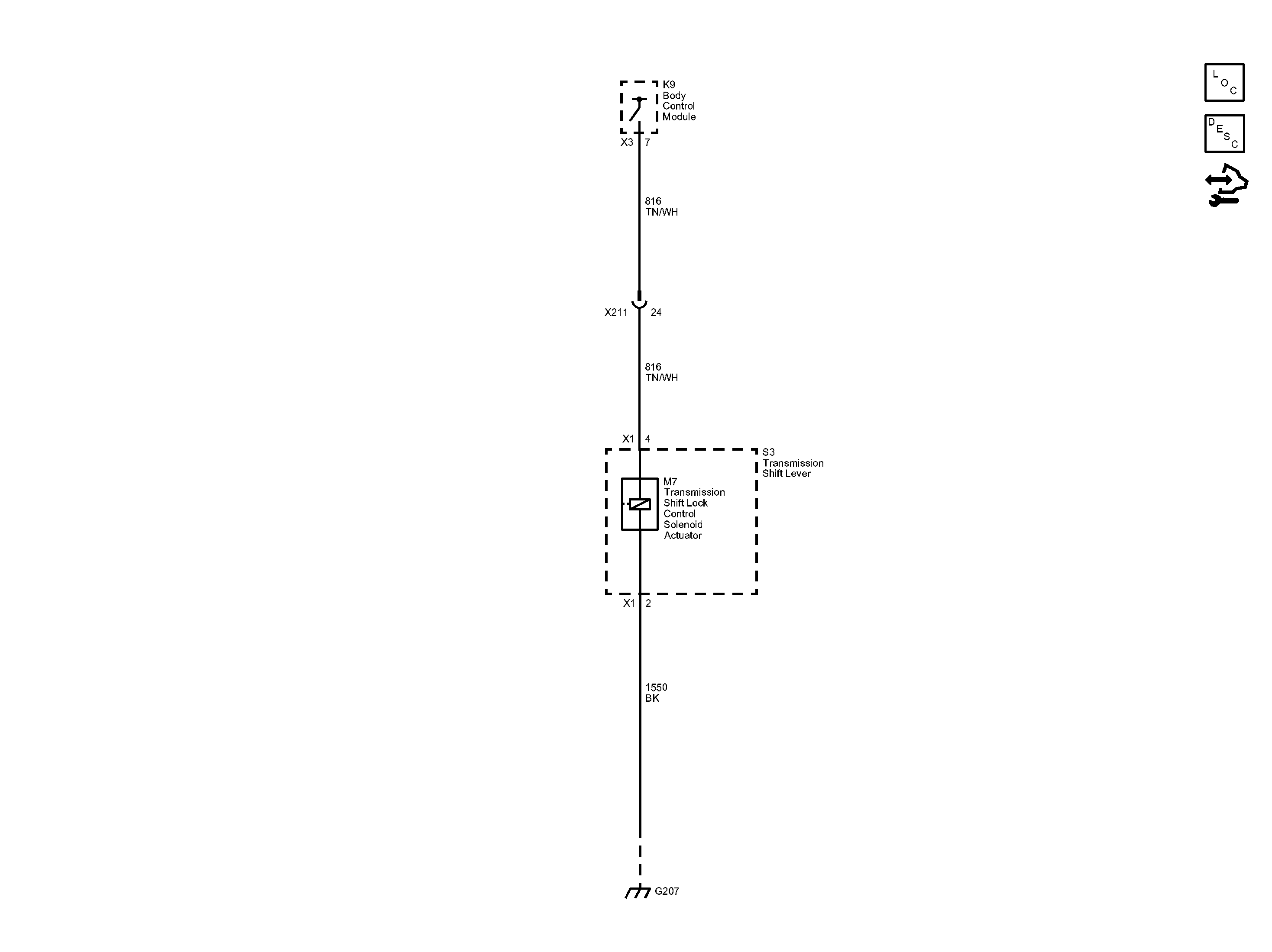

Fig 1: Shift Lock Control Wiring Schematics
GM2816254Courtesy of GENERAL MOTORS COMPANY
