Keyless Entry

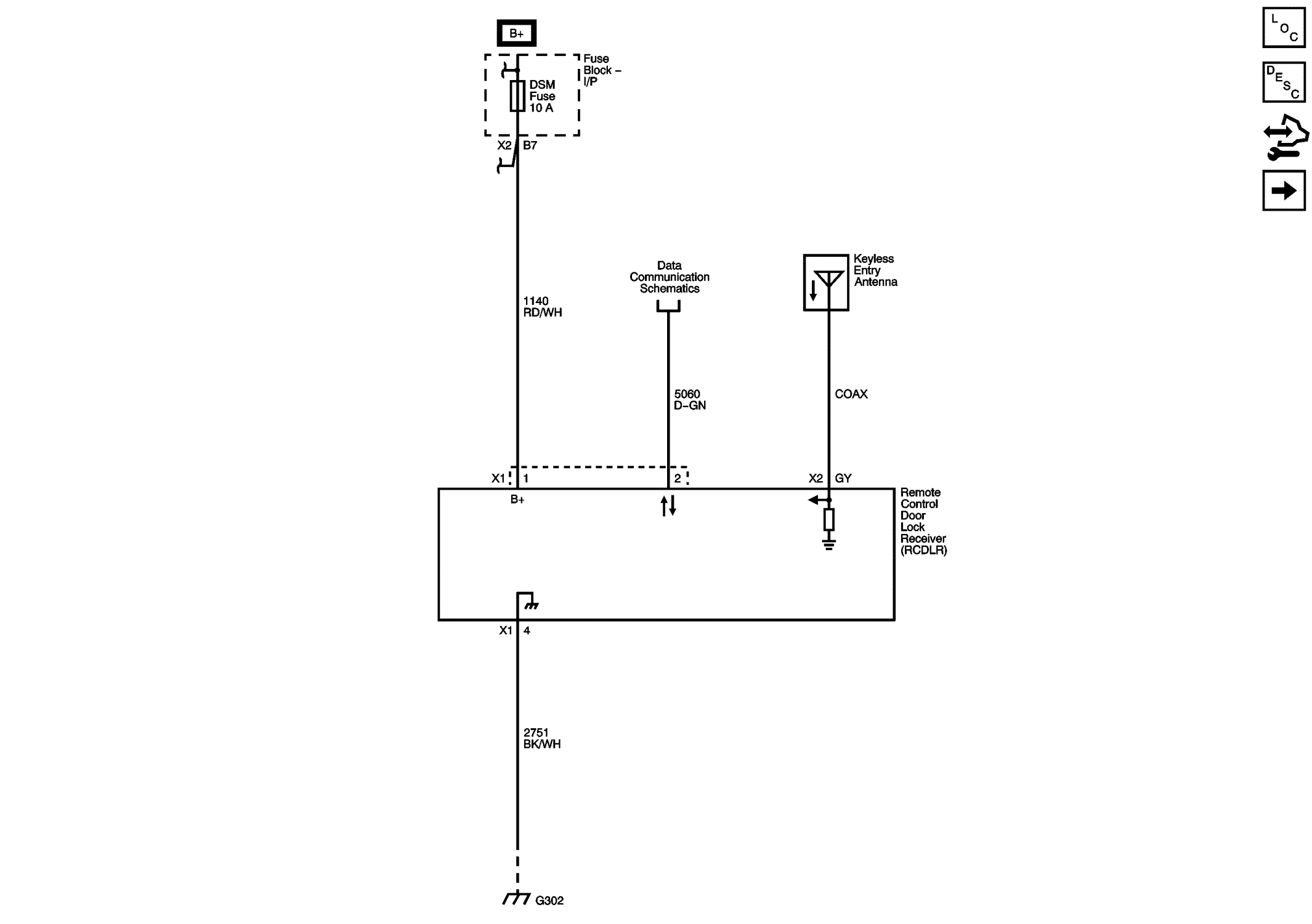

Fig 1: Keyless Entry Wiring Schematic
GM2761990Courtesy of GENERAL MOTORS COMPANY


Fig 1: Keyless Entry Wiring Schematic
GM2761992Courtesy of GENERAL MOTORS COMPANY
