Body Control System Wiring Schematics
›
Module Power, Ground, and Serial Data
Module Power, Ground, and Serial Data

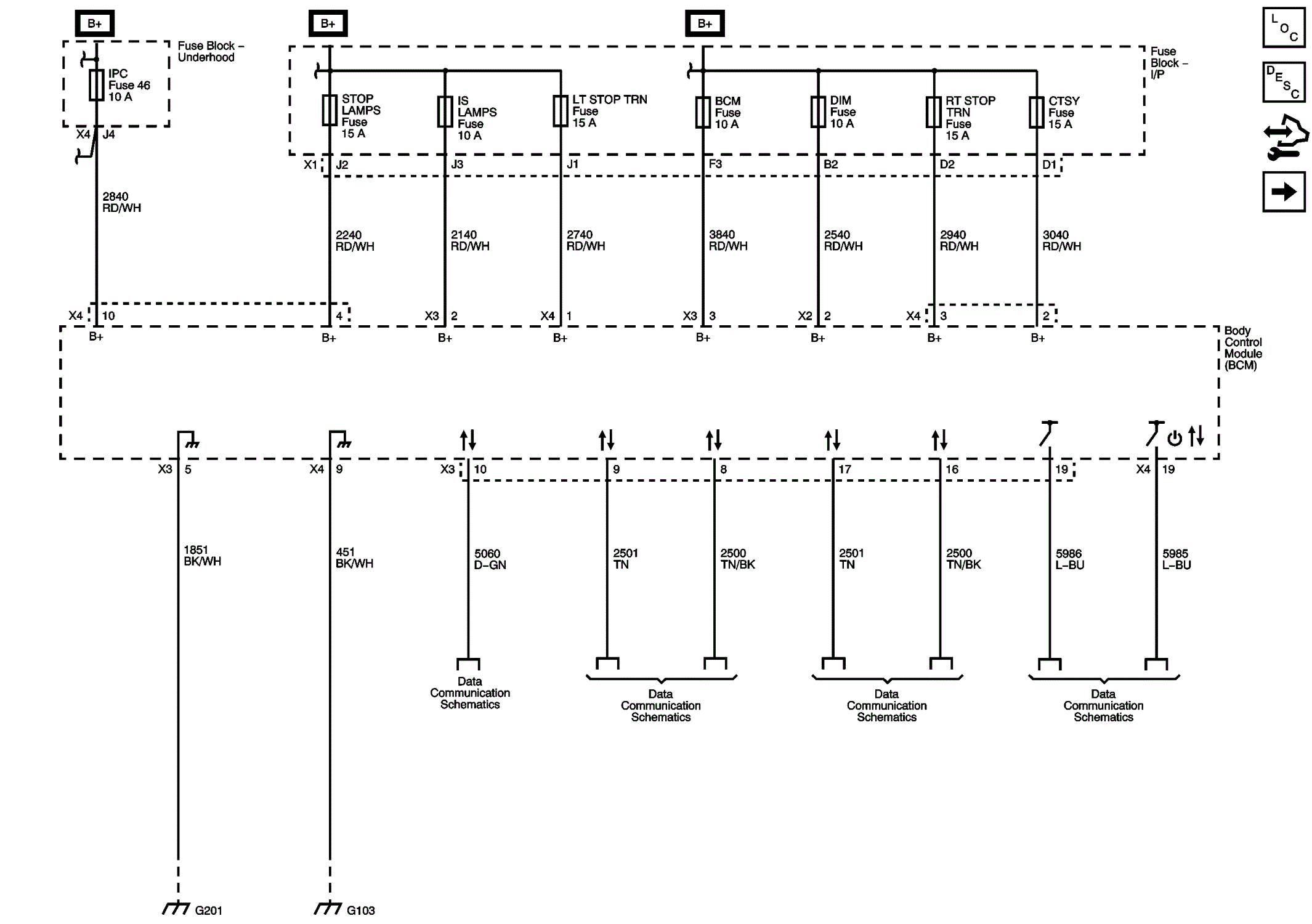

Fig 1: Module Power, Ground, and Serial Data
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
