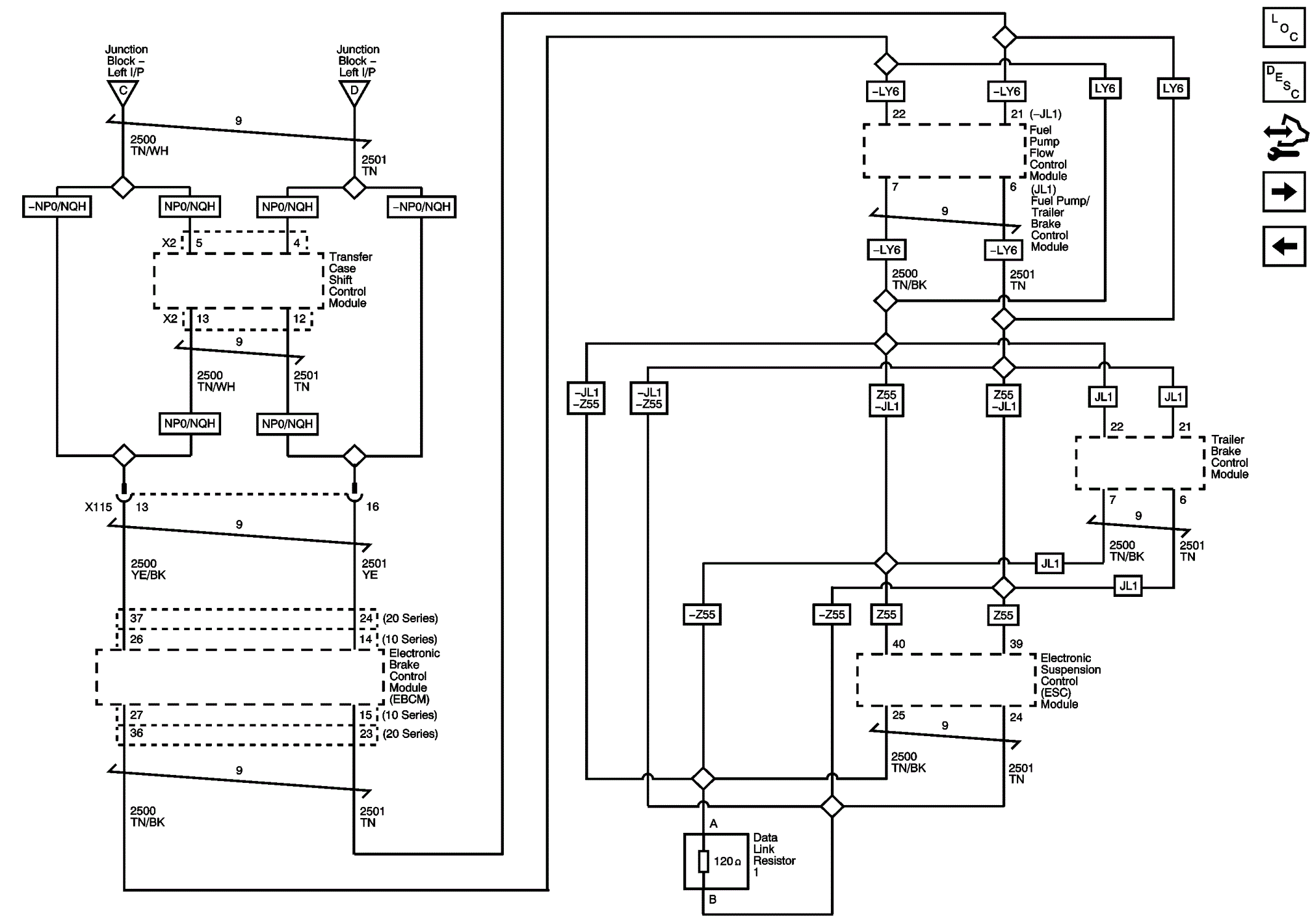

Home › GMC › 2013 › Yukon Base, RWD › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › High Speed Bus (2 of 2)
