Data Communication Wiring Schematics
›
Powertrain Expansion Bus (HP2)
Powertrain Expansion Bus (HP2)

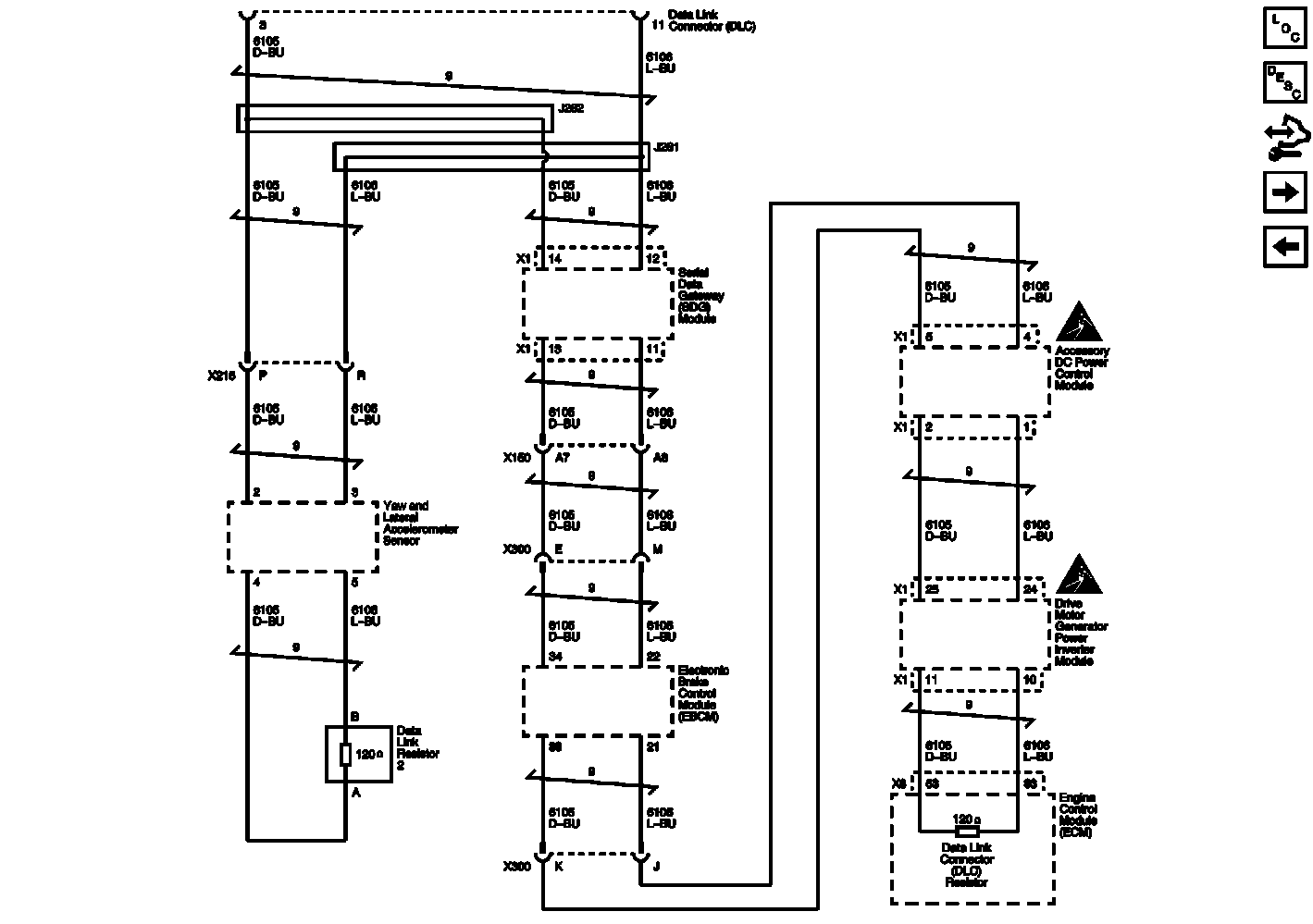

Fig 1: Powertrain Expansion Bus (HP2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
