Powertrain Expansion Bus Wiring Schematics

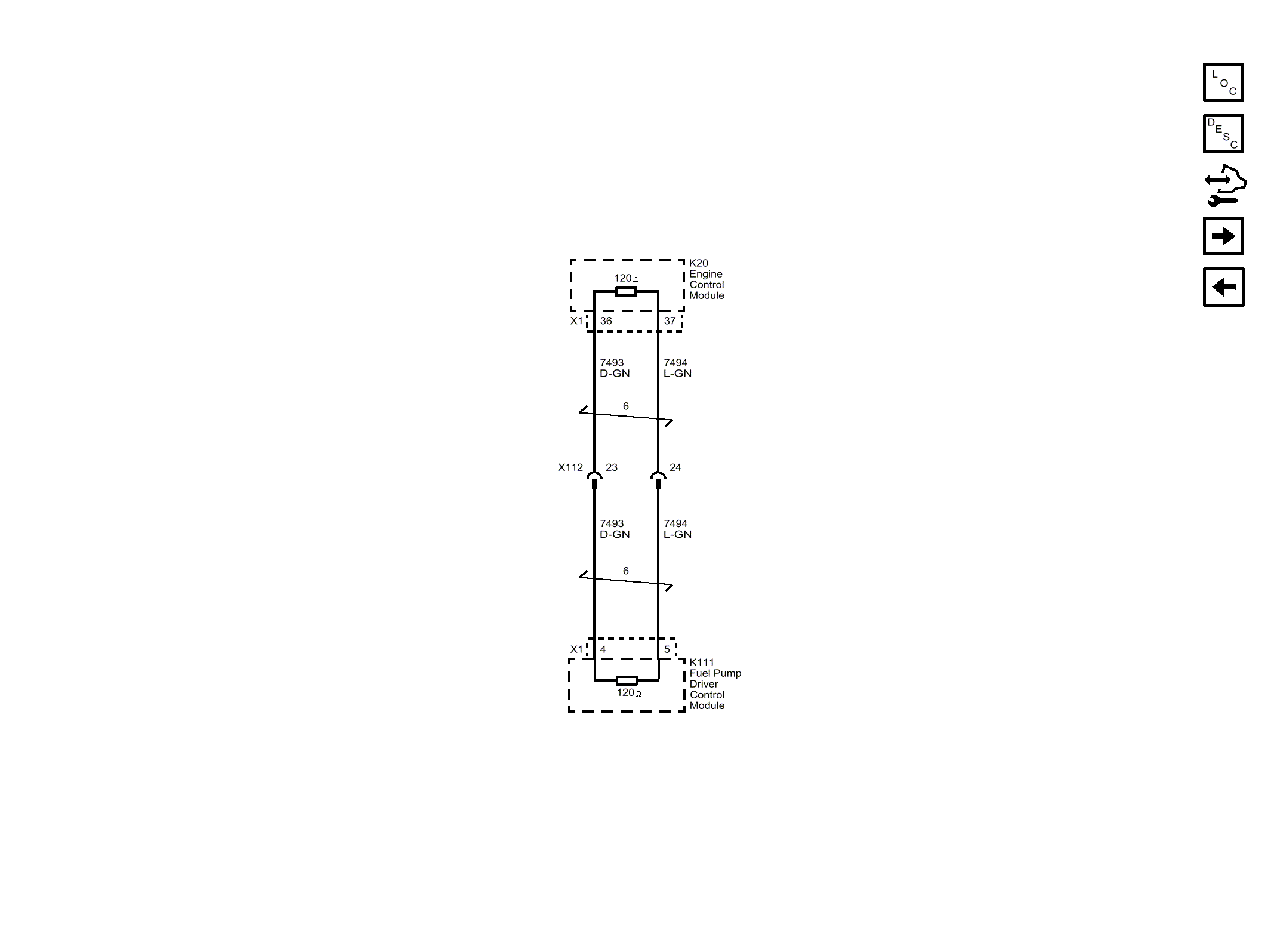

Fig 1: Powertrain Expansion Bus Wiring Schematics
GM3423775Courtesy of GENERAL MOTORS COMPANY
