Front End Inflatable Restraint Discriminating Sensor Replacement

WARNING: This page is about a different car, the 2010 GMC Terrain and 2010 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

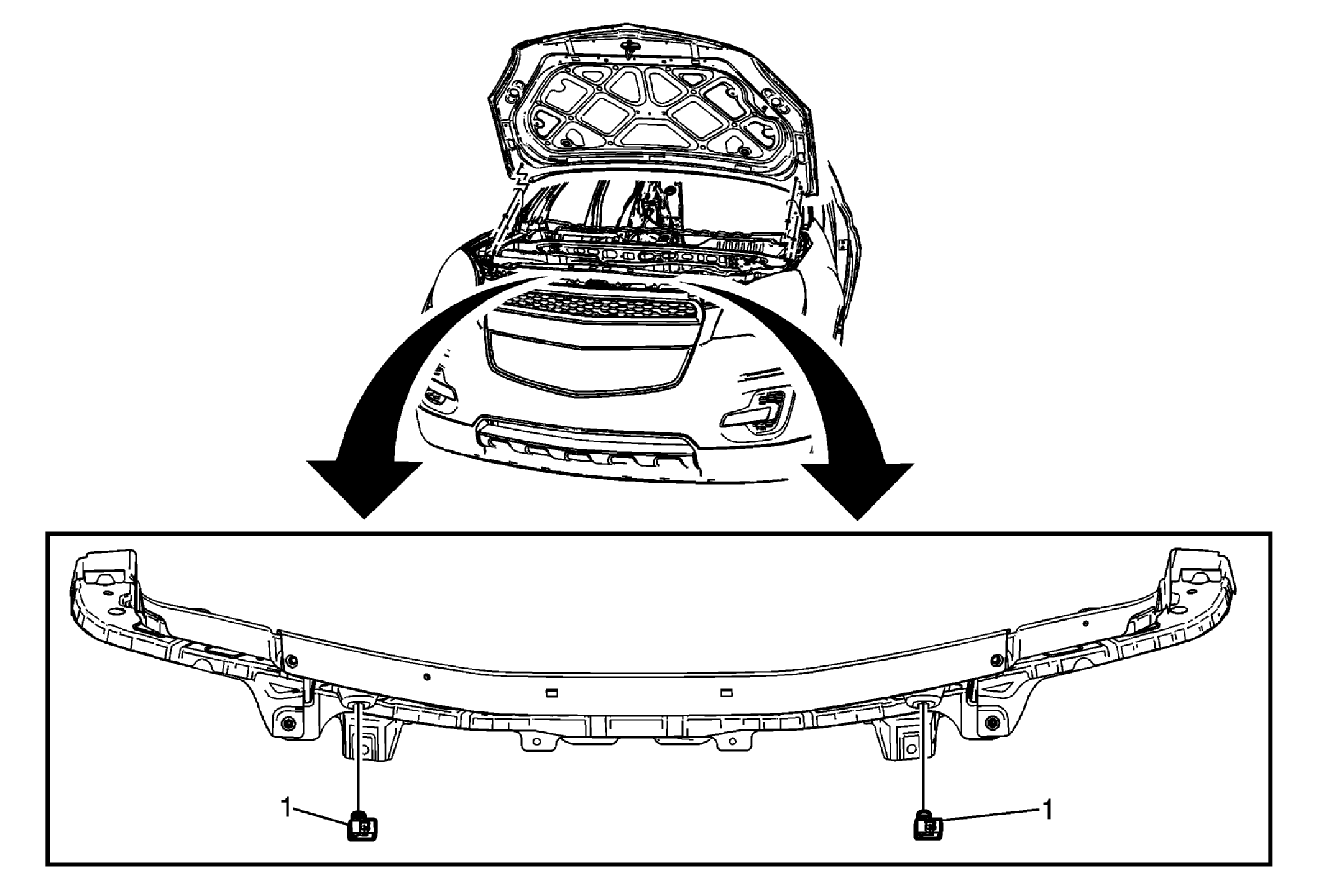

Fig 1: Front End Inflatable Restraint Discriminating Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
1	Front End Inflatable Restraint Discriminating Sensor Assembly CAUTION: Refer to Fastener Caution . Procedure Loosen the bolts and slide the sensor out of the keyhole slots. The bolts are integral to the sensor assembly and DO NOT remove separately. Disconnect the electrical connector. Tighten: 7.5 N.m (66 lb in)

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedures: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .

Front End Inflatable Restraint Discriminating Sensor Assembly

CAUTION: Refer to Fastener Caution .

Procedure

Loosen the bolts and slide the sensor out of the keyhole slots.
The bolts are integral to the sensor assembly and DO NOT remove separately.
Disconnect the electrical connector.

Tighten: 7.5 N.m (66 lb in)
