Keyless Entry Wiring Schematics

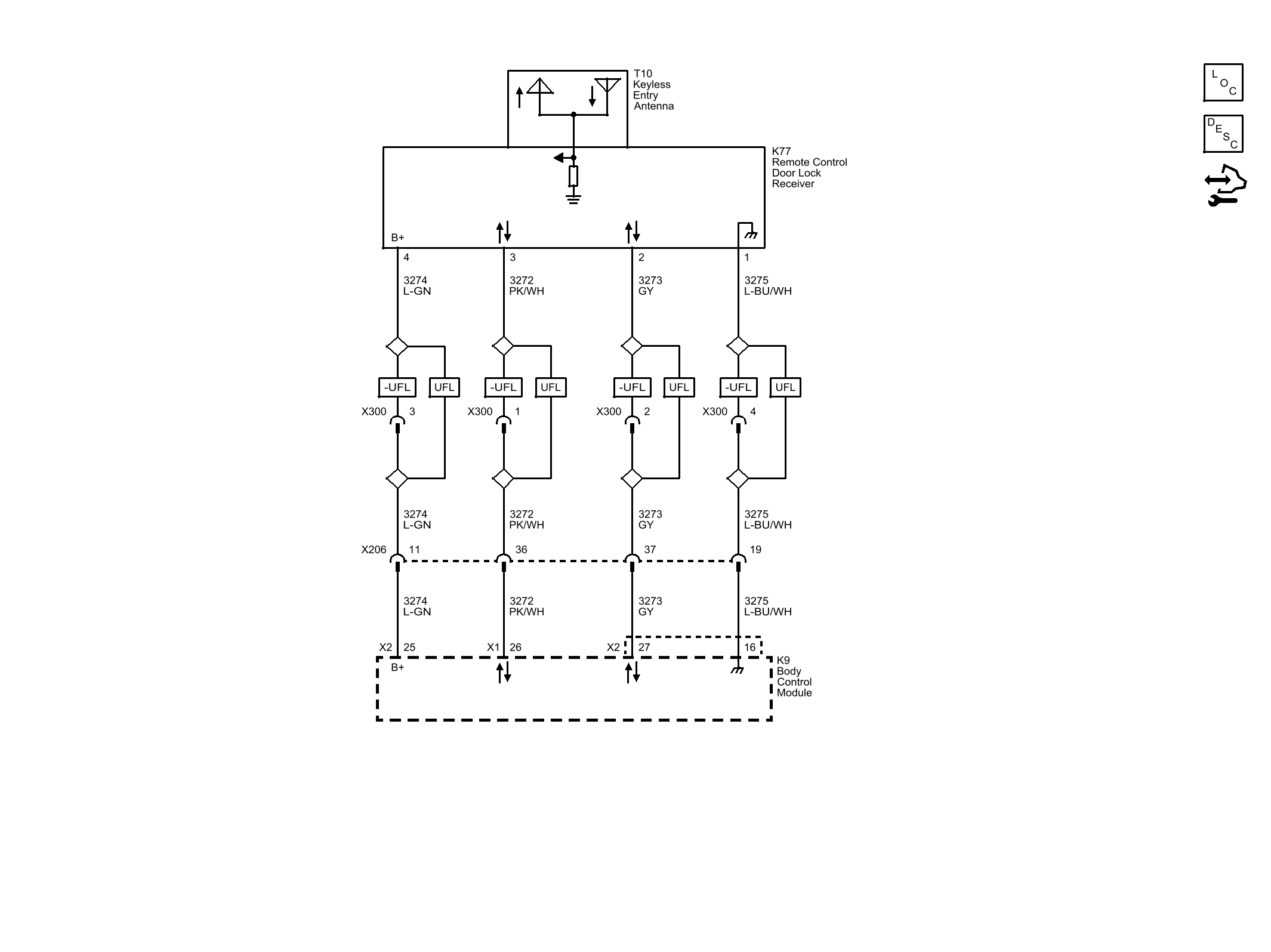

Fig 1: Keyless Entry Wiring Schematic
GM3424635Courtesy of GENERAL MOTORS COMPANY
