GMC
›
2014
›
Terrain SLT, 4D Utility
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Body Control System Wiring Schematics
›
Module Power, Grounds, and Subsystem References (1 of 4) Wiring Schematics
Module Power, Grounds, and Subsystem References (1 of 4) Wiring Schematics

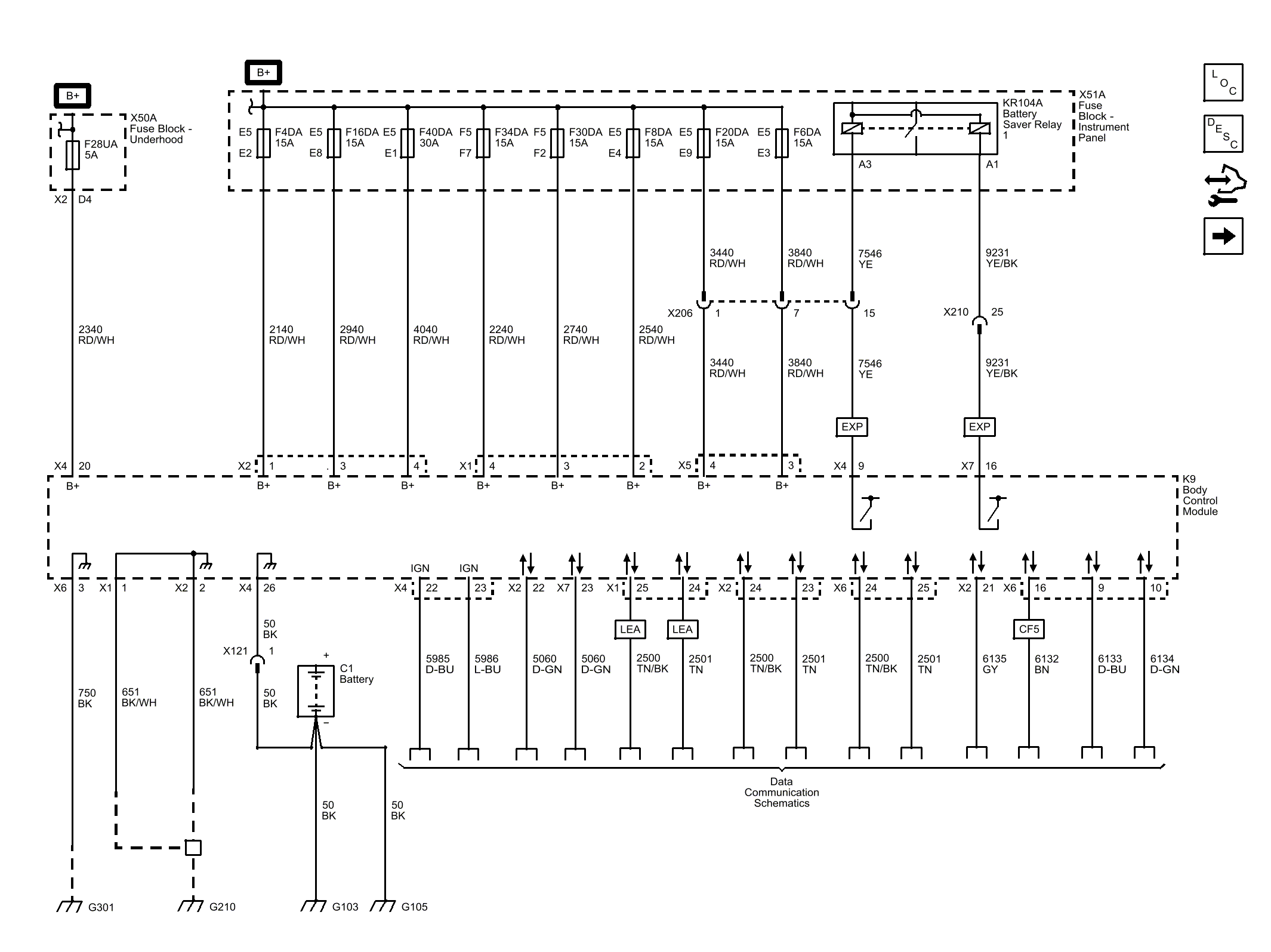

Fig 1: Module Power, Grounds, and Subsystem References (1 of 4) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
