Chassis Expansion Bus Wiring Schematics

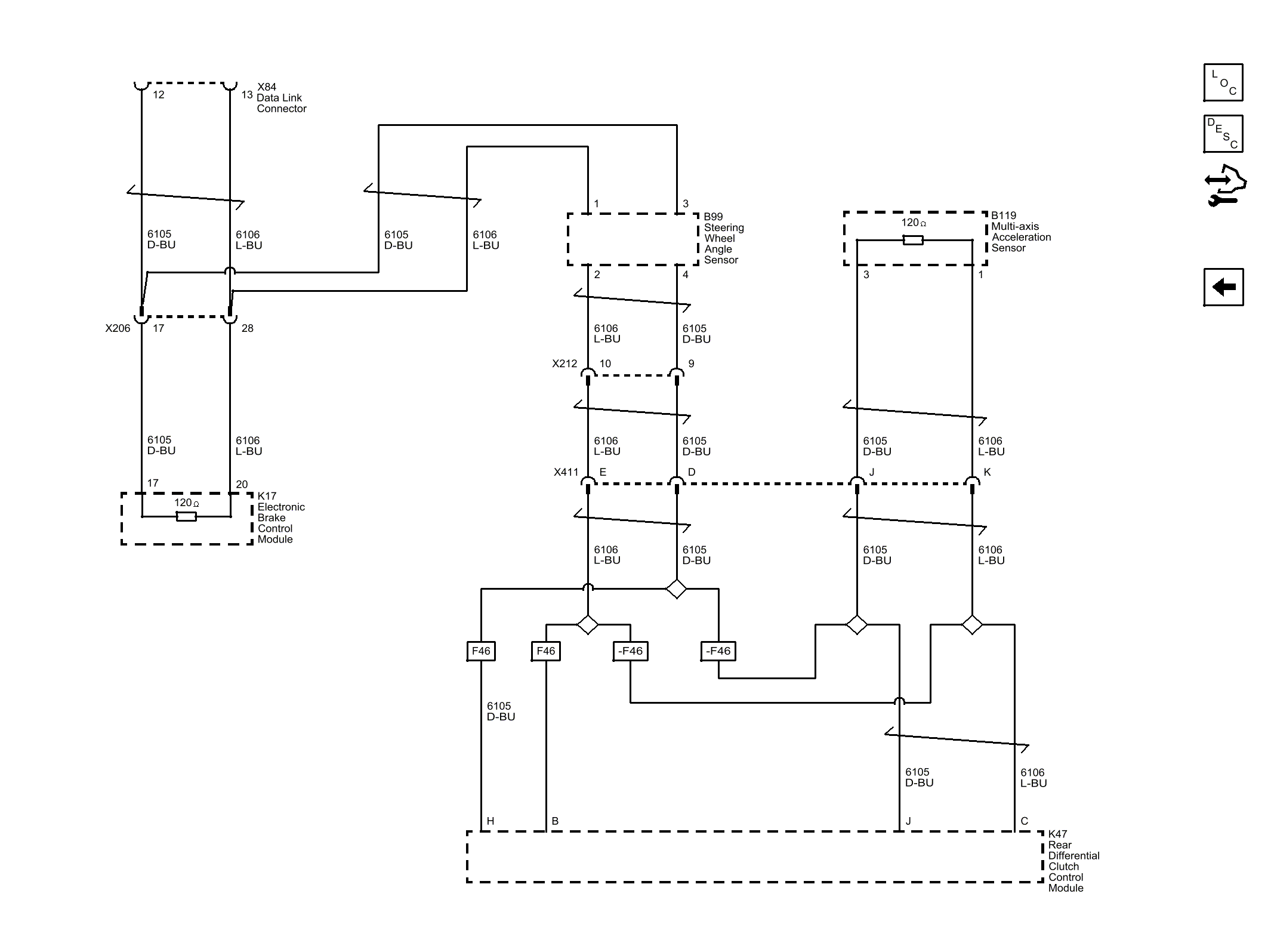

Fig 1: Chassis Expansion Bus Wiring Schematics
GM3423764Courtesy of GENERAL MOTORS COMPANY
