Enable Serial Data Wiring Schematics

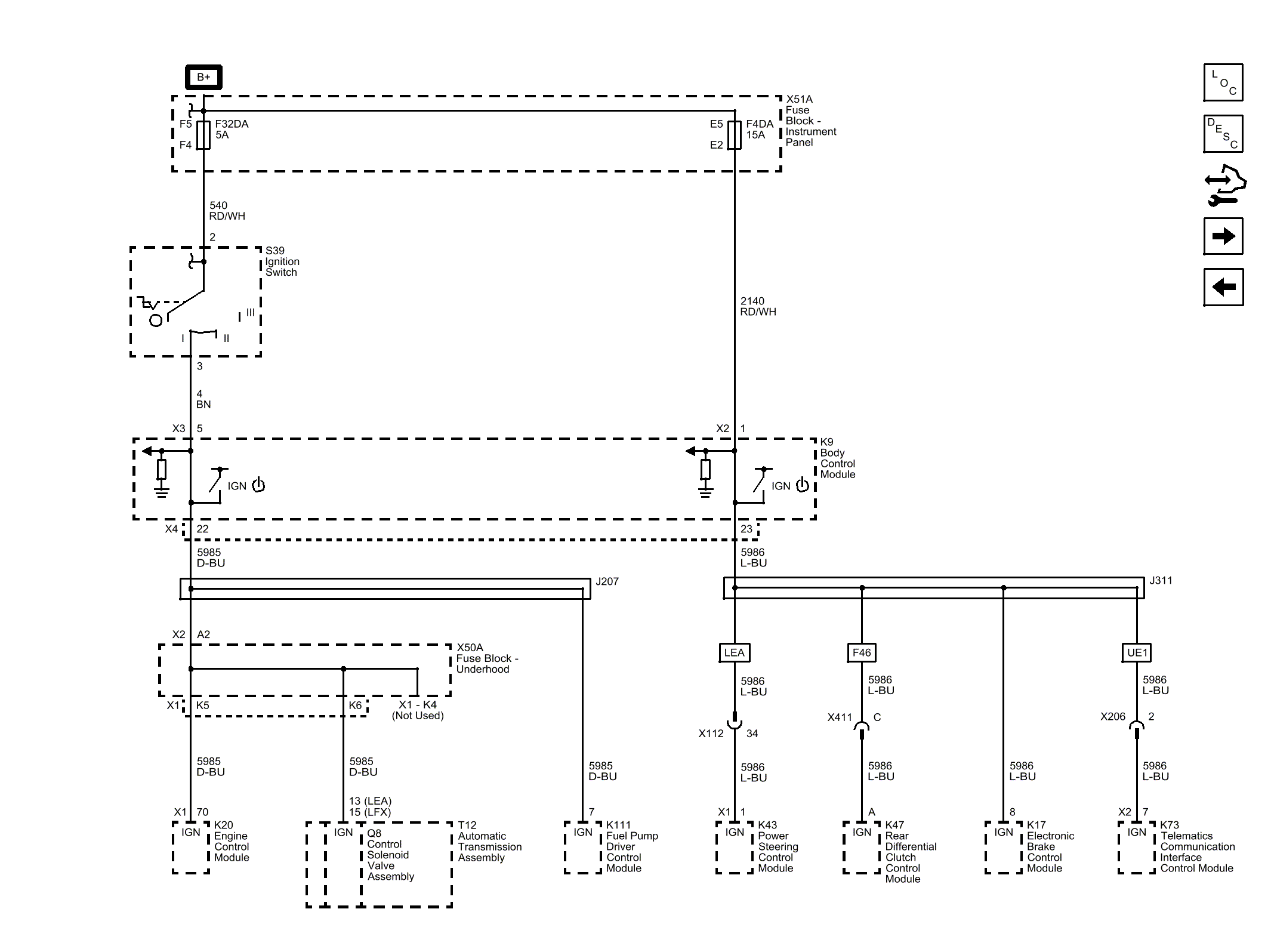

Fig 1: Enable Serial Data Wiring Schematics
GM3423767Courtesy of GENERAL MOTORS COMPANY
