Radio/HVAC Linear Interconnect Network (LIN) Bus and CAN Graphical Interface Wiring Schematics

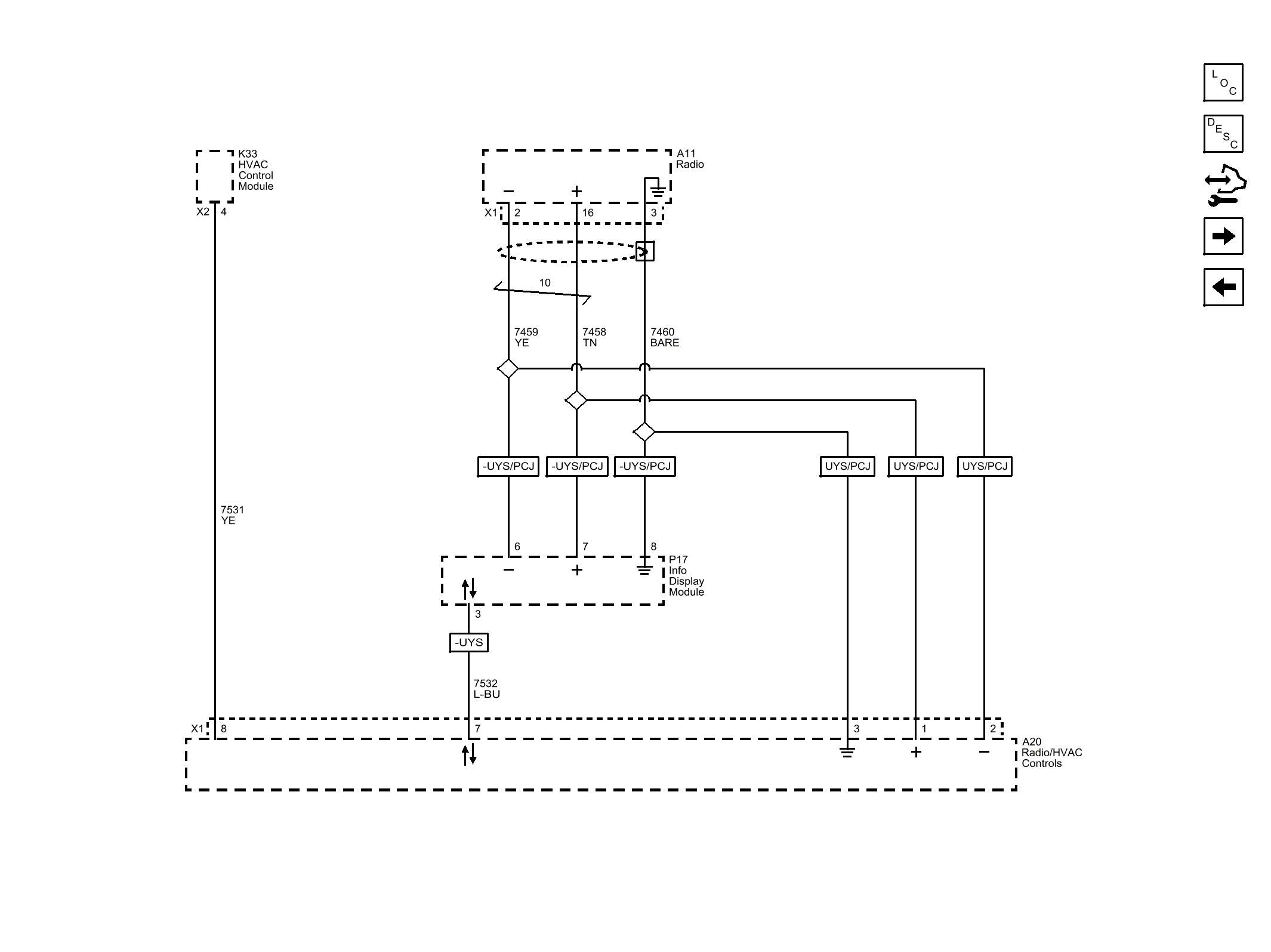

Fig 1: Radio/HVAC Linear Interconnect Network (LIN) Bus and CAN Graphical Interface Wiring Schematics

Courtesy of GENERAL MOTORS COMPANY
