Cruise Control Switch Replacement (NP5)

WARNING: This page is about a different car, the 2012 GMC Terrain and 2012 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

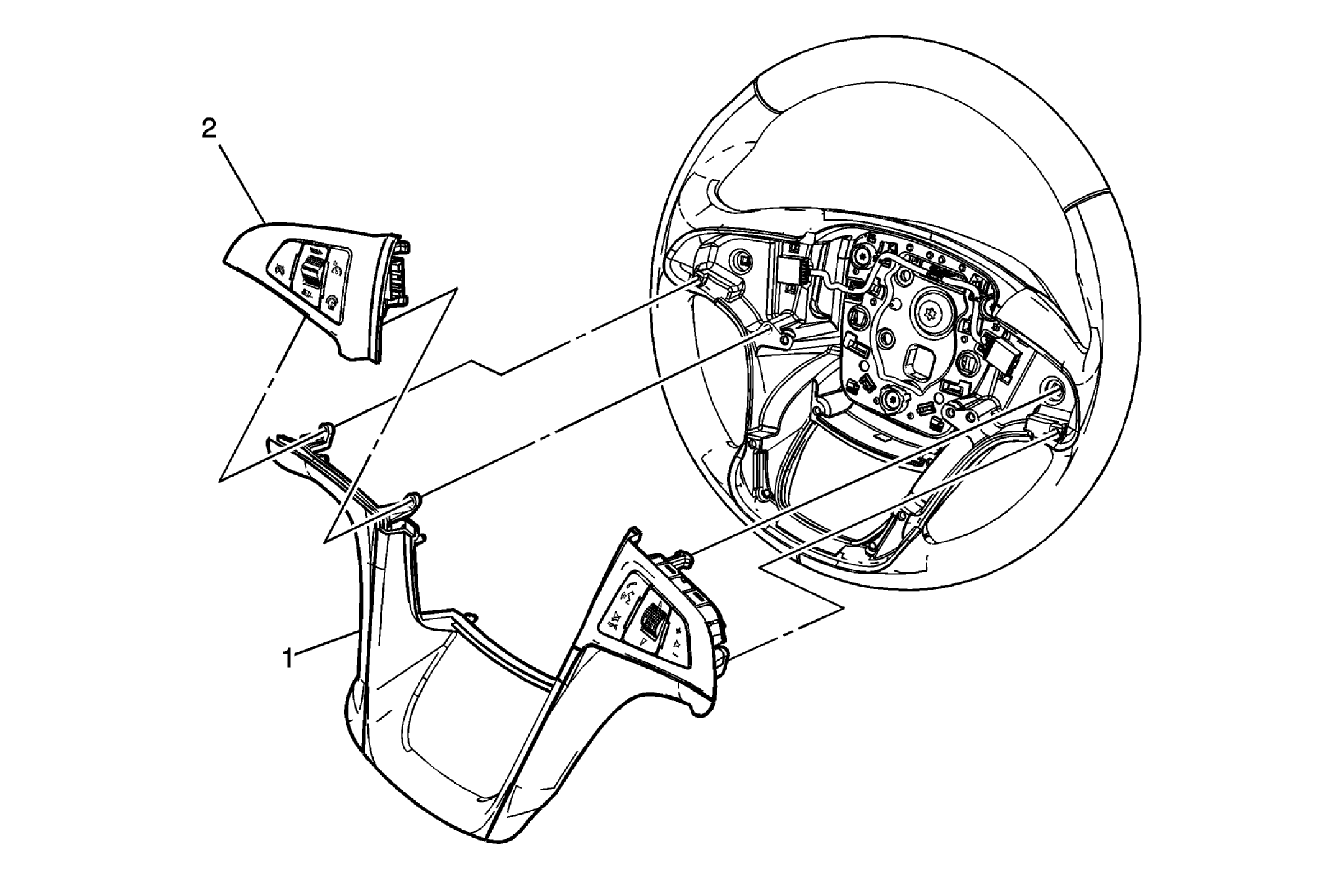

Fig 1: Cruise Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Spoke Cover
2	Cruise Control Switch Procedure Use flat bladed tool to release the switch from steering wheel. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .

Steering Wheel Spoke Cover

Cruise Control Switch

Procedure

Use flat bladed tool to release the switch from steering wheel.
Disconnect the electrical connector.
