Courtesy Lamp Replacement
WARNING: This page is about a different car, the 2010 GMC Terrain and 2010 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

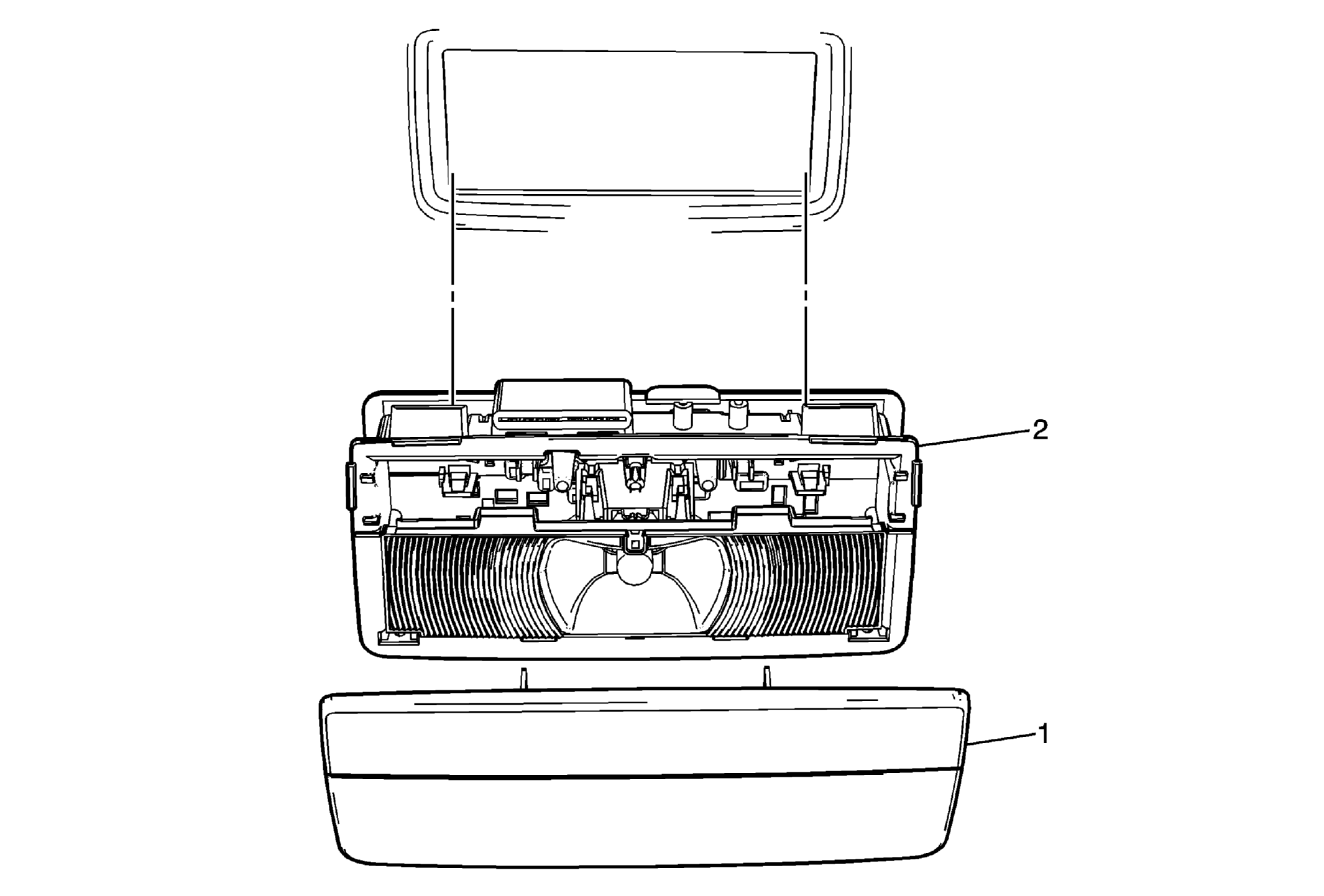

| Callout |
Component Name |
| 1 |
Courtesy Lamp Lens and Bezel
Procedure:
Using a nylon flat bladed tool release the lens and bezel. |
| 2 |
Courtesy Lamp
Procedure:
Release the retaining tabs and remove the courtesy lamp from the headliner. |
