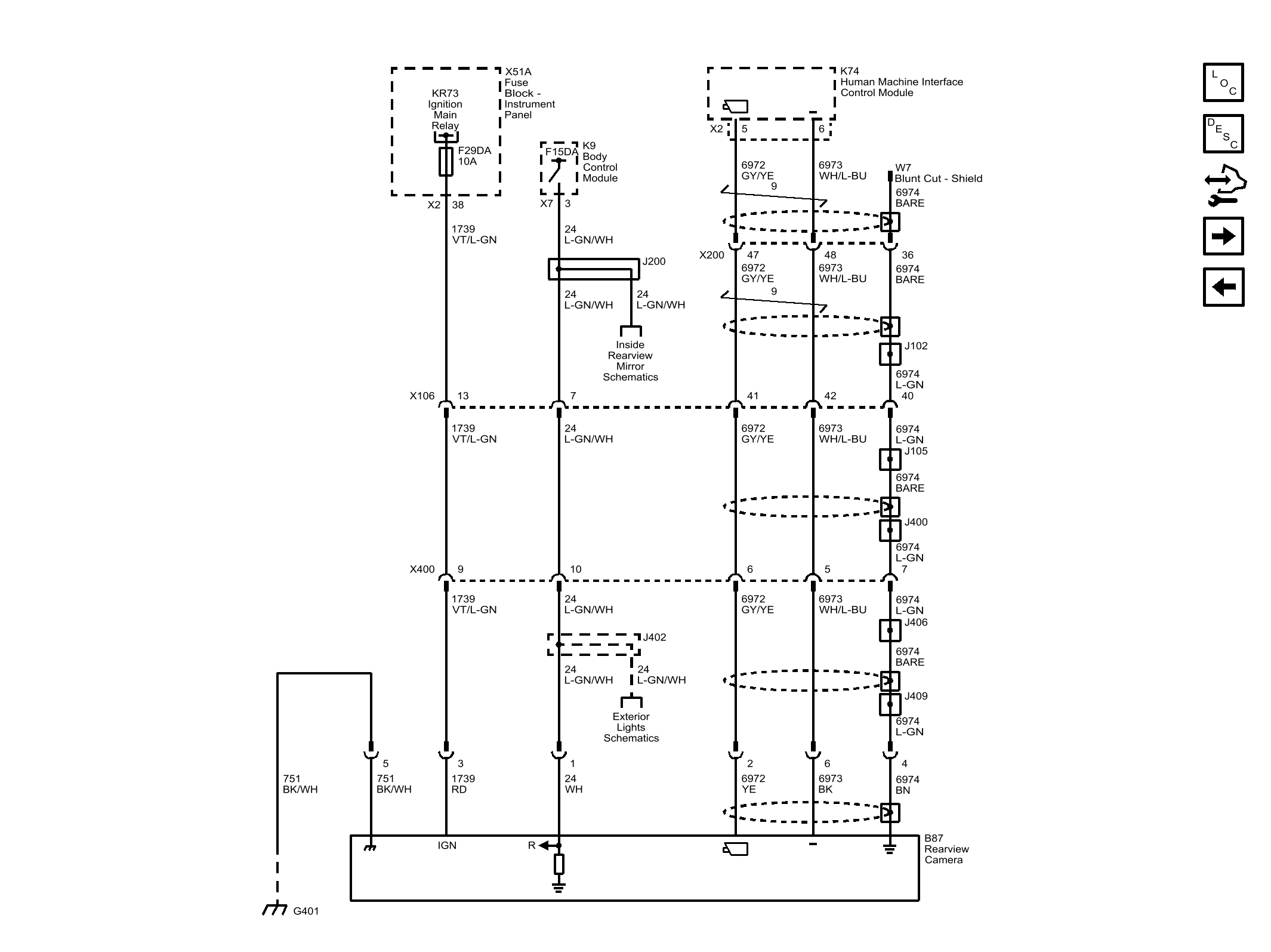

Home › GMC › 2015 › Canyon SL › Repair and Diagnosis › Accessories & Equipment › Drivers Assistance Systems - ADAS › Object Detection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Rear Camera (IO4/IO5/IO6)
