Installation Procedure

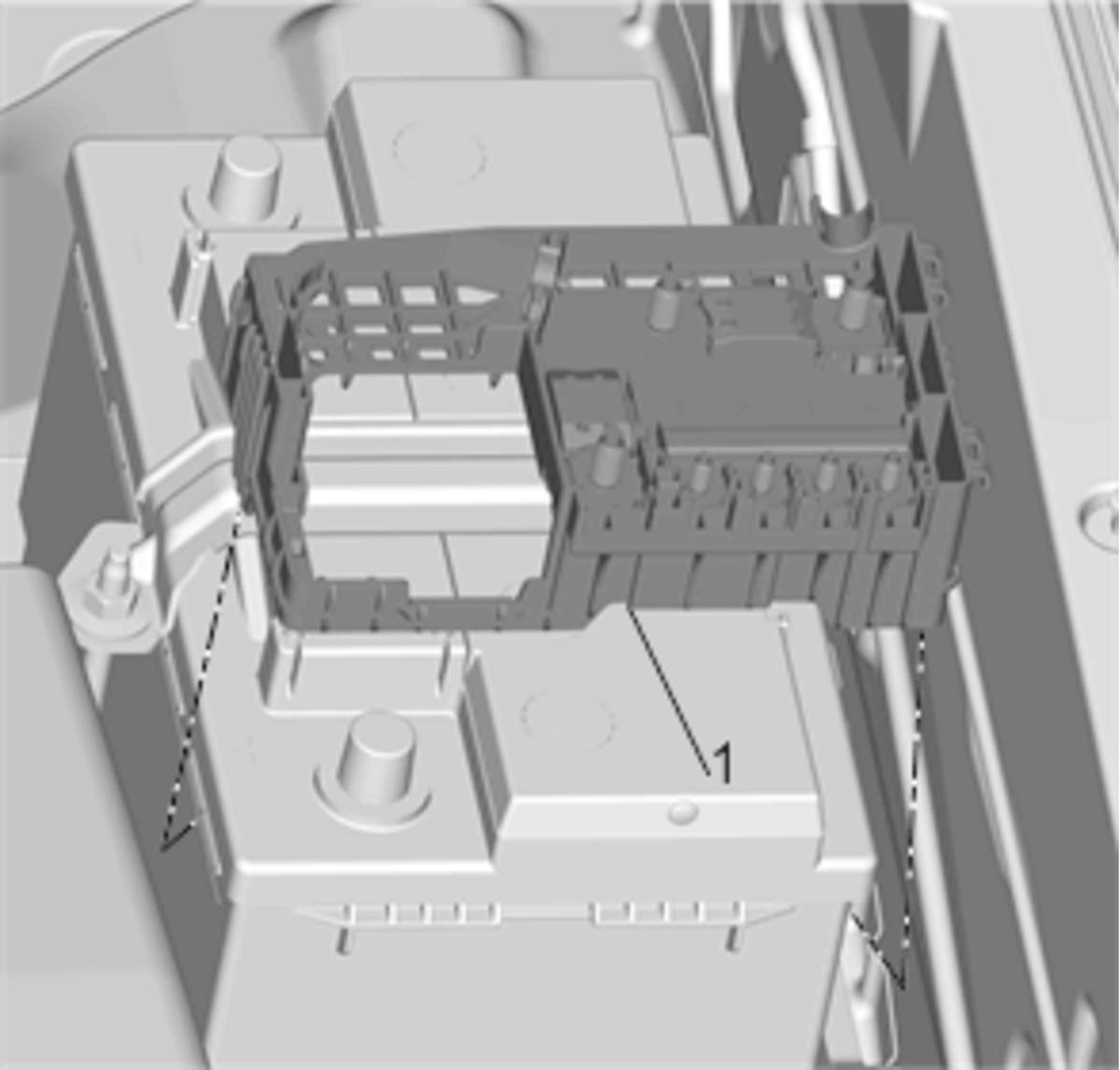

    Fig 1: Fuse Block Tabs
    GM3766066Courtesy of GENERAL MOTORS COMPANY
  1. Position the junction block and tabs (1) to the battery.

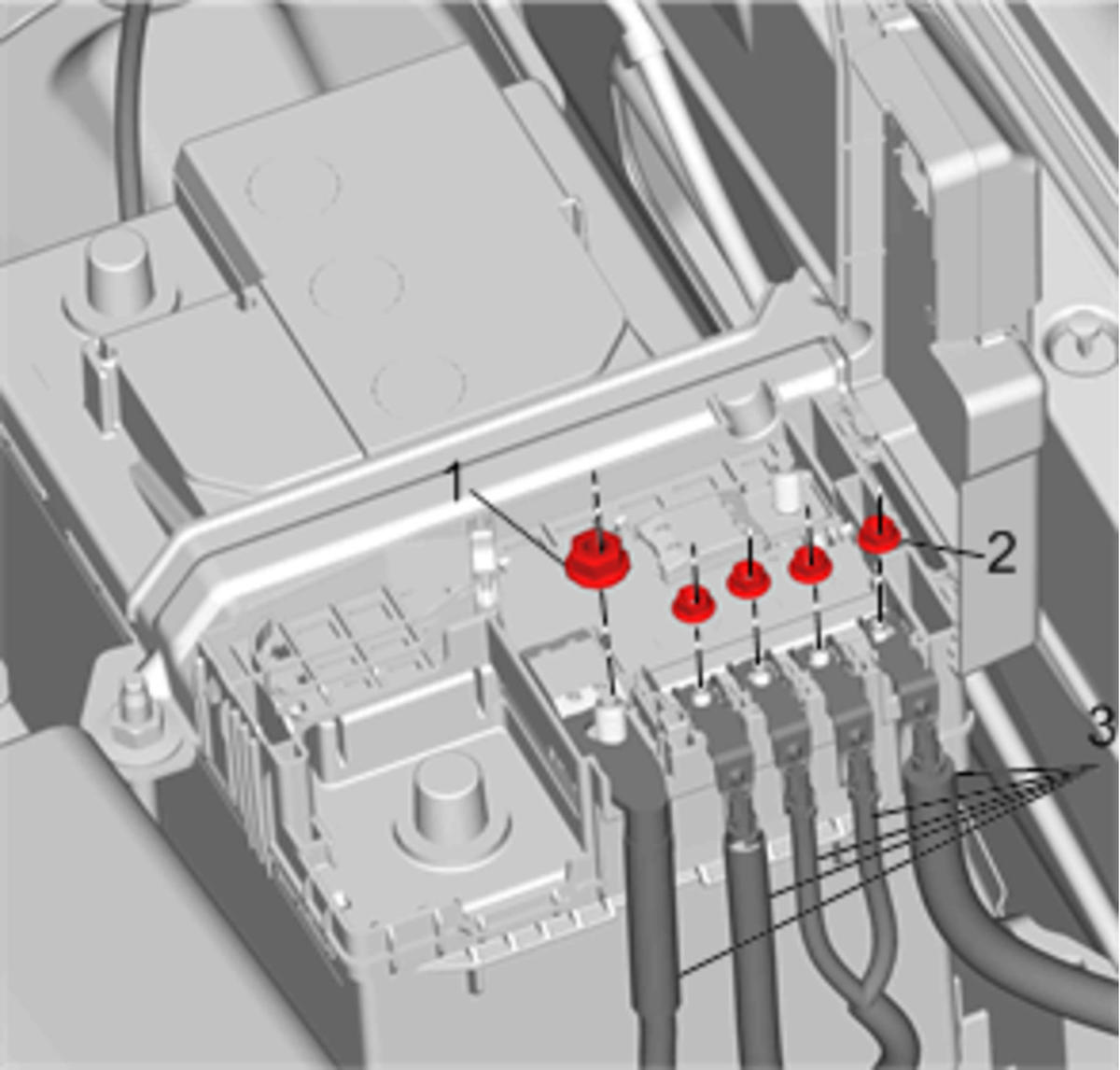

    2. Fig 2: Engine Wiring Harness Junction Block Cable Nut
    GM3766065Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Position the fuse block wiring harness terminals to the fuse block (3).
  3. Install the fuse block wiring harness terminal nuts (2) and tighten to 4.7 N.m (42 lb in).
  4. Install the engine wiring harness junction block cable nut (1) and tighten to 10 N.m (89 lb in).

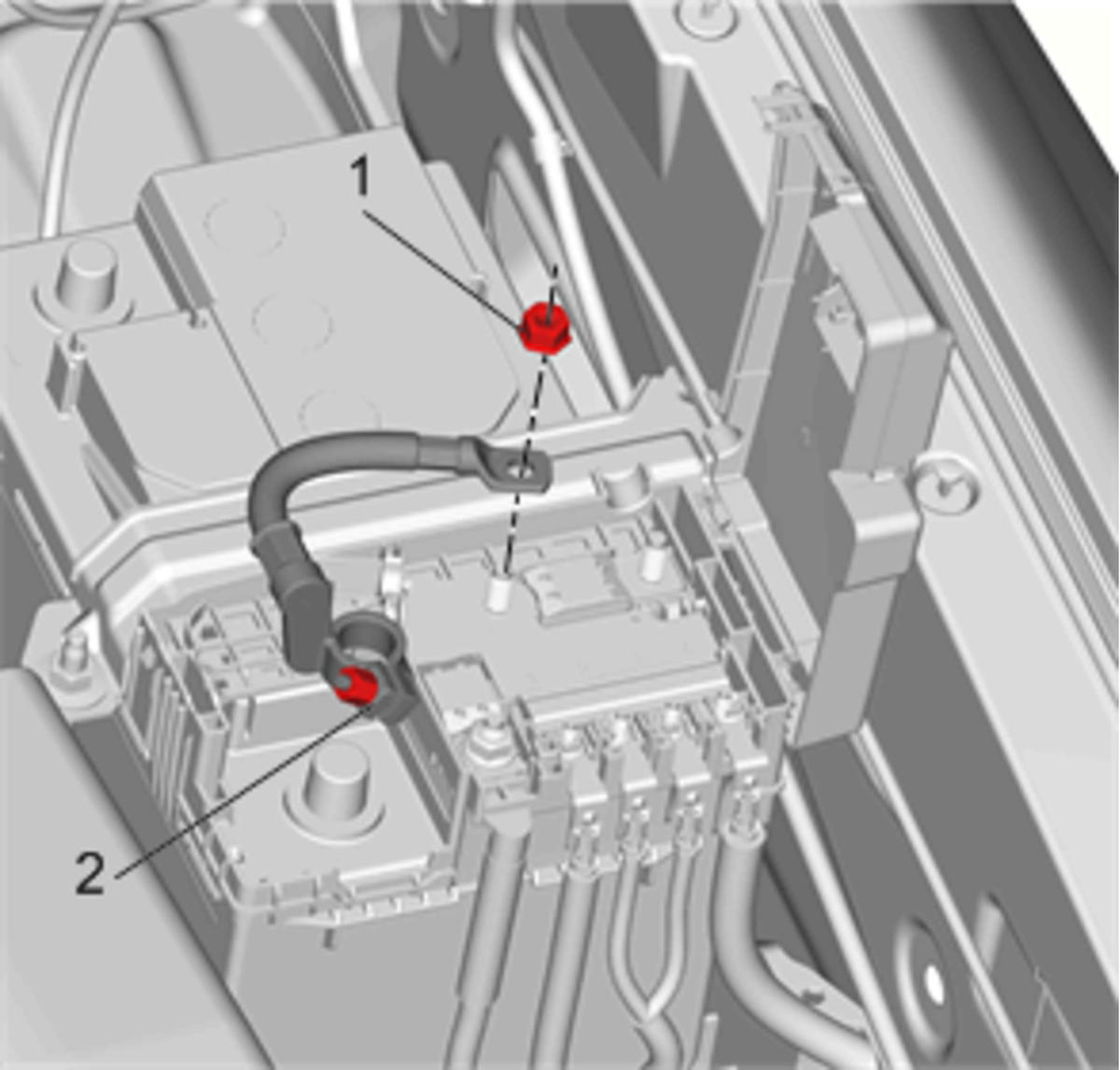

    5. Fig 3: Positive Battery Cable Nut
    GM3766064Courtesy of GENERAL MOTORS COMPANY
  5. Install the positive battery cable (2).
  6. Install the positive battery cable nut (1) and tighten to 4.7 N.m (42 lb in).

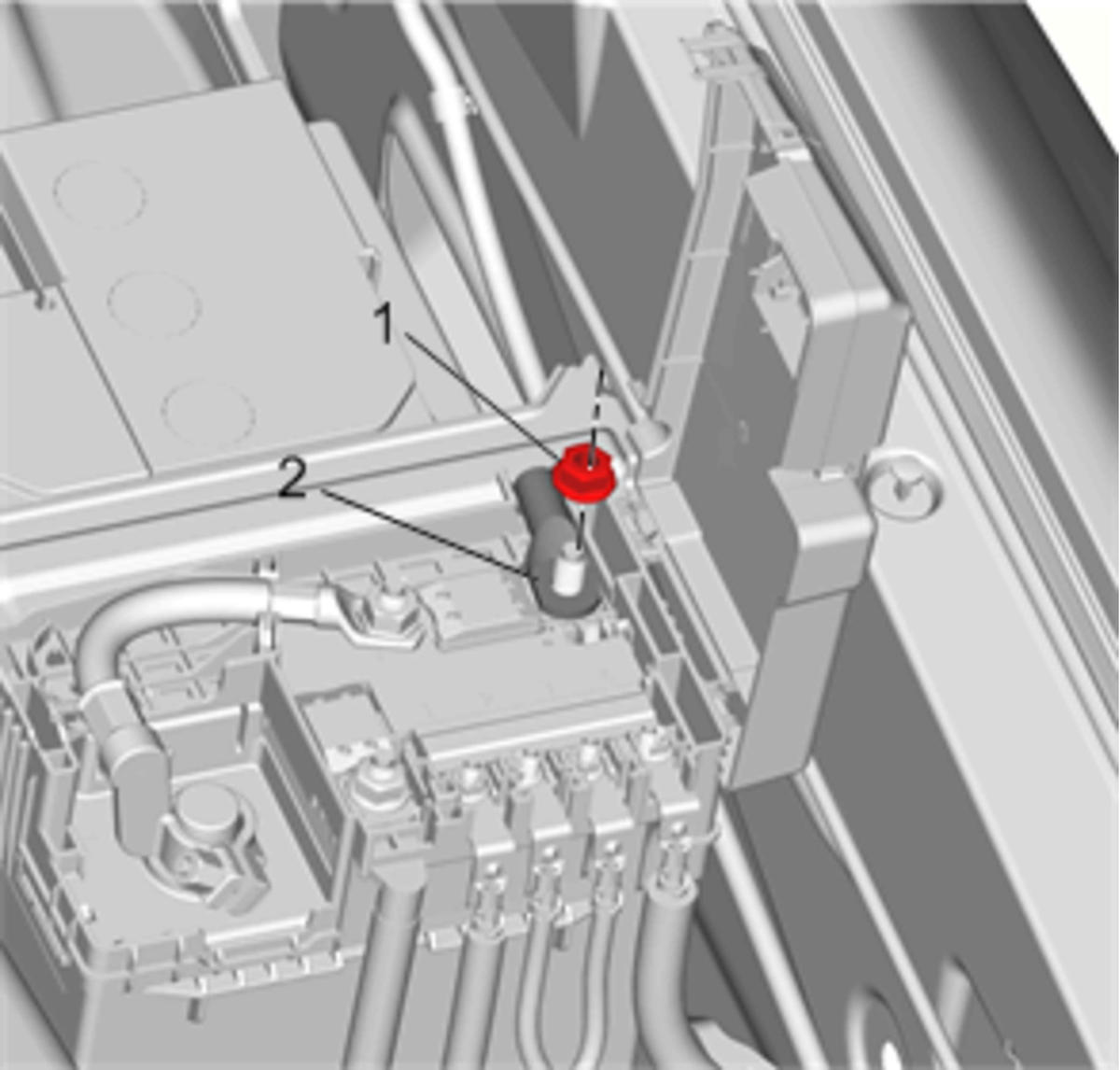

    7. Fig 4: Generator Cable And Cable Nut
    GM3766063Courtesy of GENERAL MOTORS COMPANY
  7. Install the starter and generator cable (2).
  8. Install the starter and generator cable nut (1) and tighten to 10 N.m (89 lb in).
  9. Close the fuse block cover.
  10. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
