Installation Procedure

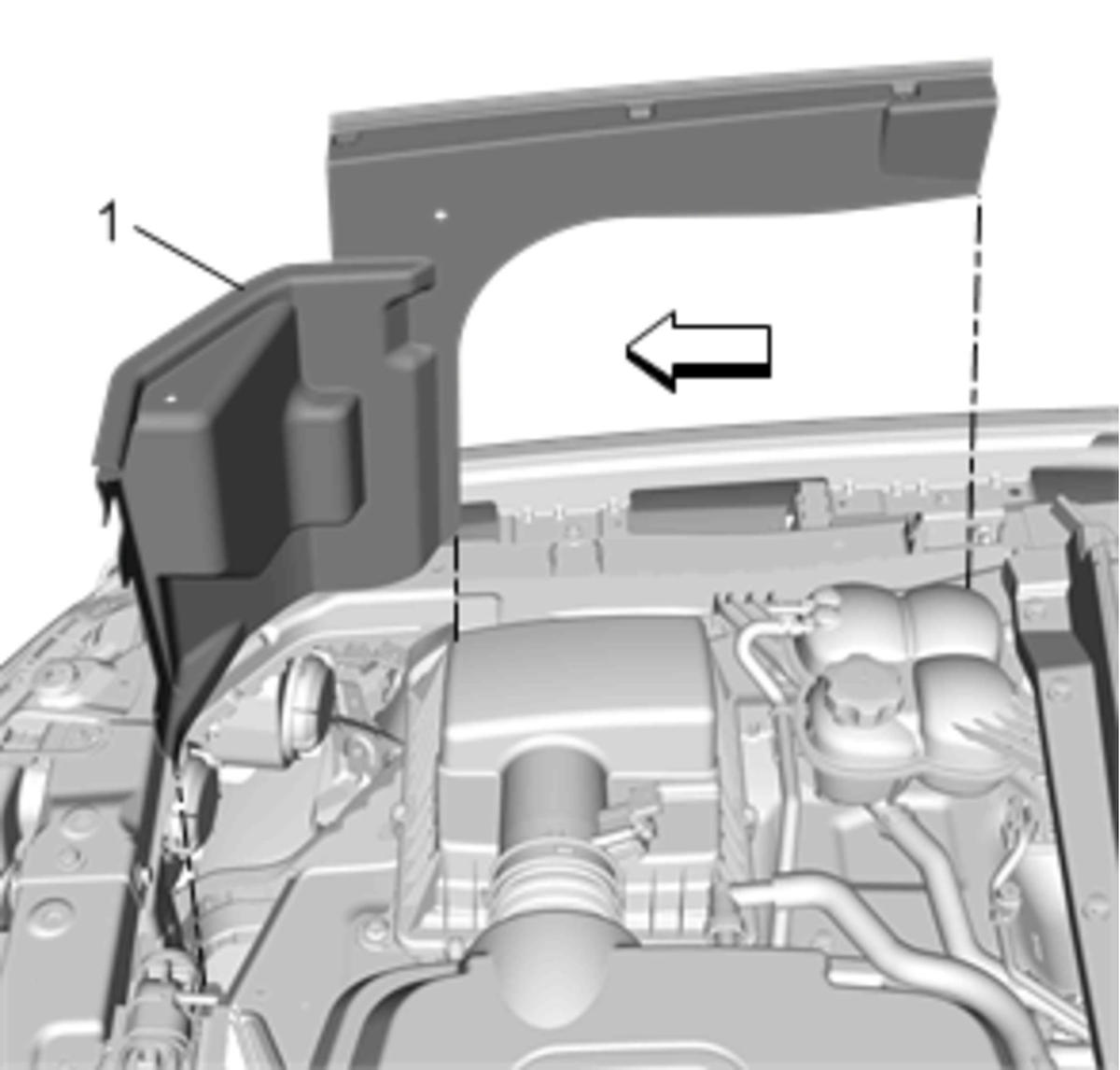

    Fig 1: Intake Air Splash Shield
    GM3789694Courtesy of GENERAL MOTORS COMPANY
  1. Install the intake air splash shield (1) to the vehicle.

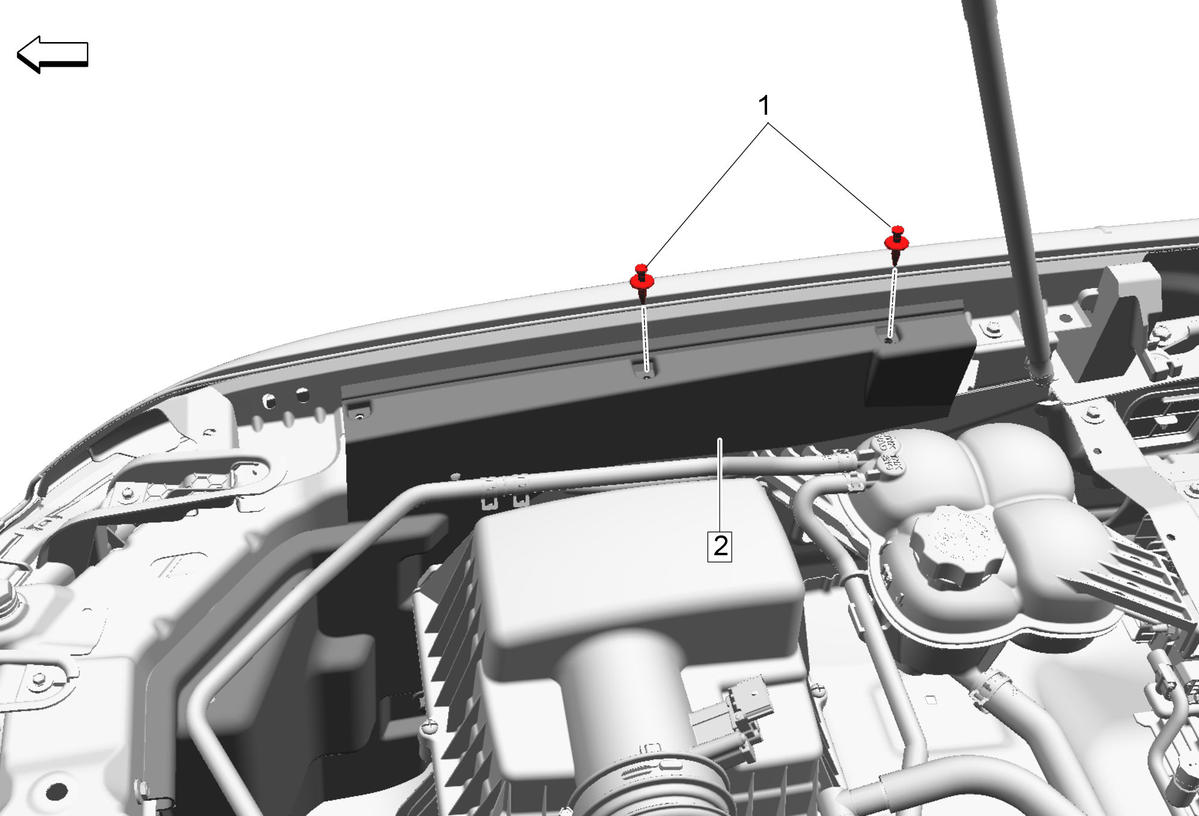

    2. Fig 2: Intake Air Splash Shield Retainers And Intake Air Splash Shield
    GM3789684Courtesy of GENERAL MOTORS COMPANY
  2. Install the intake air splash shield retainers (1) to the intake air splash shield (2).

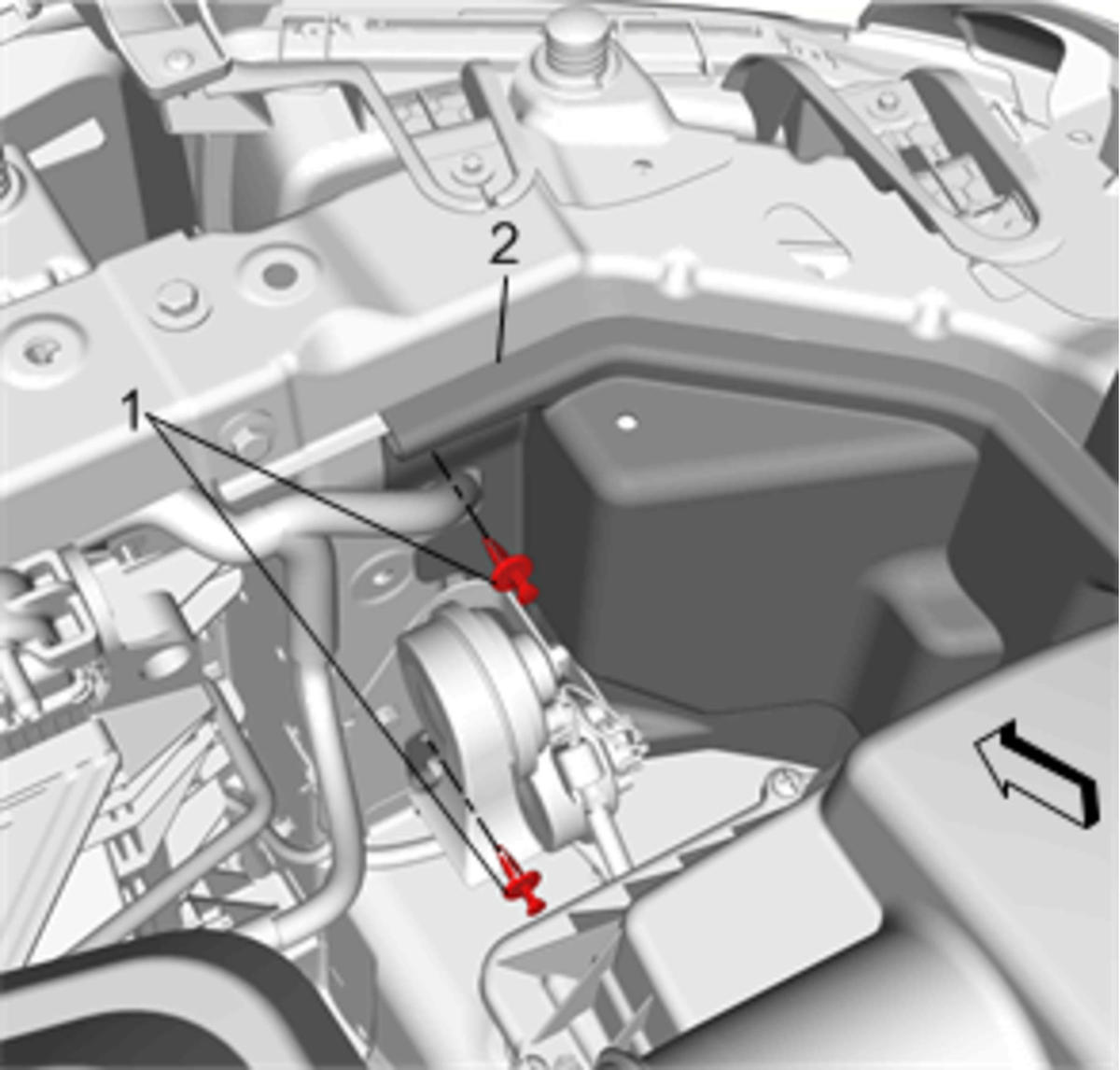

    3. Fig 3: Intake Air Splash Shield Retainers And Intake Air Splash Shield
    GM3789641Courtesy of GENERAL MOTORS COMPANY
  3. Install the intake air splash shield retainers (1) to the intake air splash shield (2).
  4. Install the intake air baffle. Refer to Intake Air Baffle Replacement .
  5. Install the radiator vent outlet hose. Refer to Radiator Vent Outlet Hose Replacement .
