Knock Sensor Replacement (Rear)

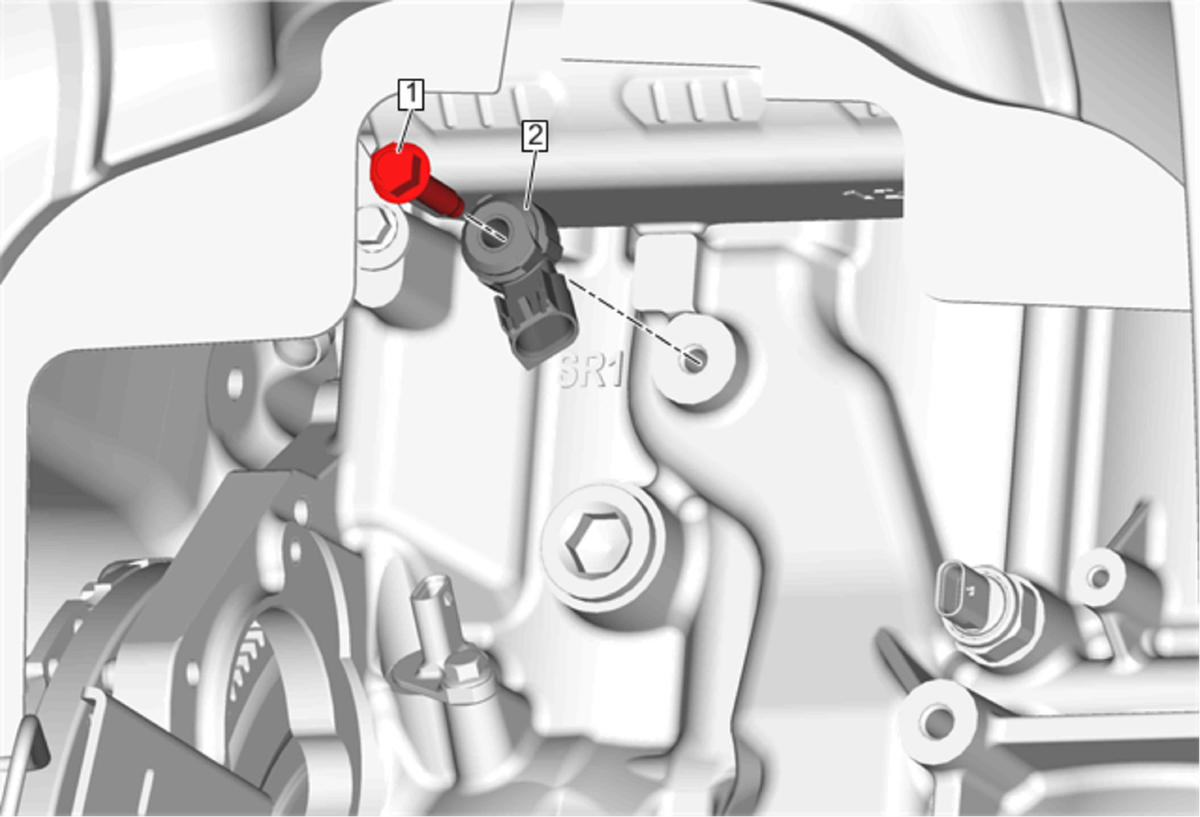

Fig 1: Knock Sensor (Rear)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Remove the right side front wheelhouse liner. Front Wheelhouse Liner Replacement
1	Knock Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Knock Sensor Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the right side front wheelhouse liner. Front Wheelhouse Liner Replacement

Knock Sensor Fastener

CAUTION:

Tighten
25 N.m (18 lb ft)

Knock Sensor
Procedure
Disconnect the electrical connector.
