Antilock Brake System Wiring Schematics
›
Stability Control
Stability Control

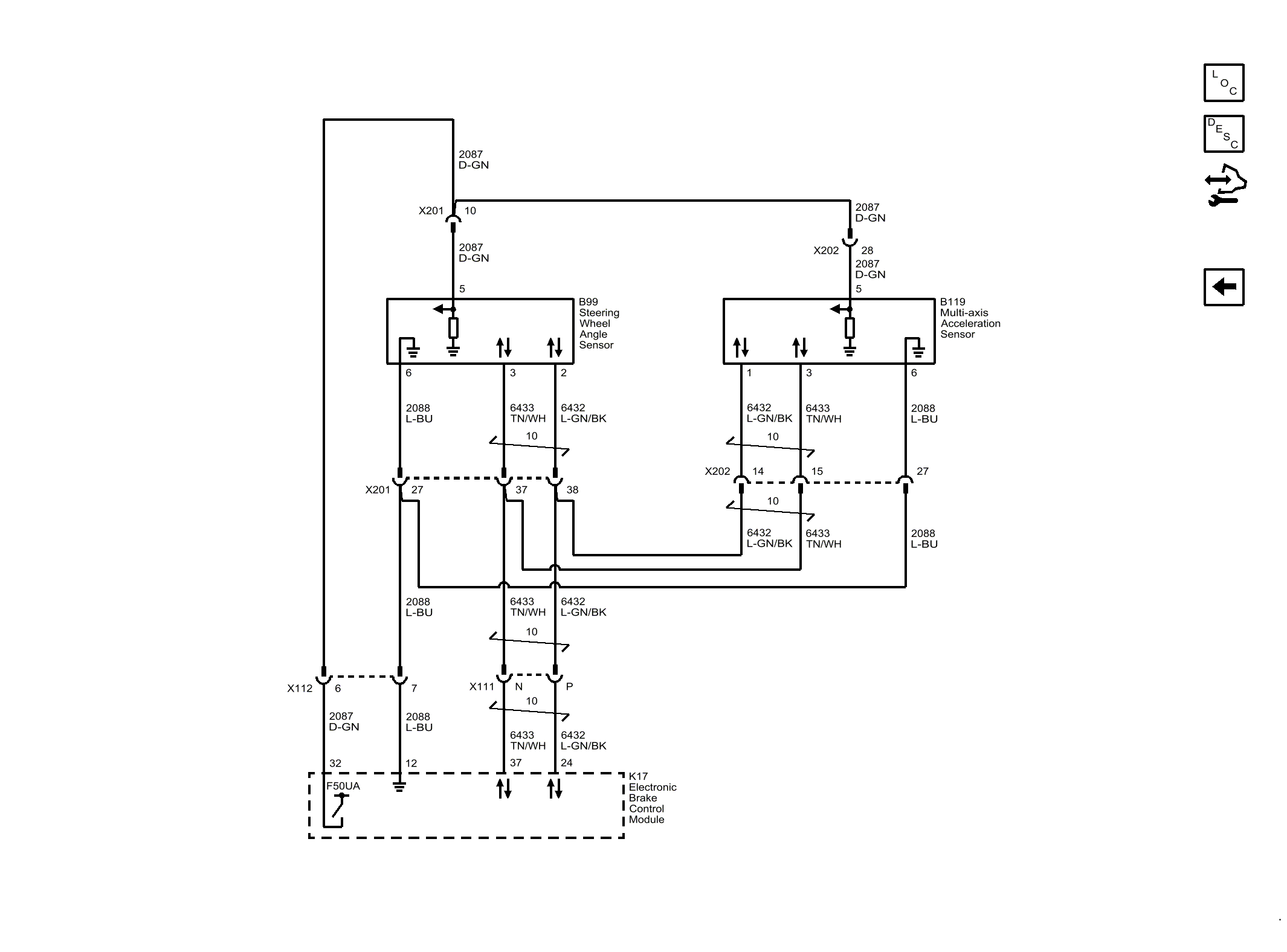

Fig 1: Stability Control
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
