Installation Procedure

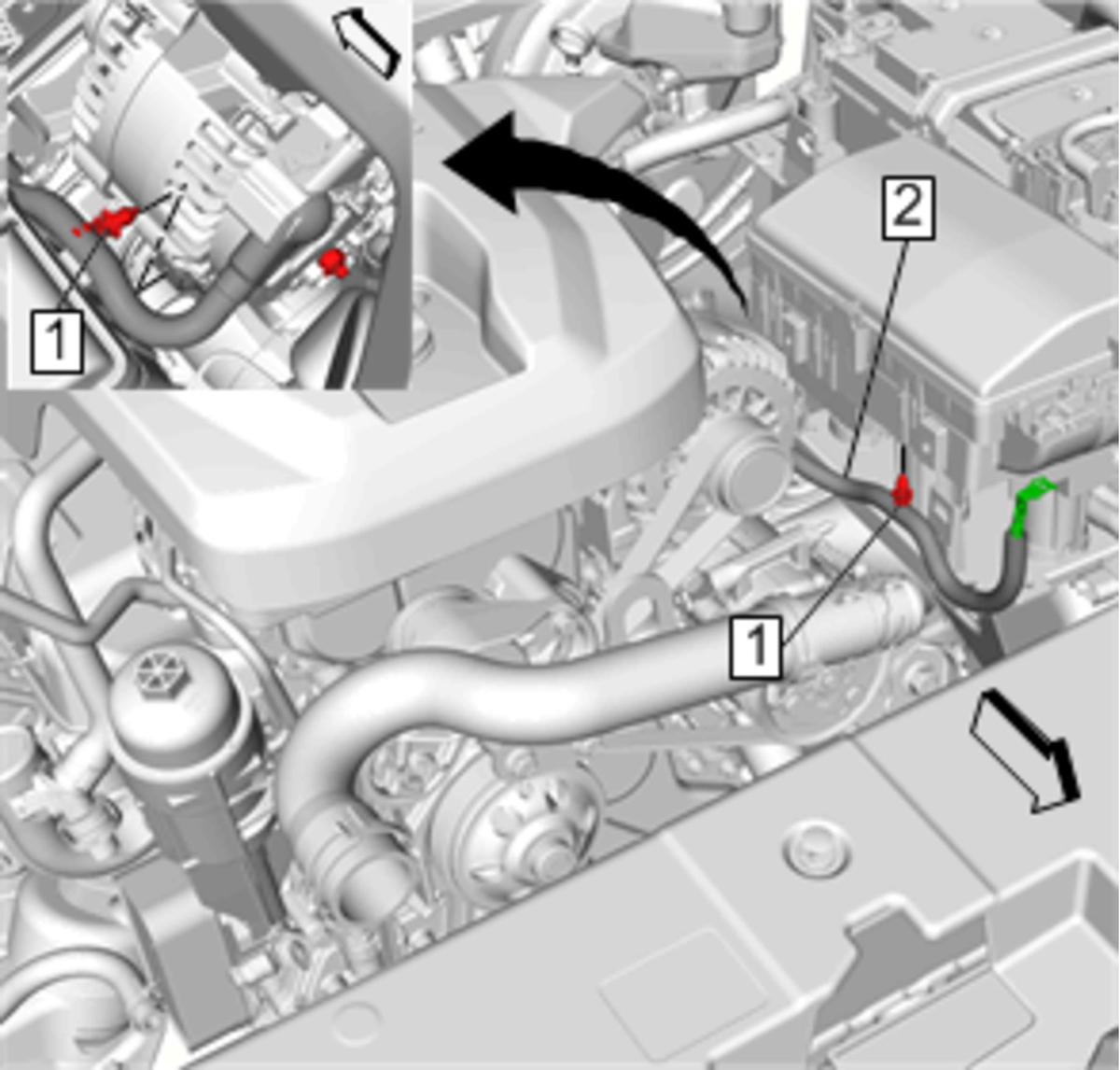

    Fig 1: Battery Positive Cable Retainer
    GM4122554Courtesy of GENERAL MOTORS COMPANY
  1. Connect Battery Positive Cable Retainer (1).

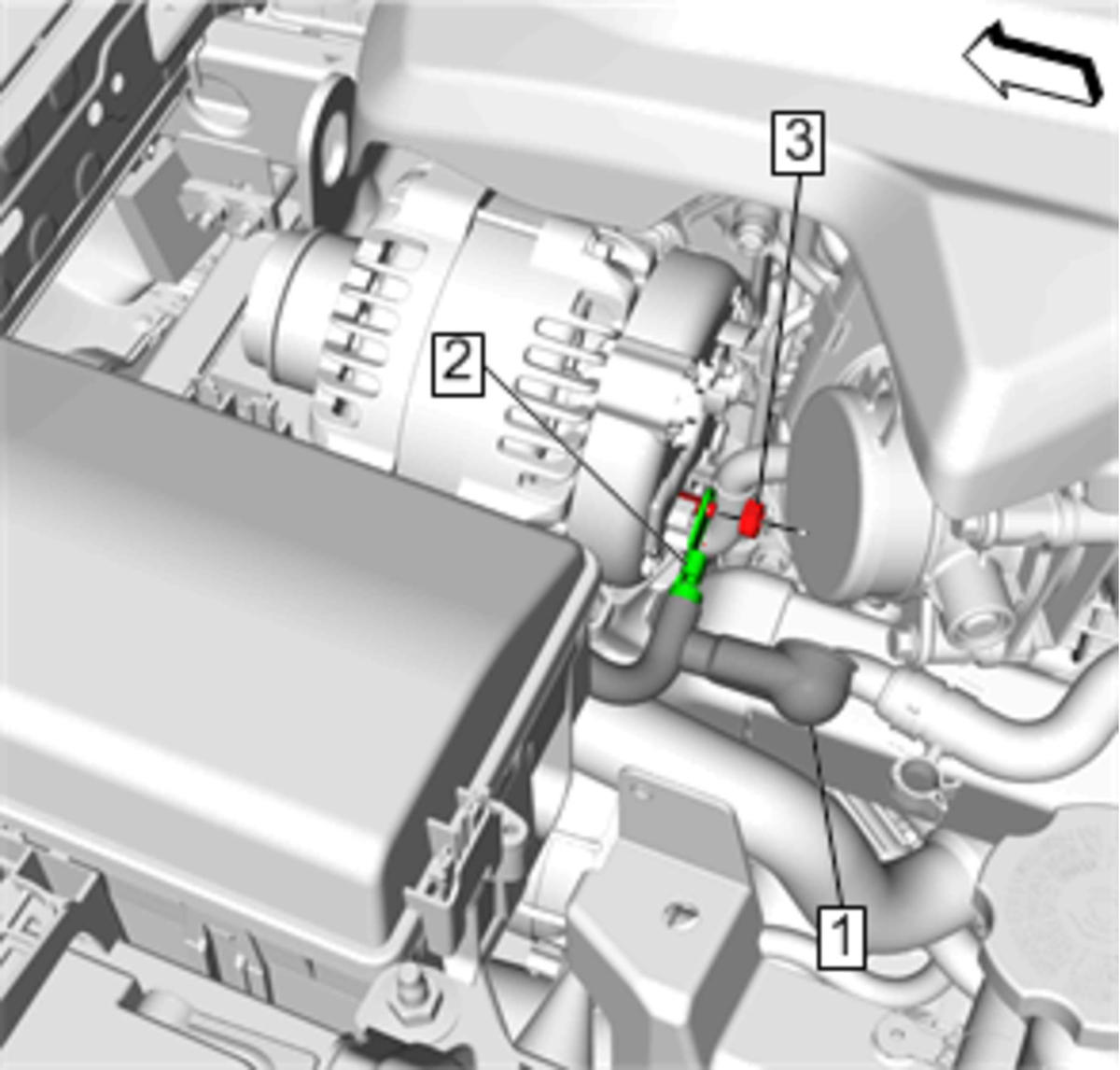

    2. Fig 2: Positive Battery Cable And Nut
    GM4122546Courtesy of GENERAL MOTORS COMPANY
  2. Install Battery Positive Cable (2)
    3. CAUTION:

    Refer to Fastener Caution

  3. Install Battery Positive Cable Nut (3) and tighten 15 N.m (11 lb ft)
  4. Install the positive battery cable protective cap to the generator terminal (1).

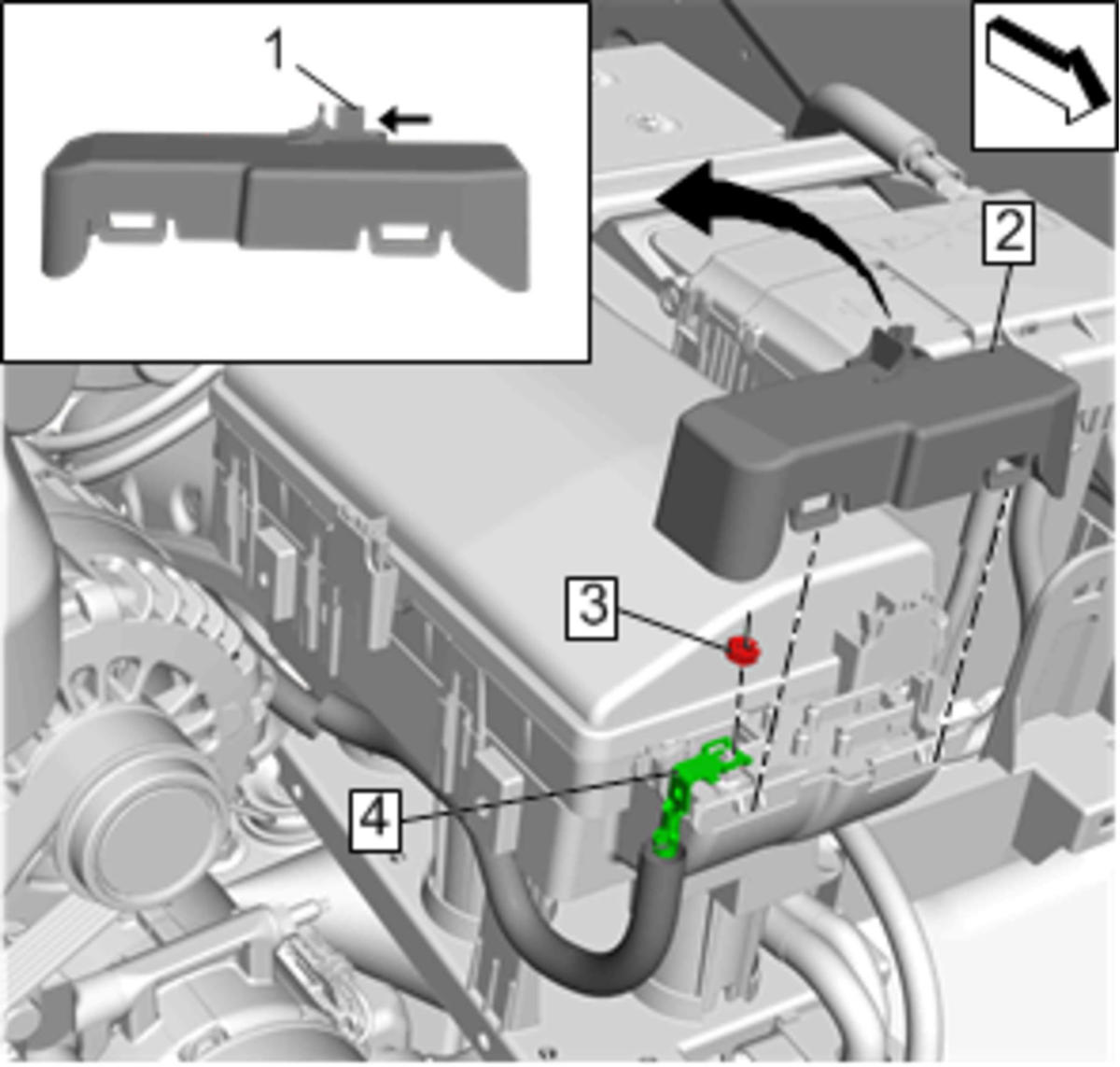

    5. Fig 3: Engine Wiring Harness Junction Block Cover Release Tab
    GM4122593Courtesy of GENERAL MOTORS COMPANY
  5. Install Battery Positive Cable (4)
  6. Install Battery Positive Cable Nut (3) Install and tighten 13 N.m (115 lb in)
  7. Install Engine Wiring Harness Junction Block Cover (2).
  8. Install Charge Air Cooler Outlet Duct Replacement .
  9. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
