Installation Procedure

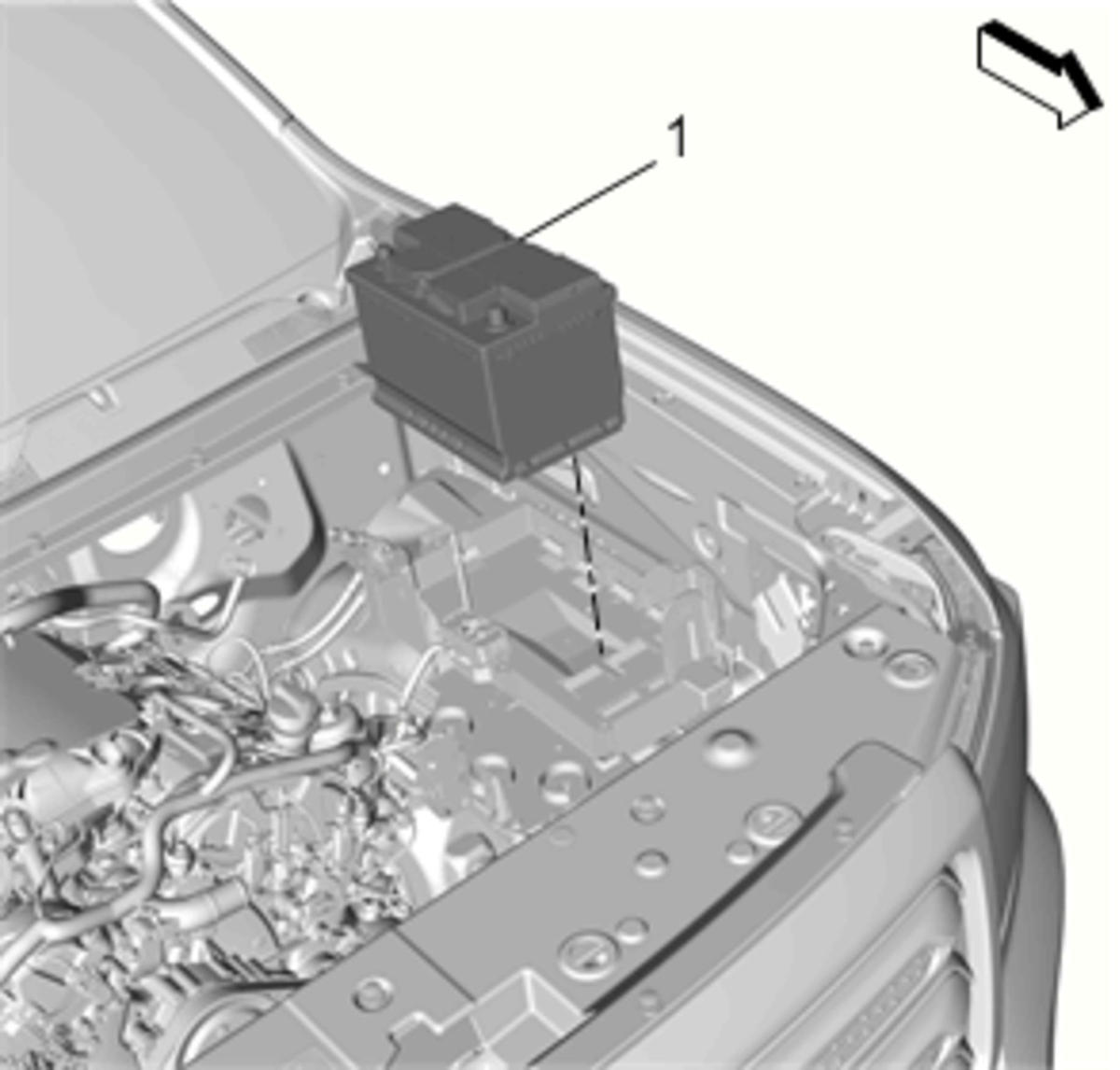

    Fig 1: Battery
    GM3807220Courtesy of GENERAL MOTORS COMPANY
  1. Position the battery (1) onto the battery tray.
    2. Fig 2: Battery Hold Down Retainer Rod And Battery Retainer
    GM3807344Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the battery retainer (2) into position on the battery and tighten the rod fastener (1) to 22 N.m (16 lb ft).
    3. Fig 3: Battery Retainer Fastener And Battery Retainer Brace
    GM3807219Courtesy of GENERAL MOTORS COMPANY
  3. Attach the battery retainer brace (2), onto the battery hold down rod, and tighten the fastener (1) to 22 N.m (16 lb ft).
    4. Fig 4: Battery Fuse Block Retaining Tabs
    GM3807217Courtesy of GENERAL MOTORS COMPANY
  4. Install the battery fuse block (2), to the battery, with the retaining tabs (1).
    5. Fig 5: Battery Fuse Block Cover
    GM3807216Courtesy of GENERAL MOTORS COMPANY
  5. Install the battery positive cable clamp to the battery post and tighten the fastener (2) to 4.7 N.m (42 lb in).
  6. Close the battery fuse block cover (1).
  7. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
