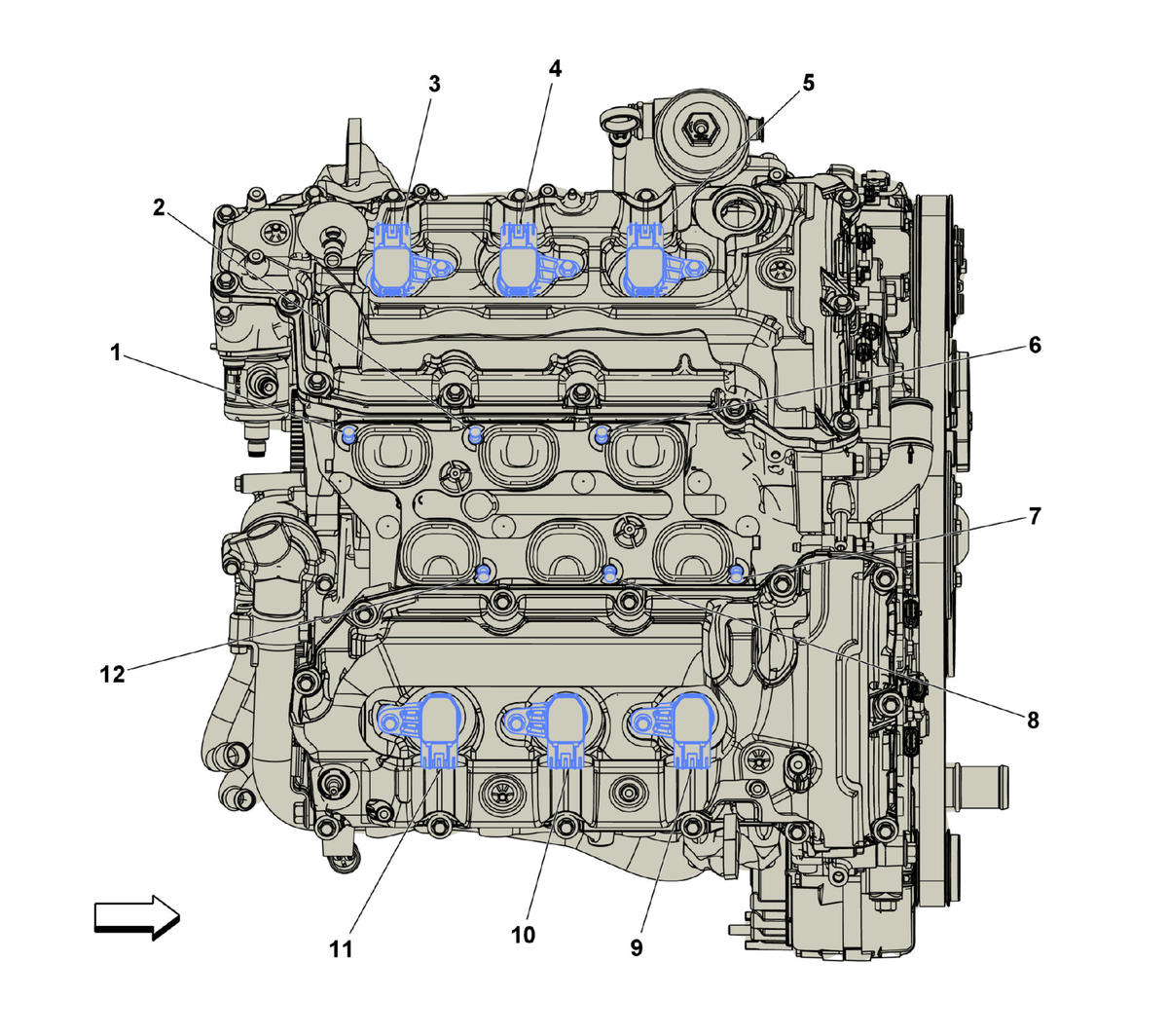

Top of Engine Components (LFX)
Top of Engine Components (LFX)
| Items |
|---|
| 1. Q17F Fuel Injector 6 (LFX) Q17F Fuel Injector 6 (LFX) |
| 2. Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LFX) |
| 3. T8F Ignition Coil 6 (LFX) T8F Ignition Coil 6 (LFX) |
| 4. T8D Ignition Coil 4 T8D Ignition Coil 4 (LFX) |
| 5. T8B Ignition Coil 2 T8B Ignition Coil 2 (LFX) |
| 6. Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LFX) |
| 7. Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LFX) |
| 8. Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LFX) |
| 9. T8A Ignition Coil 1 T8A Ignition Coil 1 (LFX) |
| 10. T8C Ignition Coil 3 T8C Ignition Coil 3 (LCV) |
| 11. T8E Ignition Coil 5 (LFX) T8E Ignition Coil 5 (LFX) |
| 12. Q17E Fuel Injector 5 (LFX) Q17E Fuel Injector 5 (LFX) |
