Installation Procedure

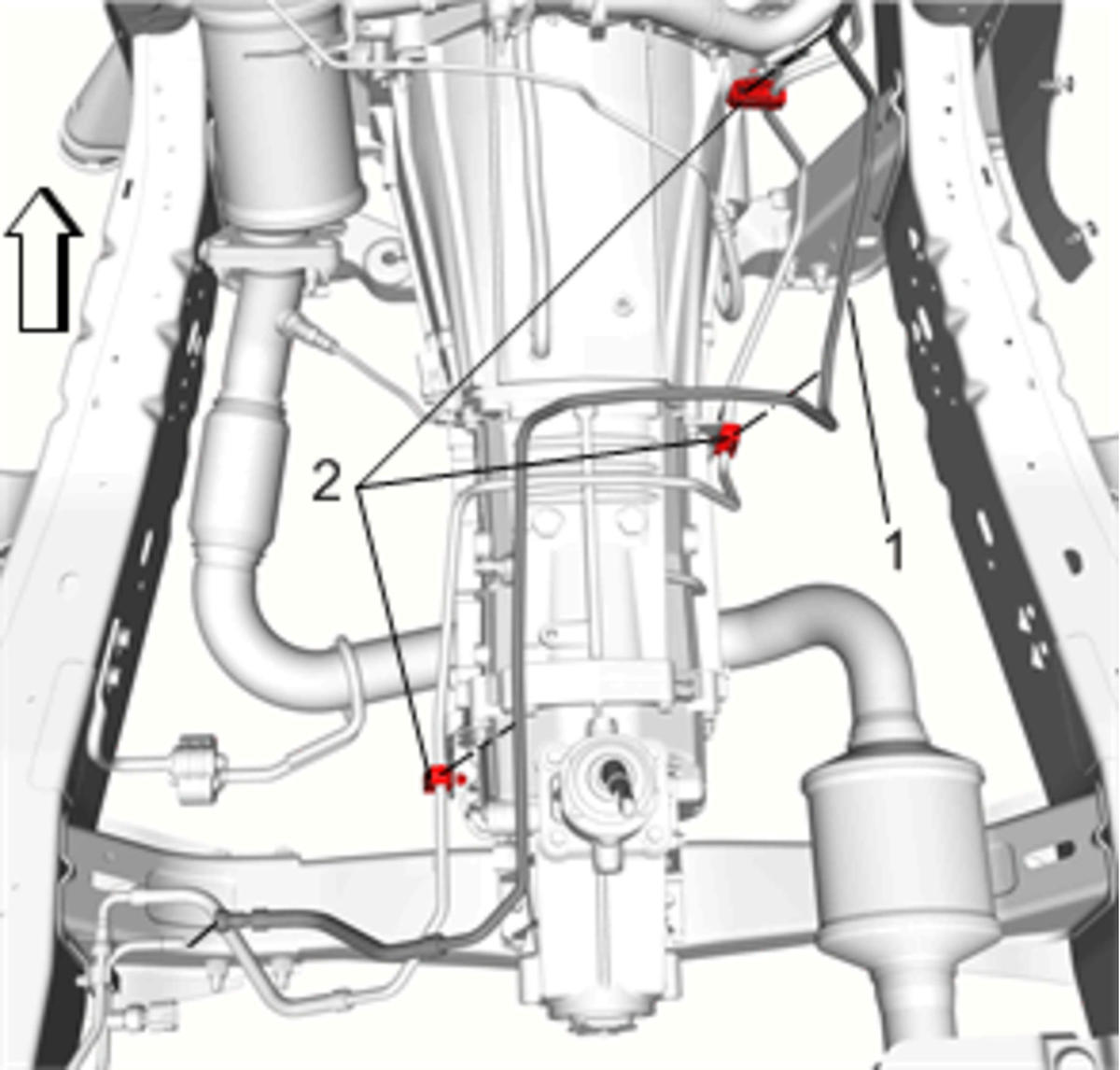

    Fig 1: Fuel Feed Pipe
    GM3964421Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel feed pipe (1) to the vehicle.
  2. Connect the fuel feed pipe (1) and install to retainers (2). Refer to Metal Collar Quick Connect Fitting Service .
  3. Lower the vehicle.

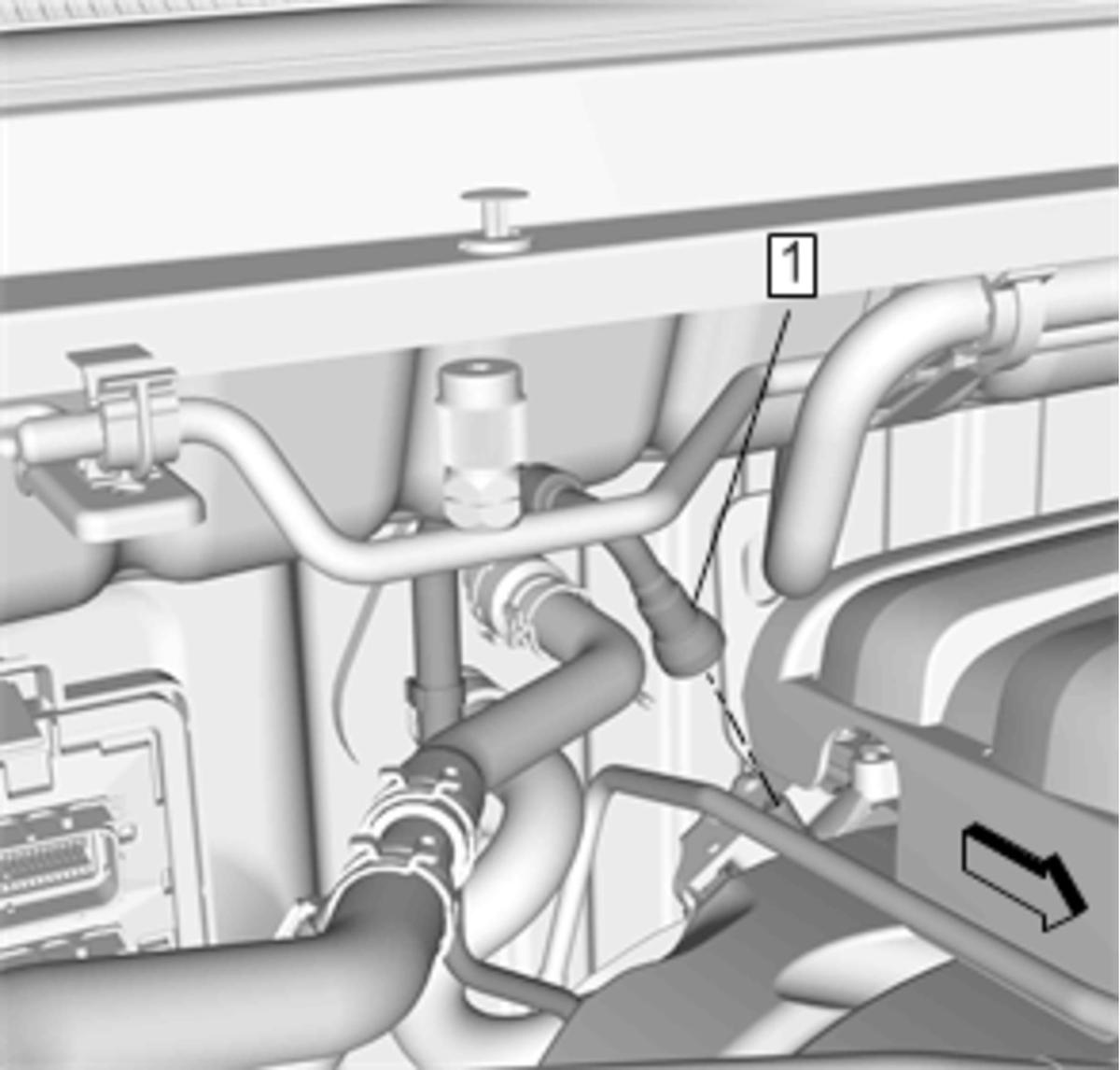

    4. Fig 2: Fuel Feed Pipe
    GM3964419Courtesy of GENERAL MOTORS COMPANY
  4. Connect the fuel feed pipe (1) to the fuel feed pipe at engine (2). Refer to Metal Collar Quick Connect Fitting Service .
  5. Install the fuel pump cover. Refer to Fuel Pump Cover Replacement .
