Power, Ground, and Serial Data

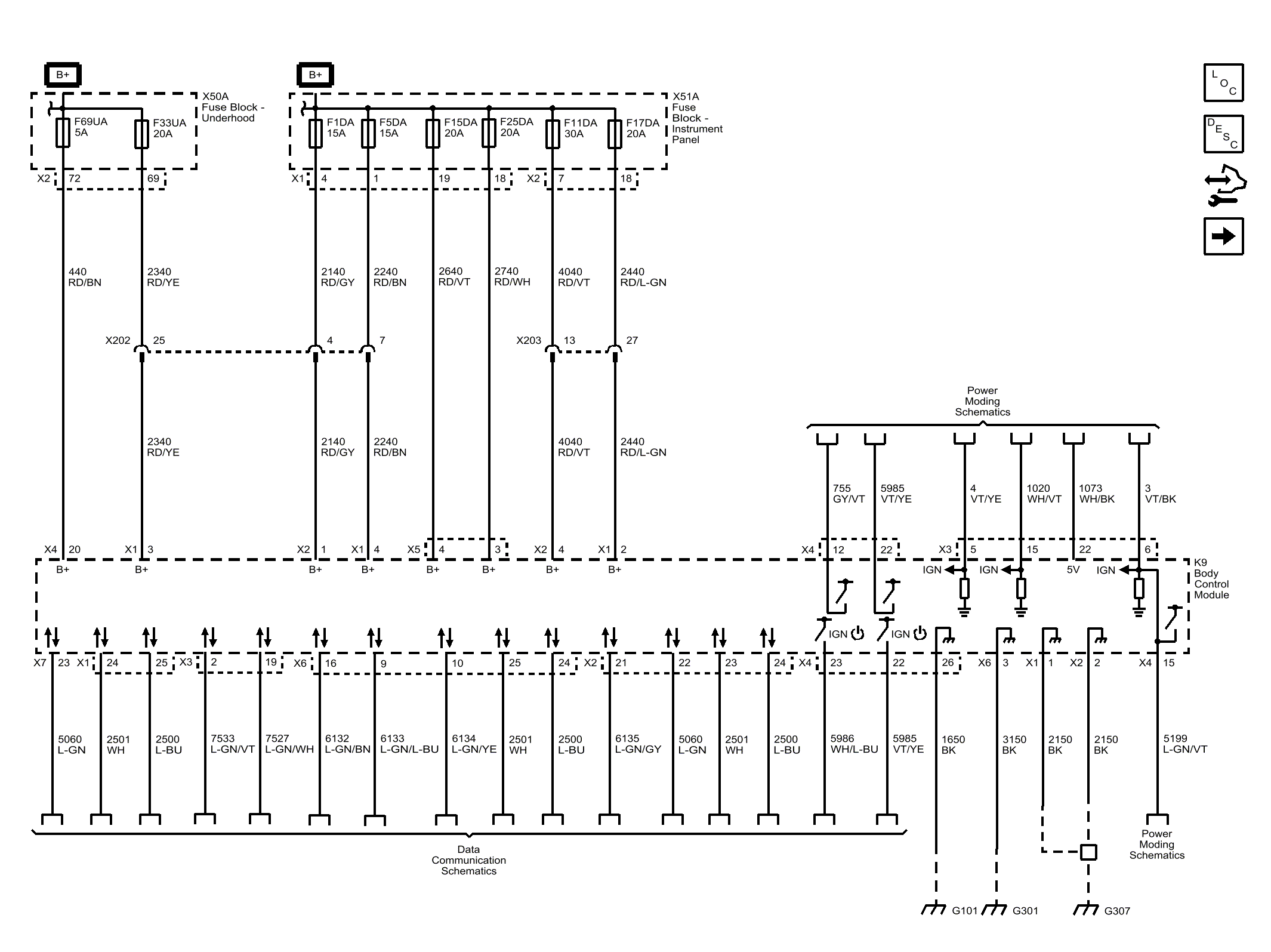

Fig 1: Power, Ground, and Serial Data
GM4117685Courtesy of GENERAL MOTORS COMPANY
