Accessory Wakeup and Communications Enable

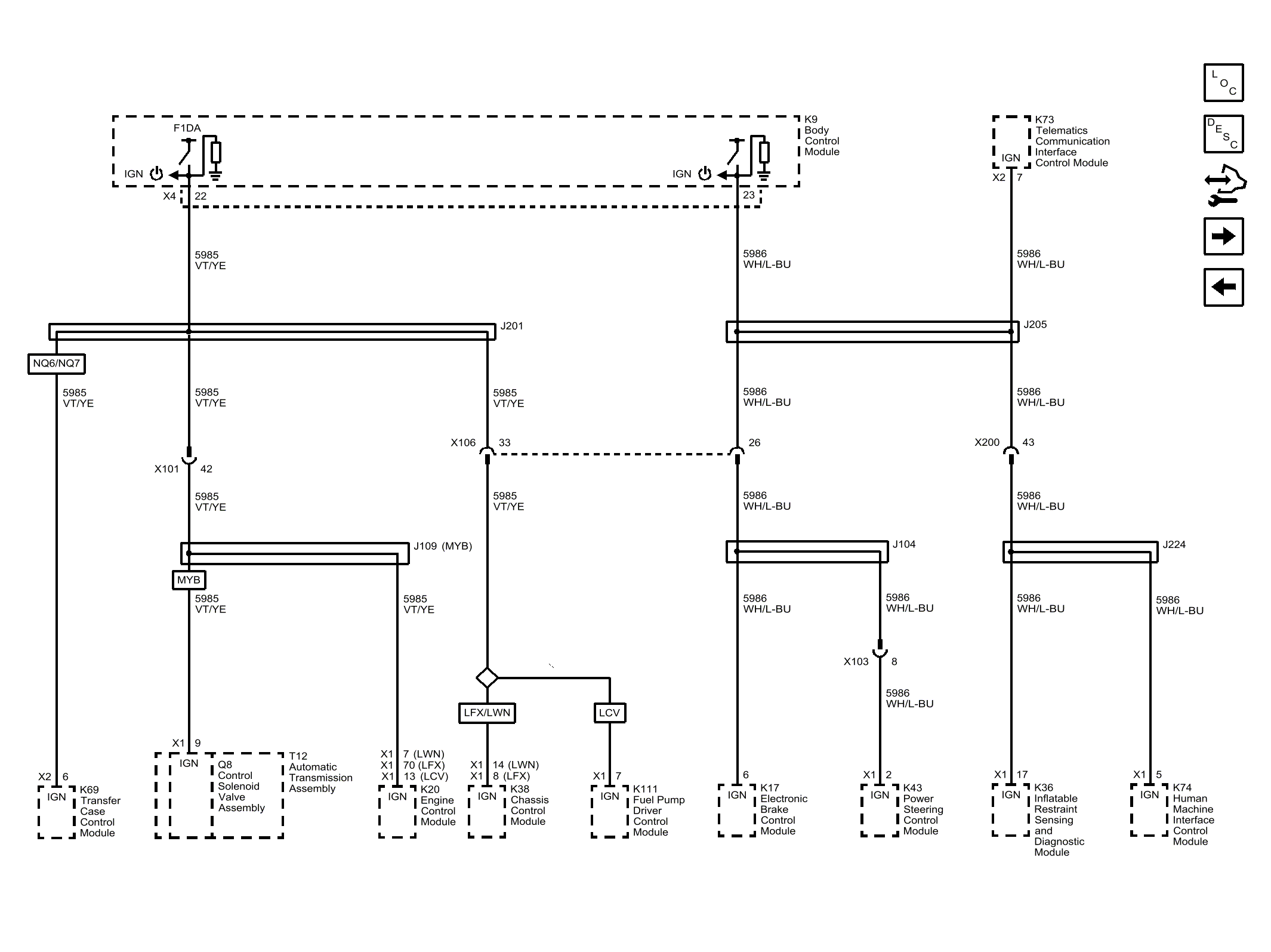

Fig 1: Accessory Wakeup and Communications Enable
GM4117674Courtesy of GENERAL MOTORS COMPANY
