Data Communication Wiring Schematics
›
Powertrain Expansion Bus (LCV)
Powertrain Expansion Bus (LCV)

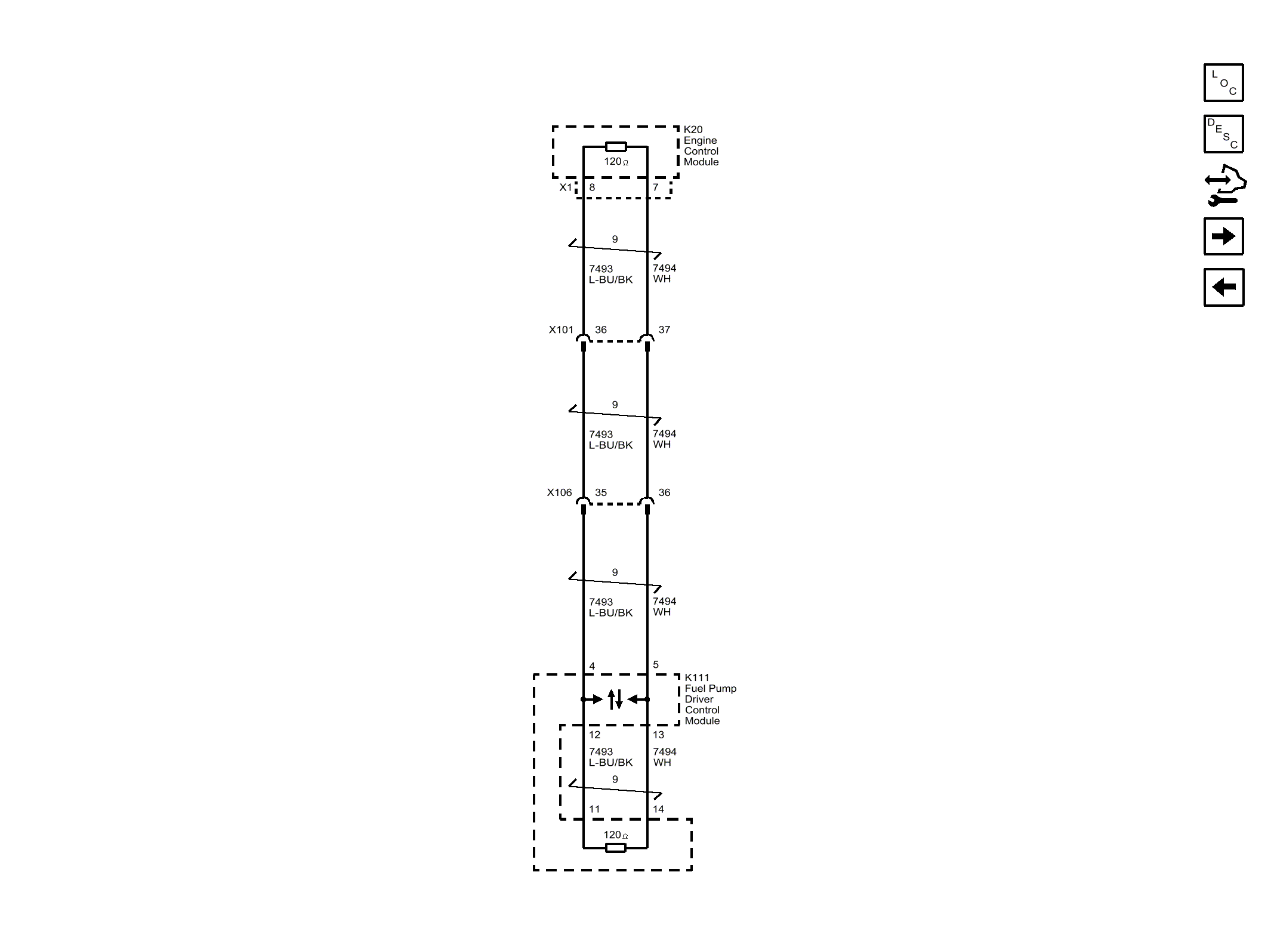

Fig 1: Powertrain Expansion Bus (LCV)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
