Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

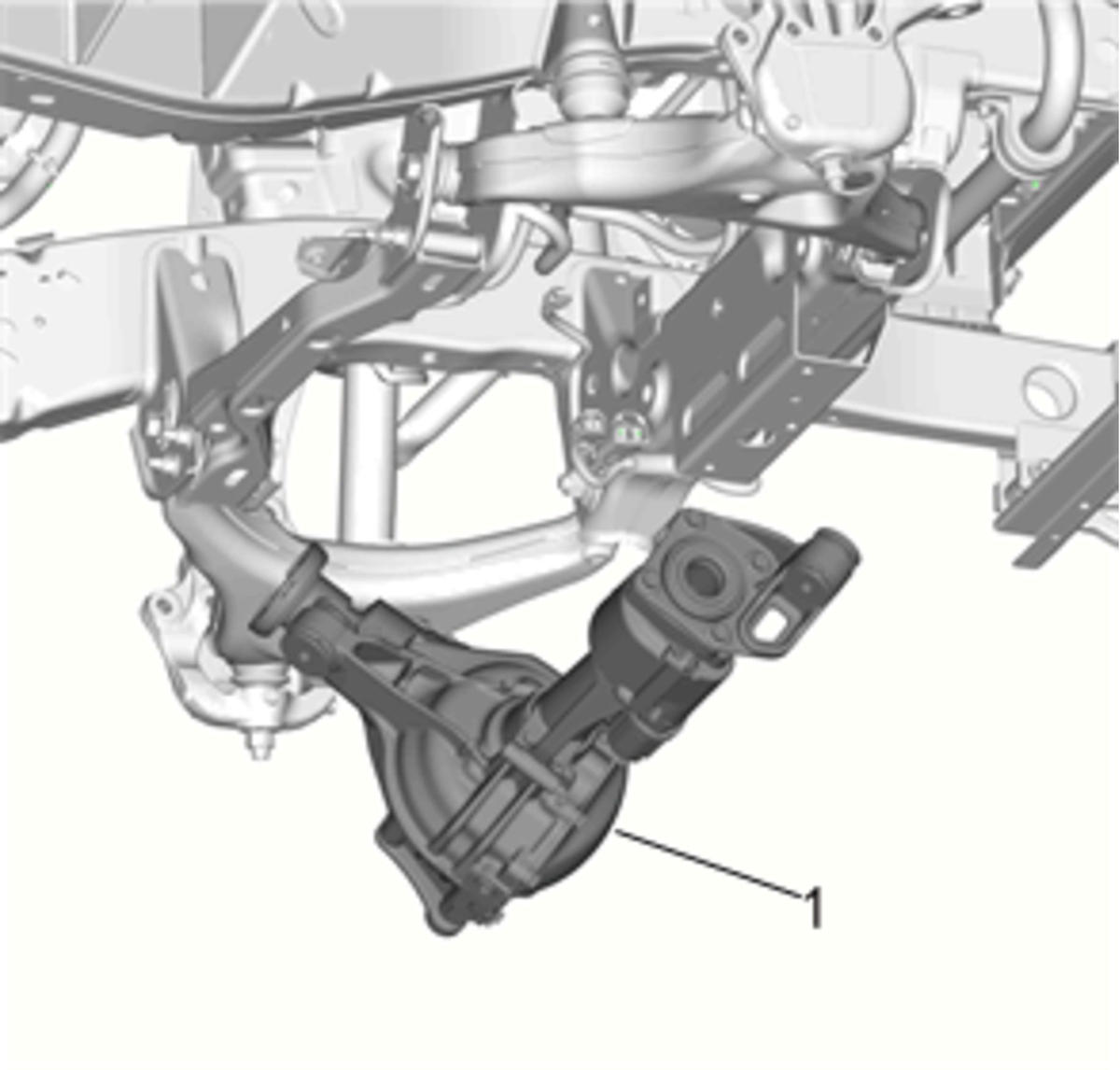

    Fig 1: Slide Axle Assembly
    GM3807600Courtesy of GENERAL MOTORS COMPANY
  1. Lift the front axle assembly (1) into position.

    Slide axle assembly rearward over the top of the crossmember. Install the axle to cross member bolt loosely. Rotate the axle assembly up and into position.

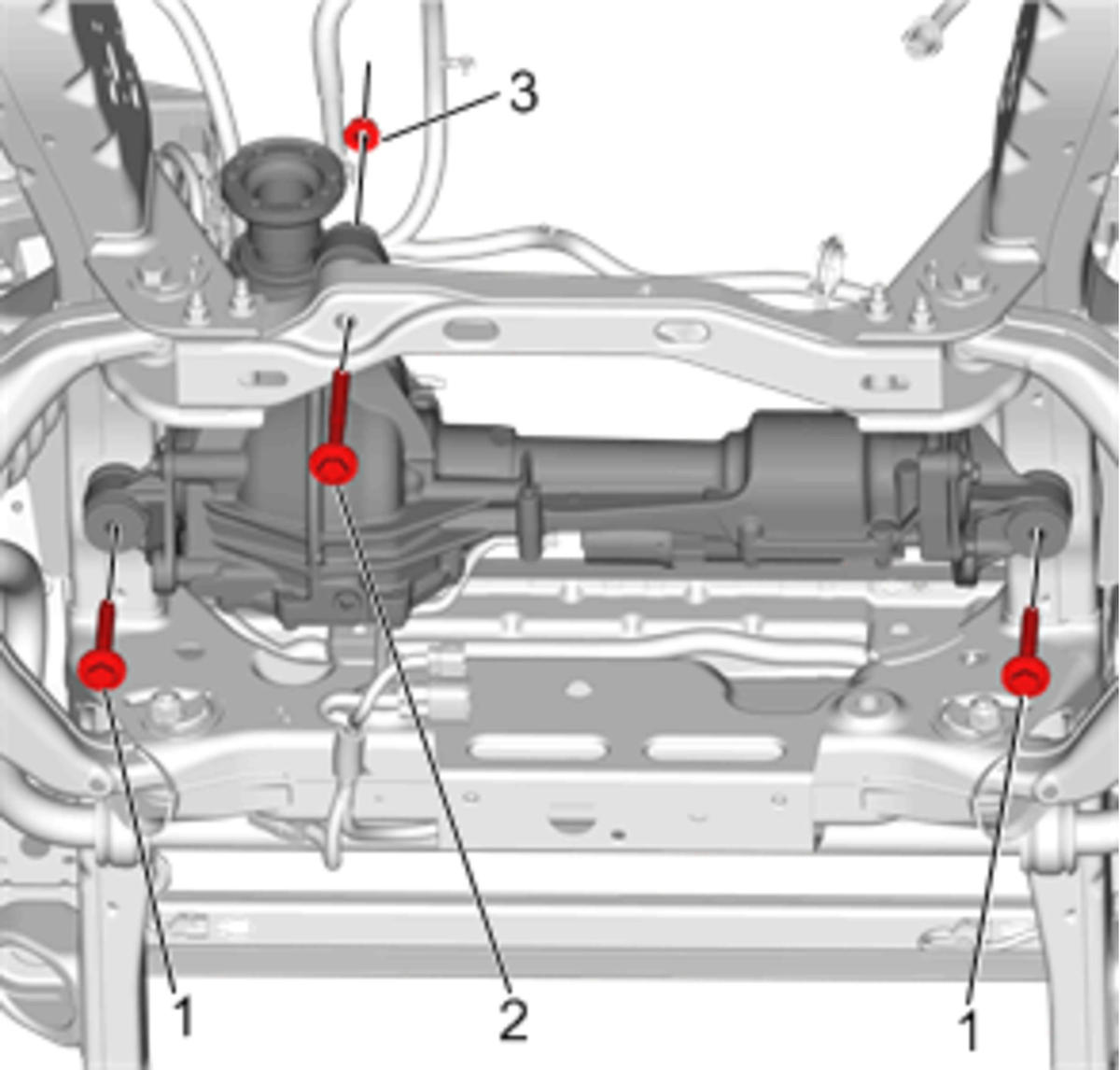

    2. Fig 2: Axle Assembly To Frame Rail Bolts
    GM3807599Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install axle to frame rail bolts (1) and the axle to crossmember bolt (2) and nut (3). Tighten all attachment bolts to 160 N.m (118 lb ft).

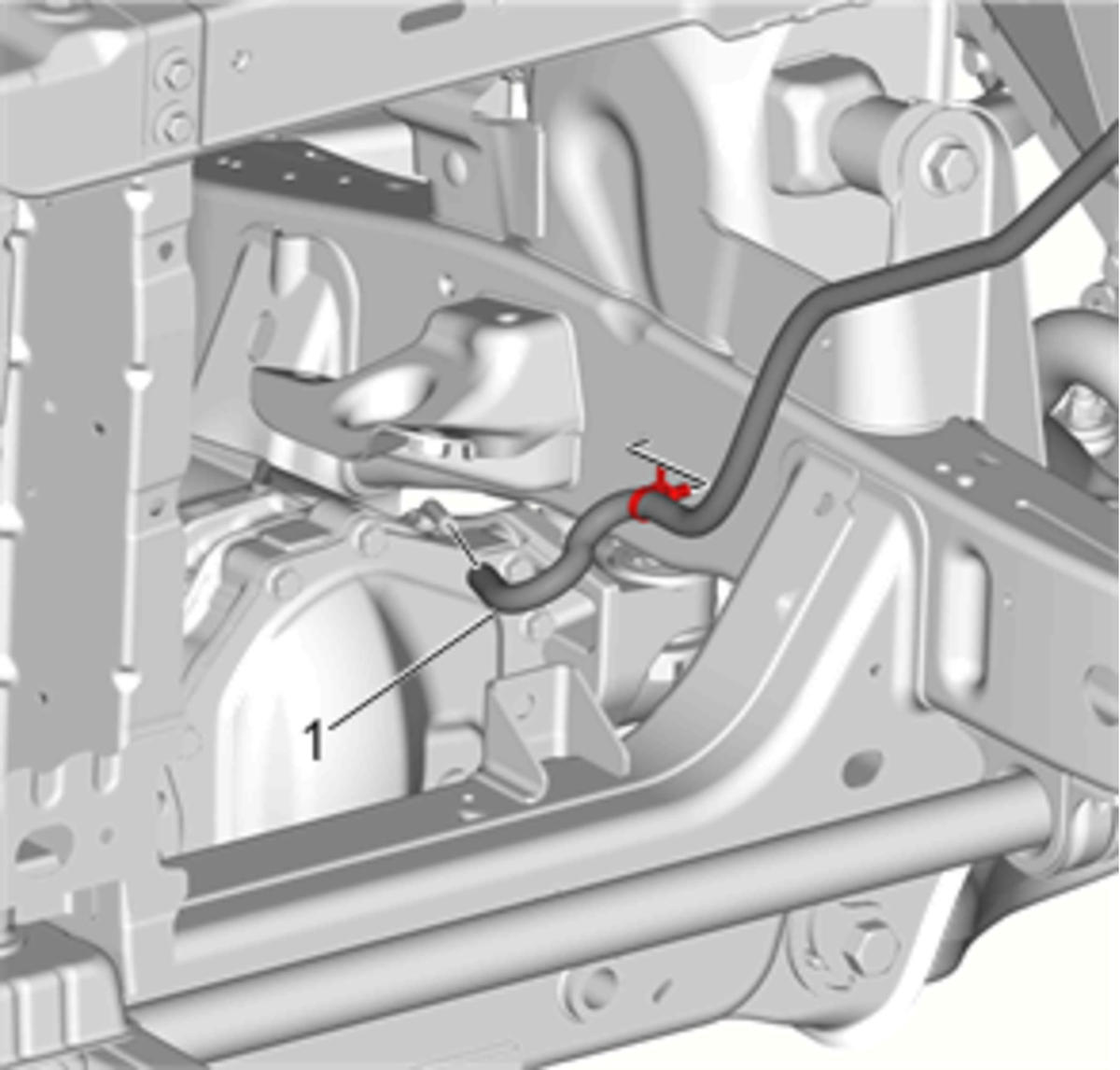

    3. Fig 3: Vent Hose
    GM3807886Courtesy of GENERAL MOTORS COMPANY
  3. Install the vent hose (1).

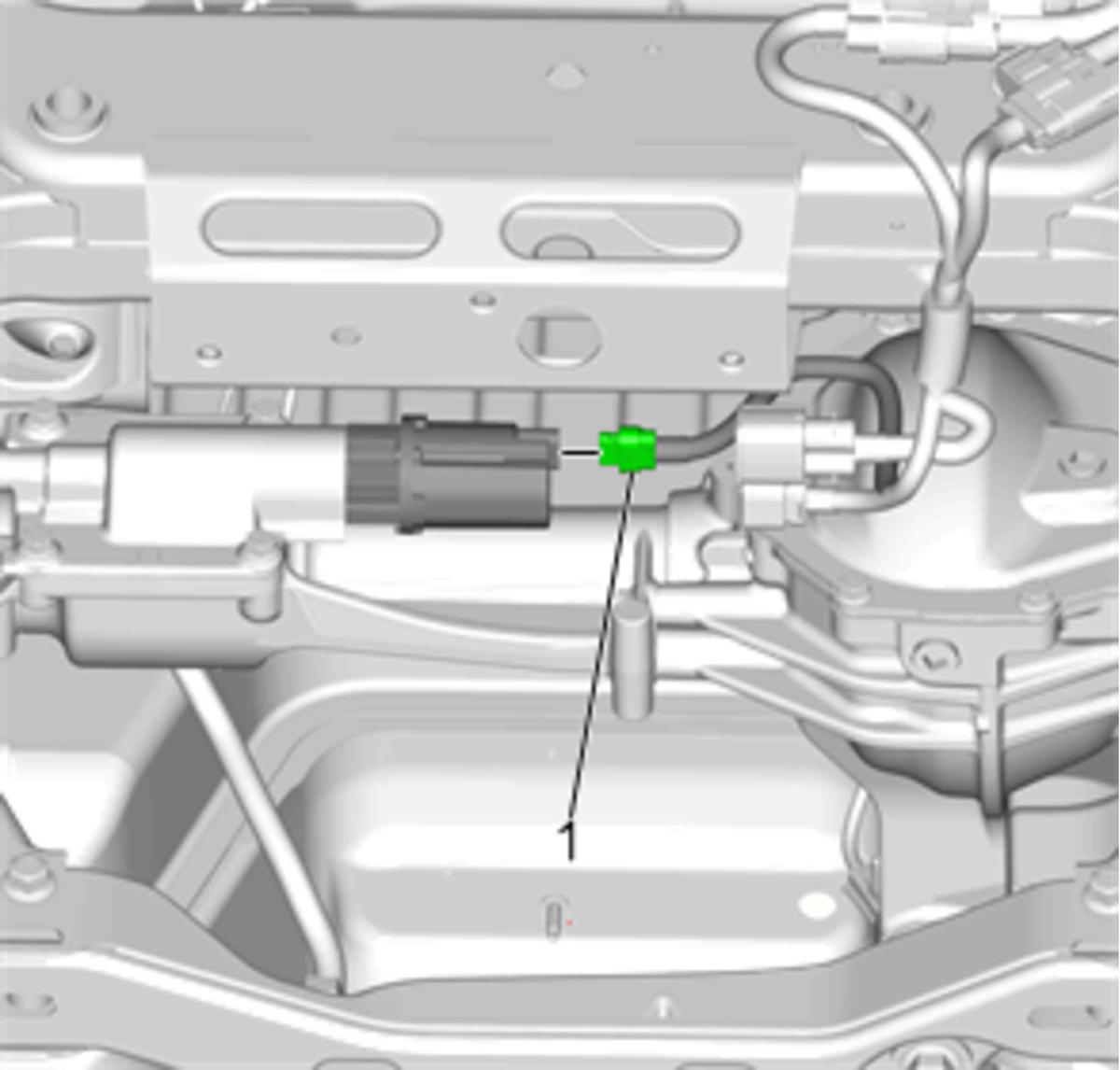

    4. Fig 4: Unclip Electric Motor Actuator Harness Retainer
    GM3807596Courtesy of GENERAL MOTORS COMPANY
  4. Install the electric motor actuator and tighten to 30 N.m (22 lb ft).
  5. Install the electrical connector.

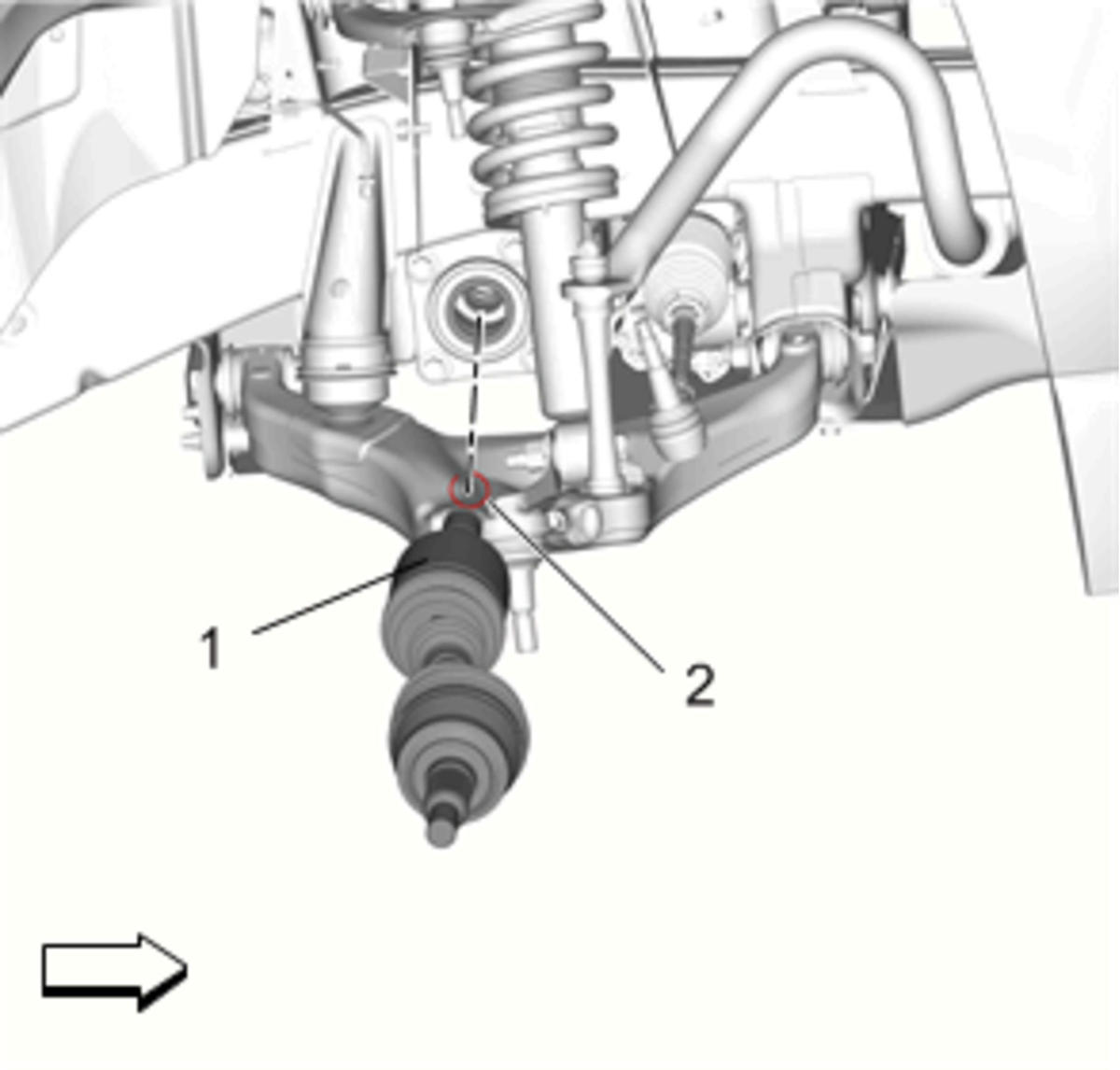

    6. Fig 5: Wheel Drive Shaft
    GM3762548Courtesy of GENERAL MOTORS COMPANY
  6. Install the front wheel drive shafts. Refer to Front Wheel Drive Shaft Replacement - Left SideFront Wheel Drive Shaft Replacement - Left Side (ZR2) , and Front Wheel Drive Shaft Replacement - Right SideFront Wheel Drive Shaft Replacement - Right Side (ZR2) ..

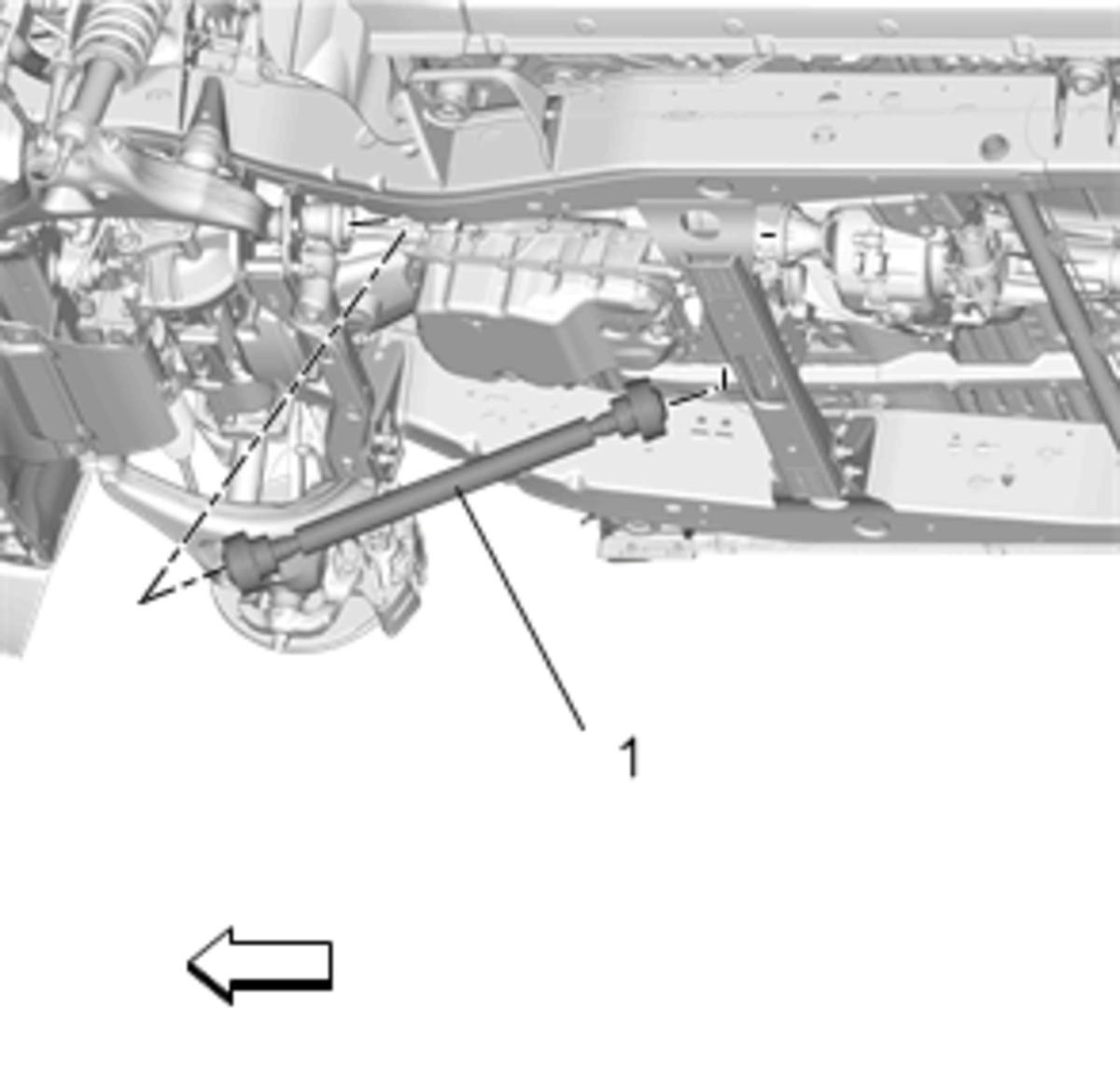

    7. Fig 6: Front Propeller Shaft
    GM3719948Courtesy of GENERAL MOTORS COMPANY
  7. Install the front axle propeller shaft. Refer to Front Axle Propeller Shaft Replacement .
  8. Install the steering gear skid shield. Refer to Steering Gear Skid Shield Replacement (without ZR2)Steering Gear Skid Shield Replacement (with ZR2) .
  9. Fill the front differential assembly with fluid. Refer to Front Axle Lubricant Replacement .
  10. Install the front tires and wheels. Refer to Tire and Wheel Removal and Installation .
