Shift Lock Control Wiring Schematics: MYB

WARNING: This page is about a different variant/trim than selected.

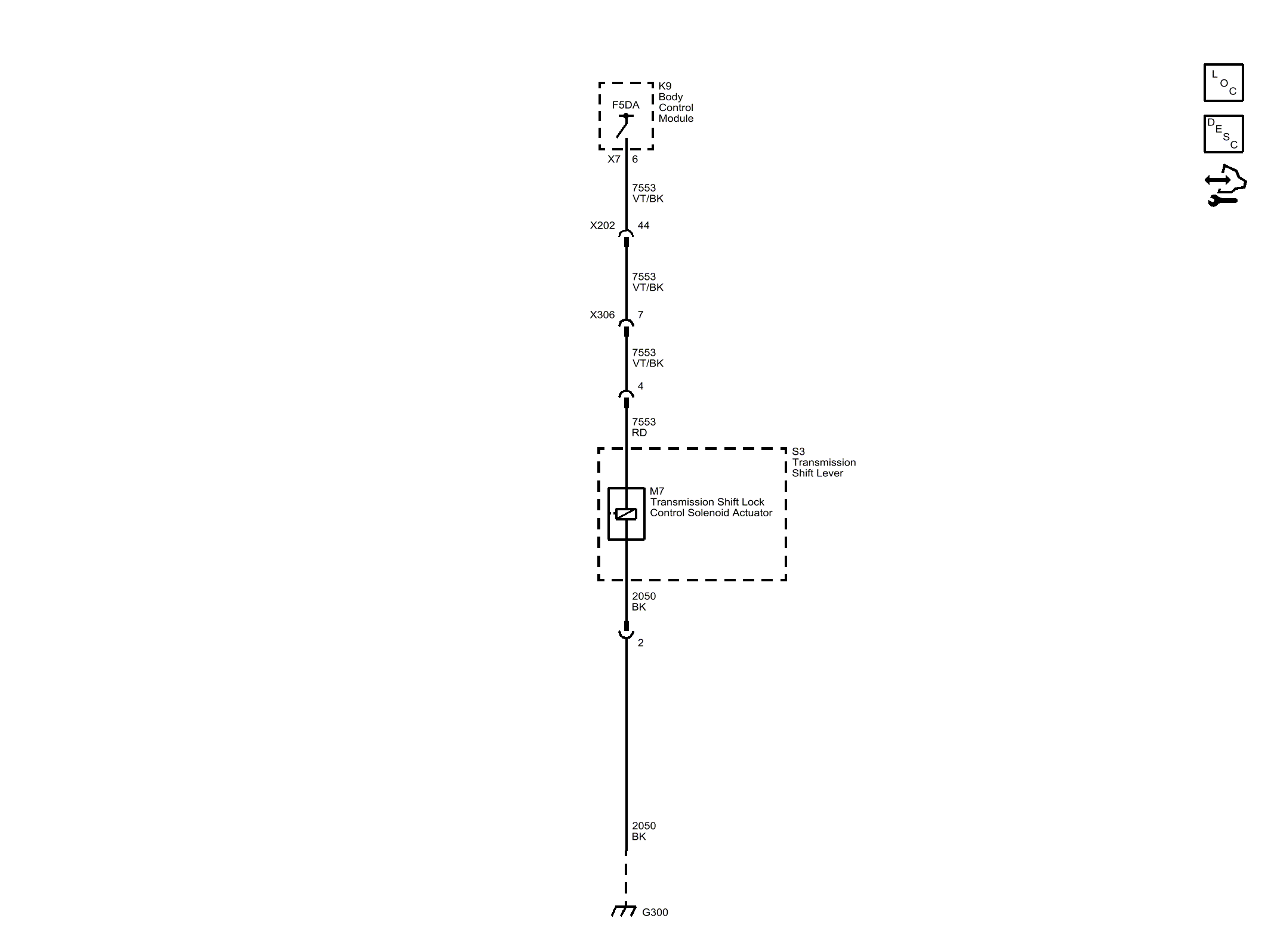

Fig 1: MYB
GM4117778Courtesy of GENERAL MOTORS COMPANY
