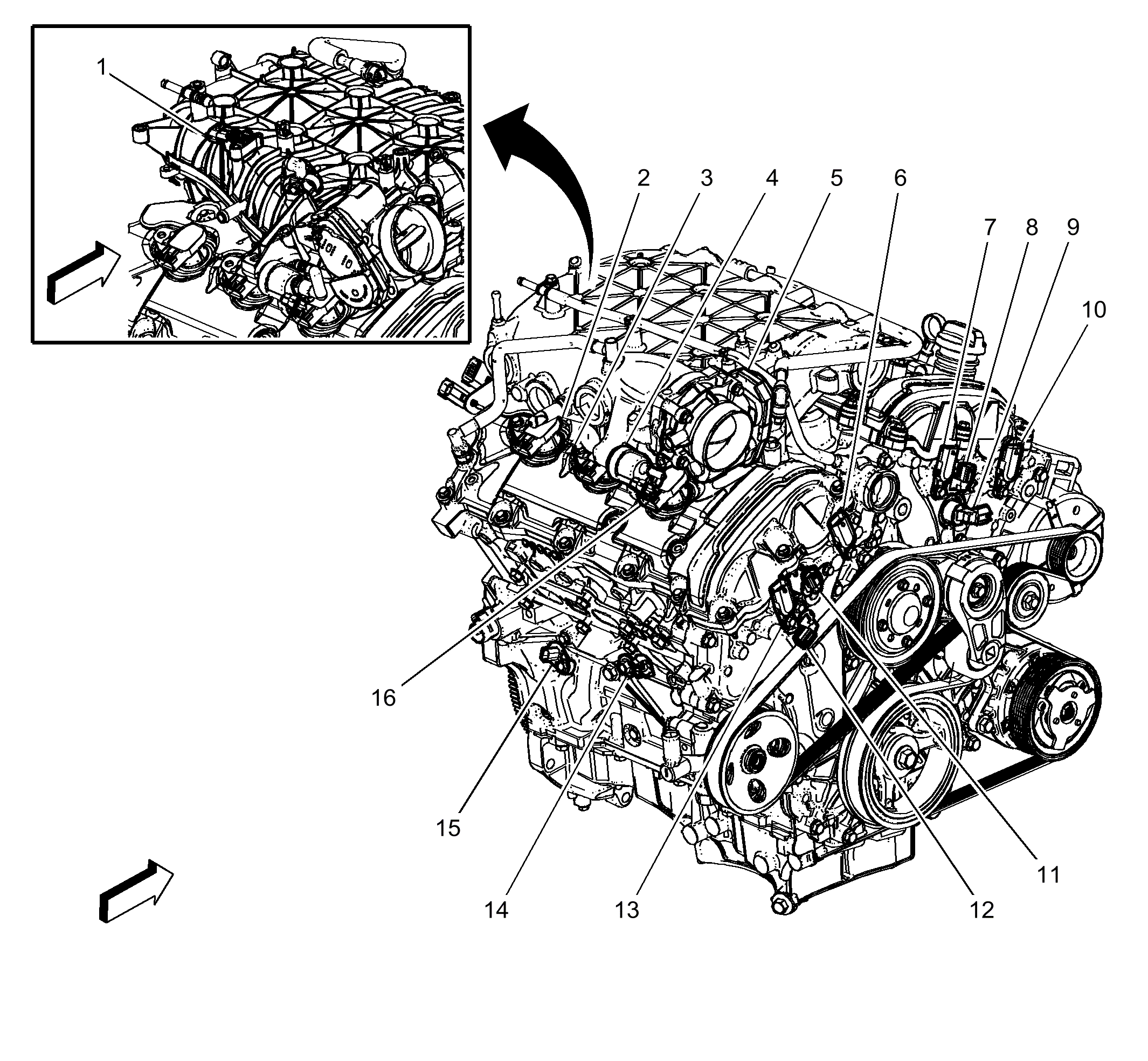

Right Rear Engine Components (LFX)
Right Rear Engine Components (LFX)
| Items |
|---|
| 1. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 2. T8E Ignition Coil 5 (LFX) T8E Ignition Coil 5 (LFX) |
| 3. T8C Ignition Coil 3 T8C Ignition Coil 3 (LFX) |
| 4. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LFX) |
| 5. Q38 Throttle Body Q38 Throttle Body |
| 6. B23B Camshaft Position Sensor - Bank 1 Intake (LFX) B23B Camshaft Position Sensor - Bank 1 Intake |
| 7. B23D Camshaft Position Sensor - Bank 2 Intake (LFX) B23D Camshaft Position Sensor - Bank 2 Intake |
| 8. Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LFX) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake |
| 9. Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LFX) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust |
| 10. B23C Camshaft Position Sensor - Bank 2 Exhaust (LFX) B23C Camshaft Position Sensor - Bank 2 Exhaust |
| 11. Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LFX) Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake |
| 12. Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LFX) Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust |
| 13. B23A Camshaft Position Sensor - Bank 1 Exhaust (LFX) B23A Camshaft Position Sensor - Bank 1 Exhaust |
| 14. B68A Knock Sensor 1 (LFX) B68A Knock Sensor 1 |
| 15. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor |
| 16. T8A Ignition Coil 1 T8C Ignition Coil 1 (LFX) |
