Liftgate Release Switch Replacement

WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

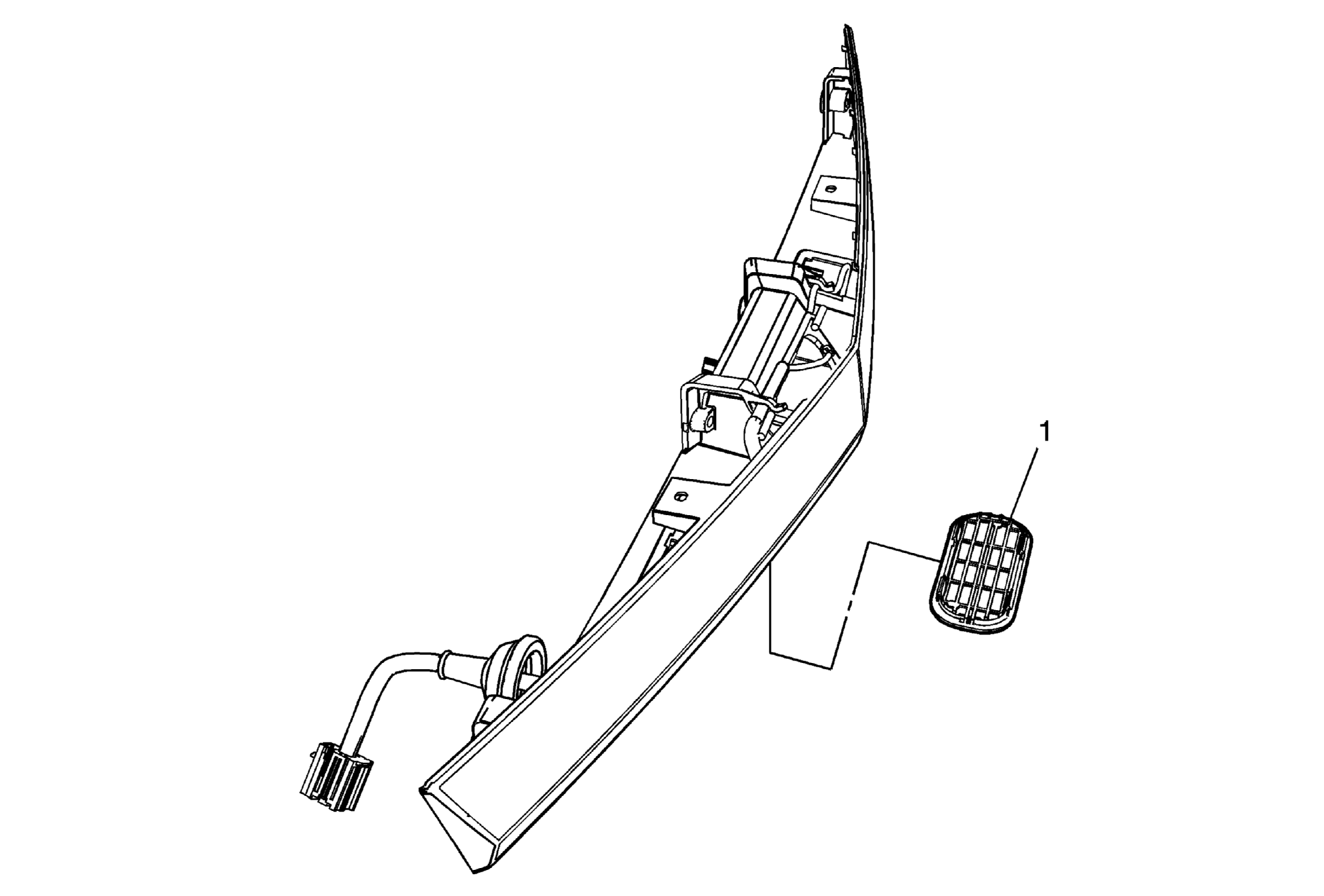

Fig 1: Liftgate Release Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate applique. Refer to Liftgate Applique Replacement (Terrain) .
1	Liftgate Release Switch Procedure Disconnect the electrical harness from the applique. Depress the clip fingers and push outward to remove the release switch from the applique.

Callout

Component Name

Preliminary Procedure
Remove the liftgate applique. Refer to Liftgate Applique Replacement (Terrain) .

Liftgate Release Switch

Procedure

Disconnect the electrical harness from the applique.
Depress the clip fingers and push outward to remove the release switch from the applique.
