Section 94 (Object Detection And Pedestrian Protection System)
›
Schematic Wiring Diagrams
›
Object Detection Wiring Schematics
›
Side Object Detection (UFT)
Side Object Detection (UFT)
WARNING:
This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

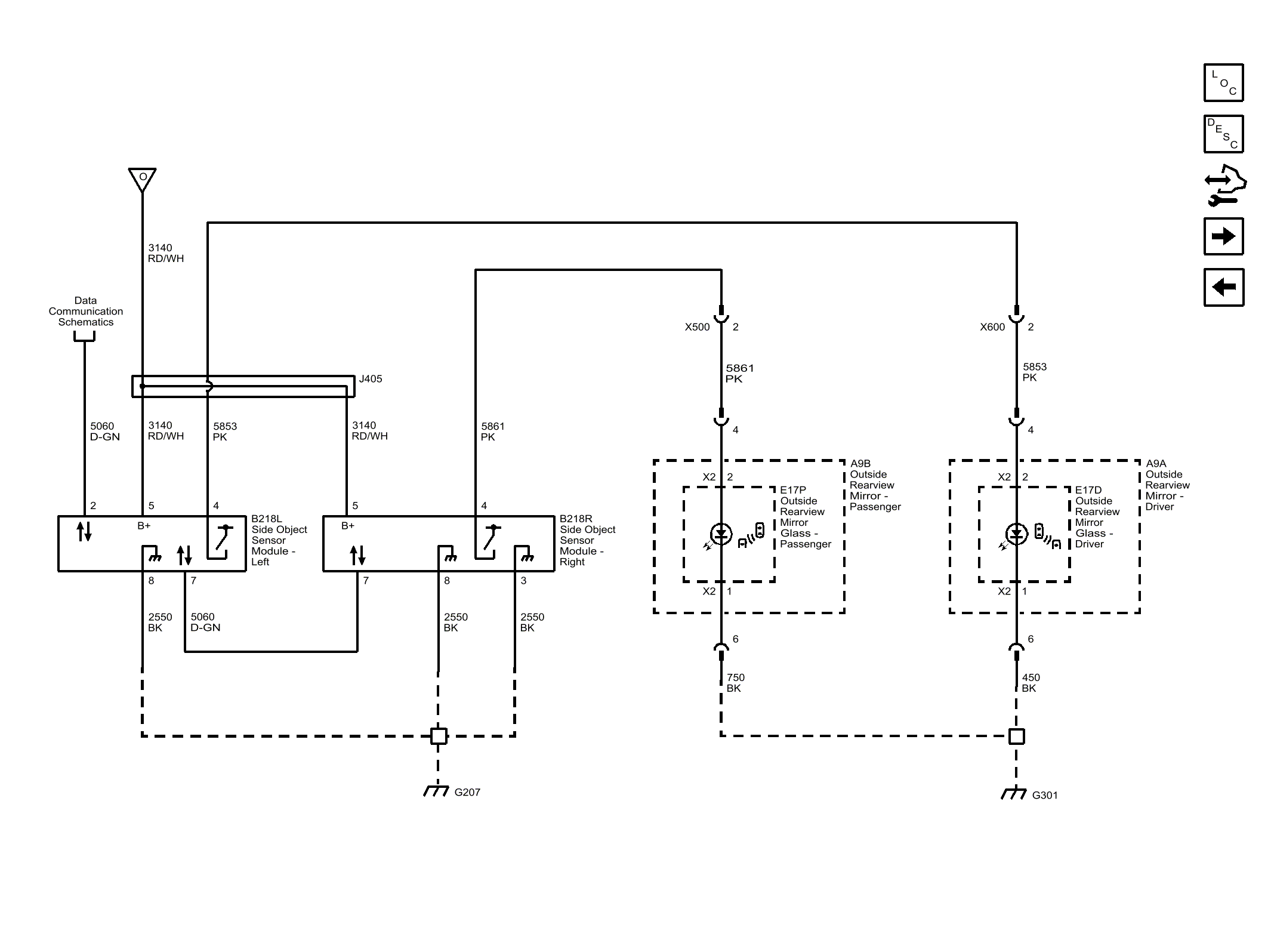

Fig 1: Side Object Detection (UFT)
Courtesy of GENERAL MOTORS COMPANY
