Body Control Module Replacement

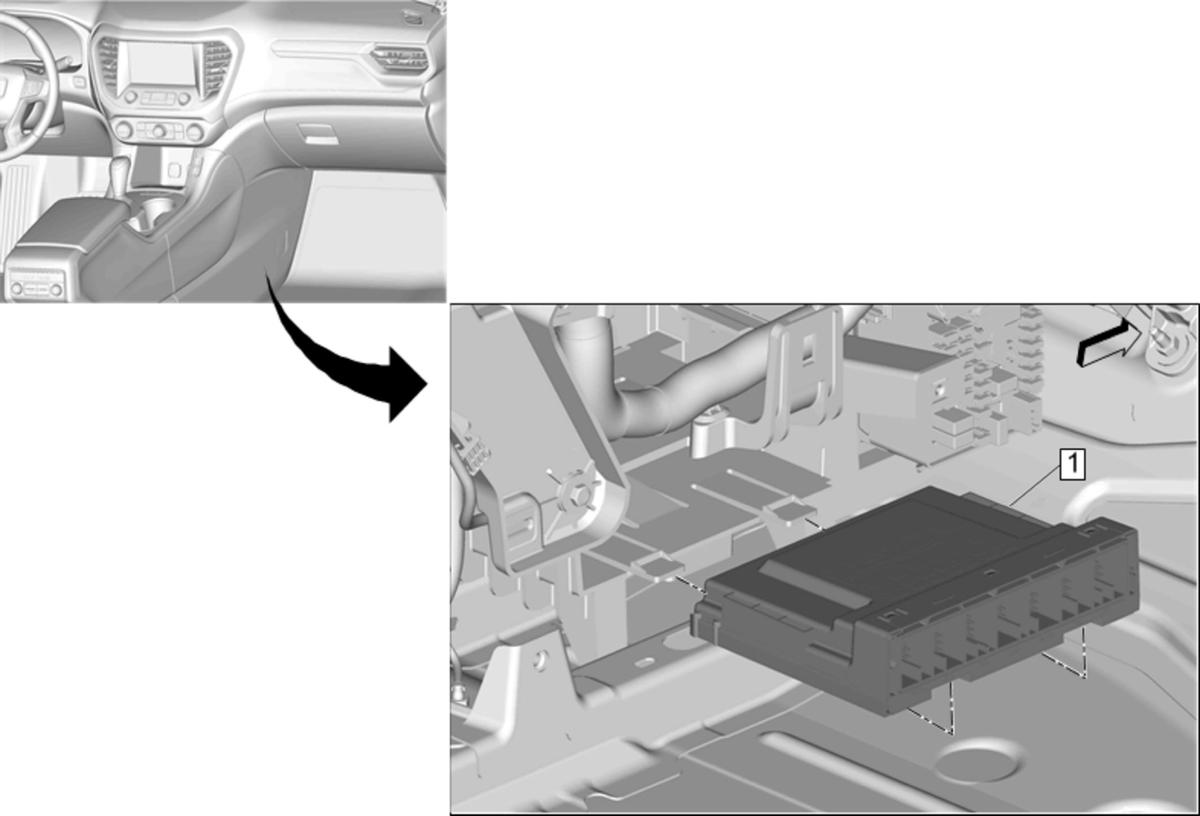

Fig 1: Body Control Module
GM4399589Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove Front Floor Console Extension Panel - Right Side. Refer to Front Floor Console Extension Panel Replacement - Right Side
  2. It is only necessary to remove the floor rear air outlet duct adapter. Refer to Floor Rear Air Outlet Duct Replacement - Right Side
1 Body Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Push tabs to release the body control module from the bracket.
  3. Perform the necessary programming and setup procedure: Control Module References
