Navigation Signal Splitter Replacement

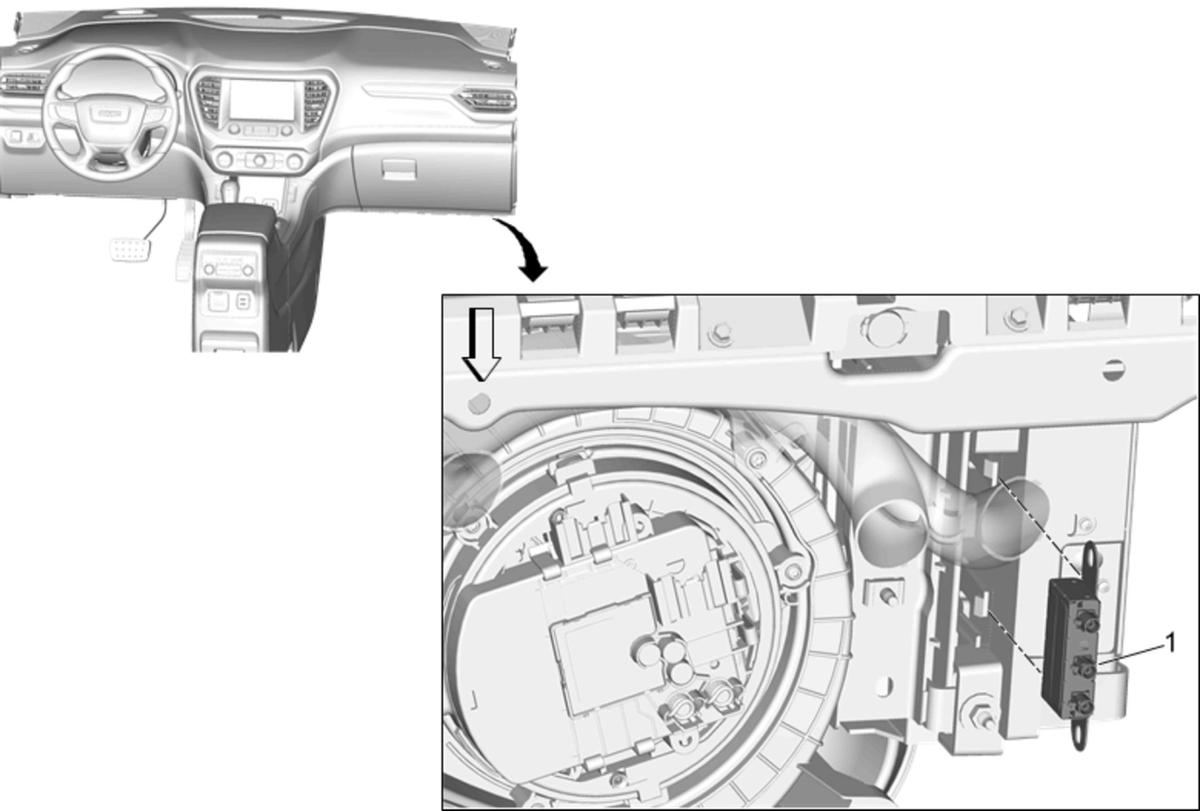

Fig 1: Navigation Signal Splitter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Insulator - Right Side. Refer to Instrument Panel Insulator Replacement - Right Side
1	Navigation Signal Splitter Procedure Disconnect the electrical connectors. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Insulator - Right Side. Refer to Instrument Panel Insulator Replacement - Right Side

Navigation Signal Splitter

Procedure
