Keyless Entry - Passive and Keyless Start

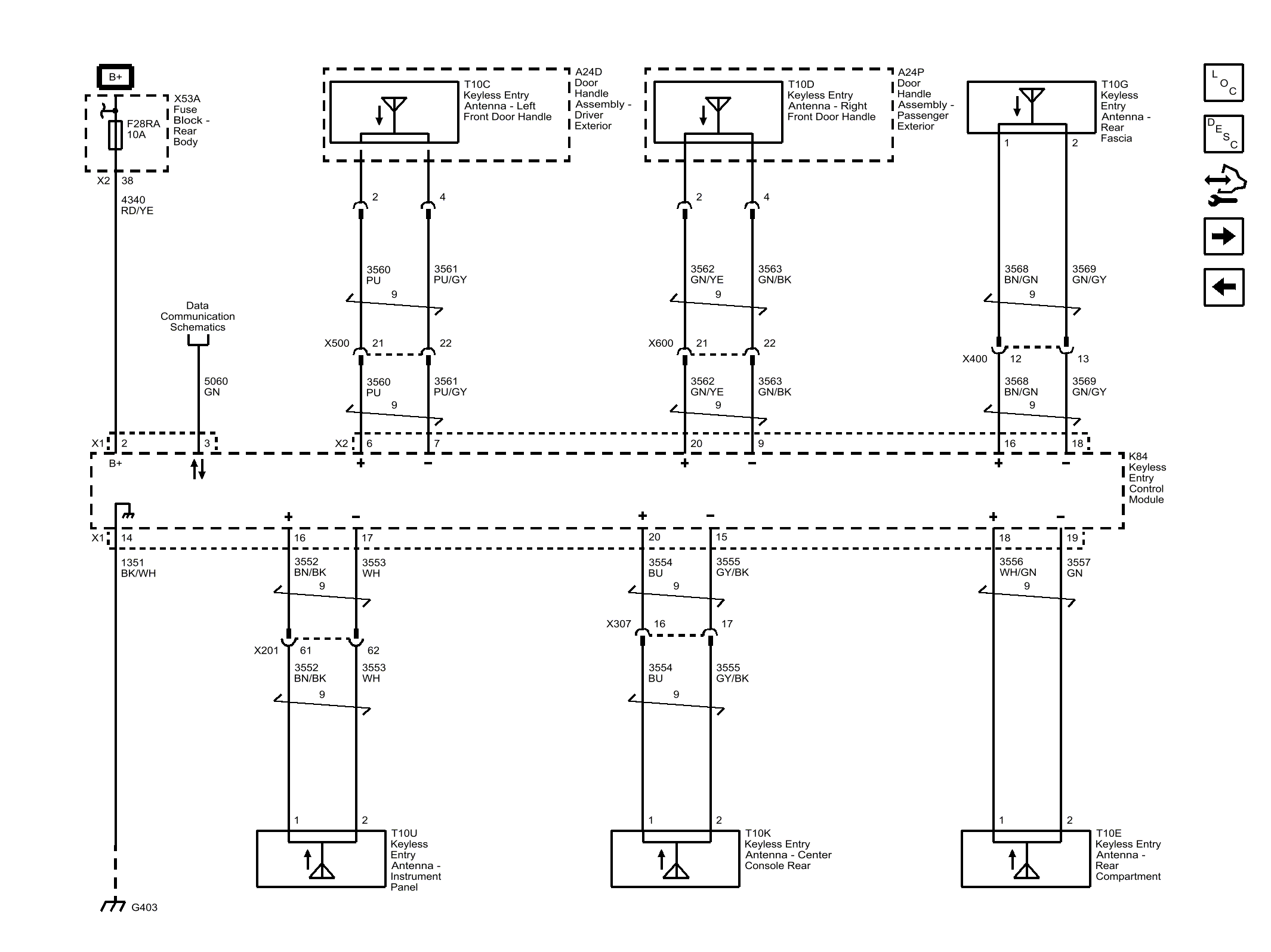

Fig 1: Keyless Entry - Passive and Keyless Start
GM4373427Courtesy of GENERAL MOTORS COMPANY
