Theft Deterrent Module Replacement (All Terrain)

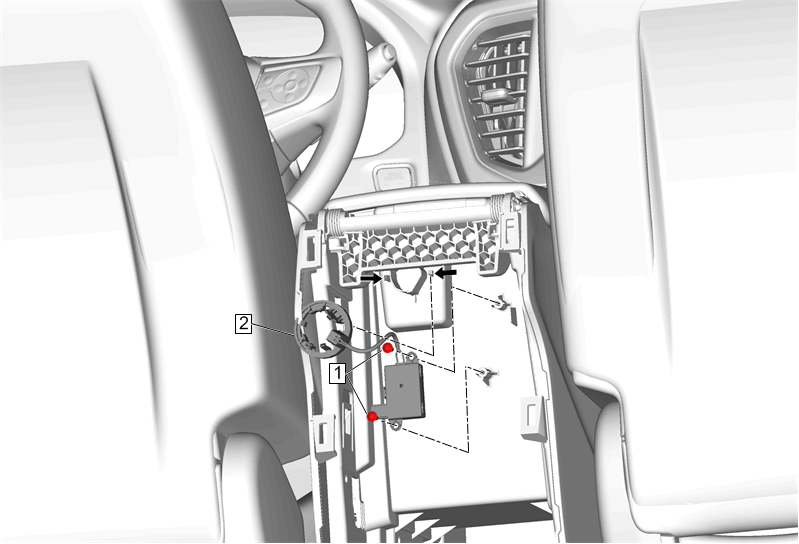

Fig 1: Theft Deterrent Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console rear air duct - rear C59. Front Floor Console Rear Air Duct Replacement (Rear C59)
1	Front Floor Console Bolt (Qty: 2) CAUTION: Fastener Caution Tighten 1 N.m (9 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Release the retaining tabs. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Remove the front floor console rear air duct - rear C59. Front Floor Console Rear Air Duct Replacement (Rear C59)

Front Floor Console Bolt (Qty: 2)

CAUTION:

Tighten
1 N.m (9 lb in)

Theft Deterrent Module

Procedure
