Fuel Level Sensor Replacement (AWD)

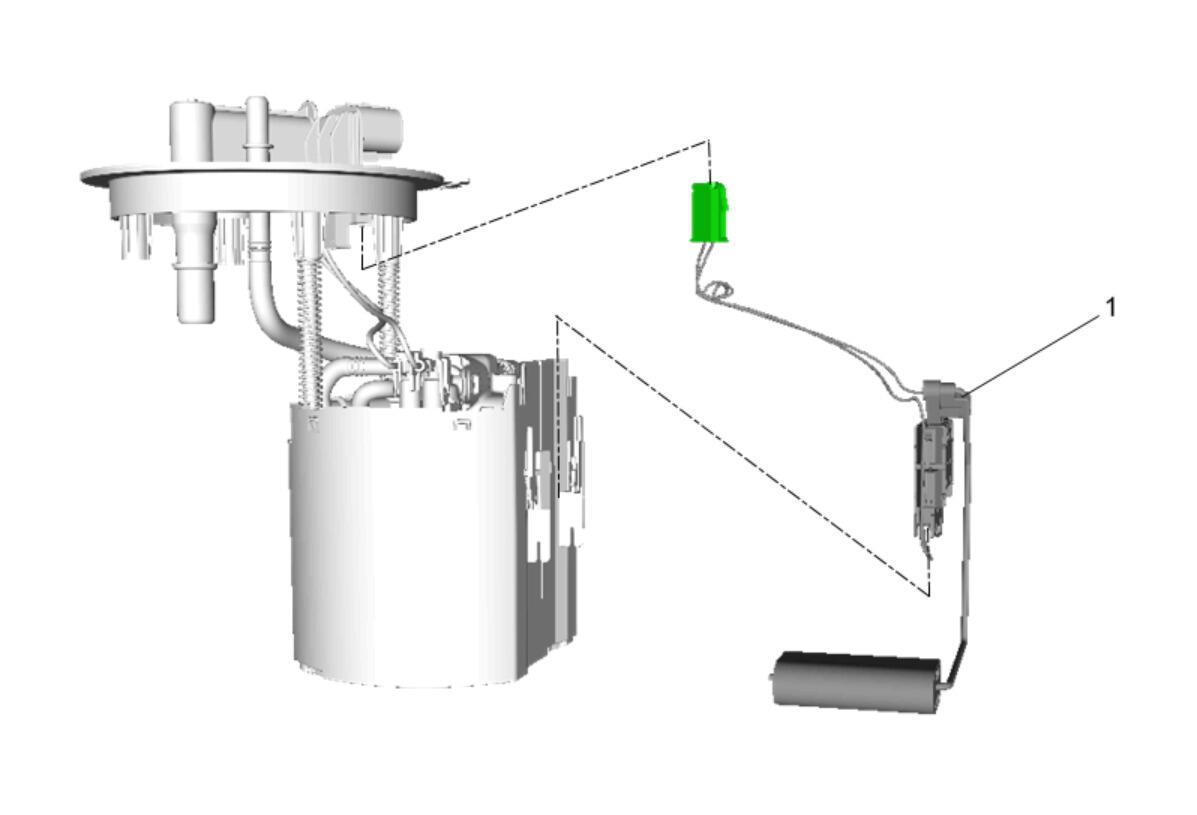

Fig 1: Fuel Level Sensor (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Remove Fuel Tank Fuel Pump Module. Refer to Fuel Tank Fuel Pump Module Replacement (AWD)
1	Fuel Level Sensor Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedure Remove Fuel Tank Fuel Pump Module. Refer to Fuel Tank Fuel Pump Module Replacement (AWD)

Fuel Level Sensor

Procedure
