Fuel Tank Front Shield Replacement (AWD)

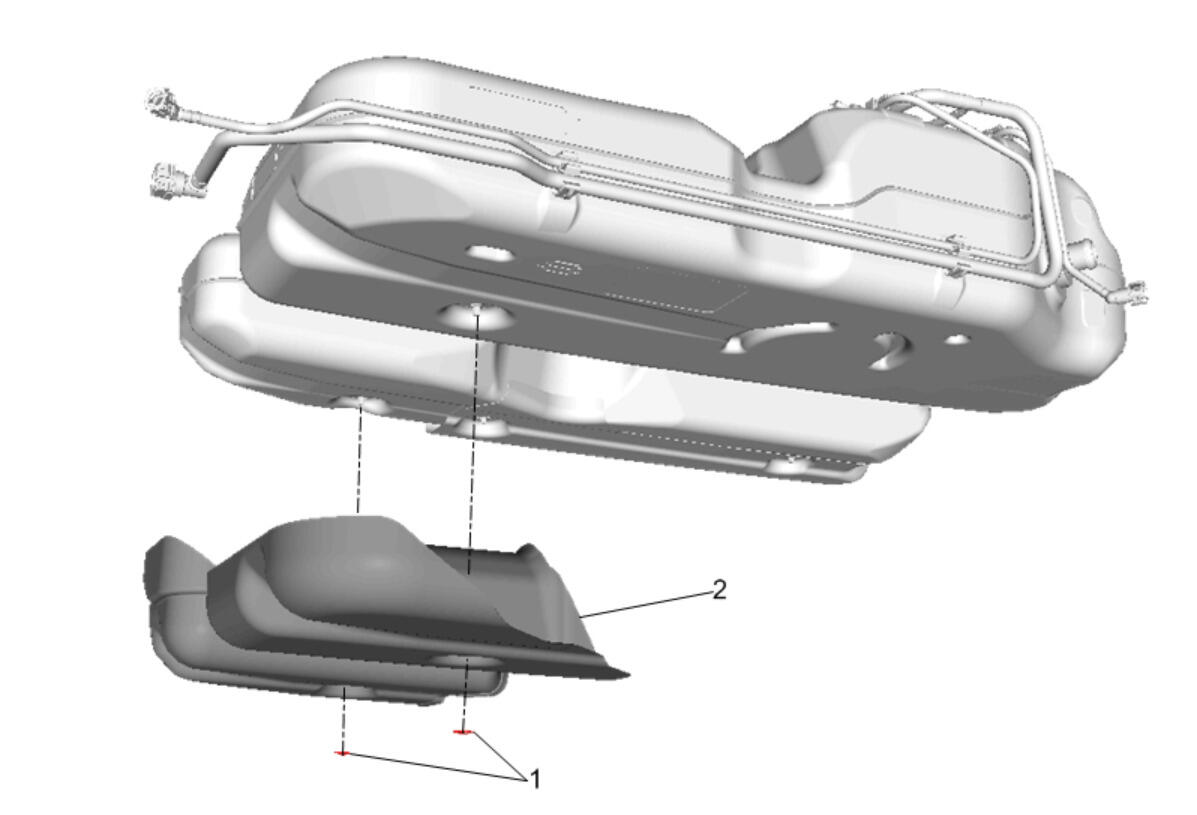

Fig 1: Fuel Tank Front Shield (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Fuel Tank. Refer to Fuel Tank Replacement (AWD)
1	Fuel Tank Heat Shield Retainer (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Fuel Tank Front Shield
