Intake Air Duct Replacement

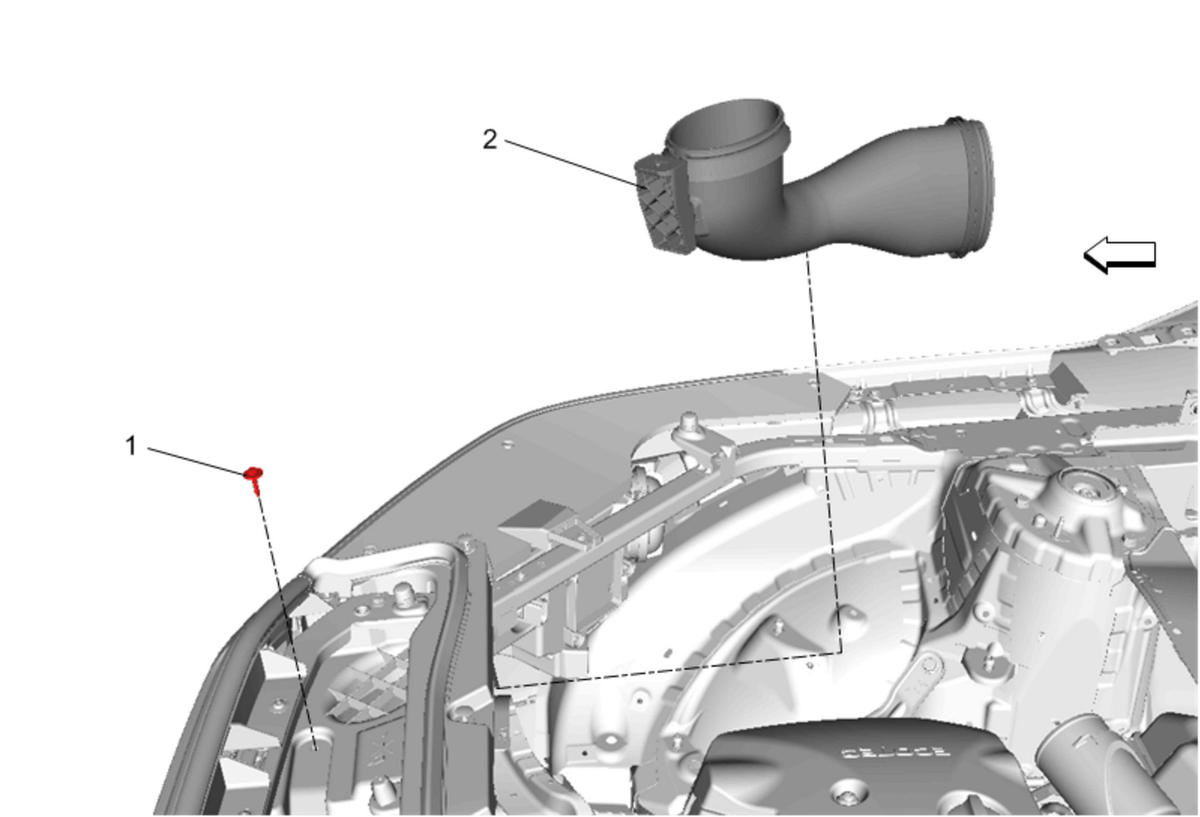

Fig 1: Intake Air Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Air Cleaner Assembly. Refer to Air Cleaner Assembly Replacement
1	Intake Air Duct Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Intake Air Duct
