Pedestrian Impact Detection System (B3T)
Pedestrian Impact Detection System (B3T)
WARNING:
This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

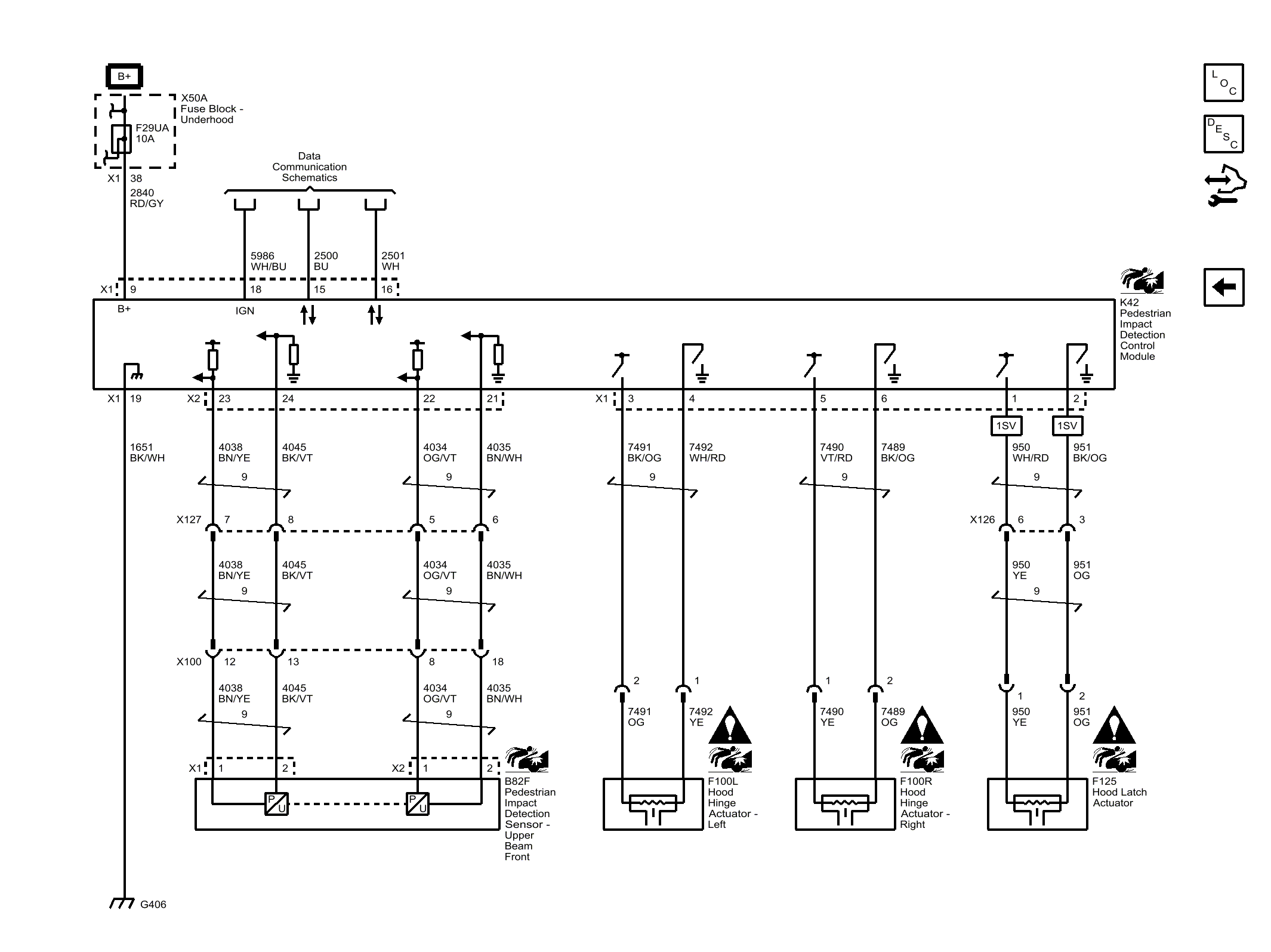

Fig 1: Pedestrian Impact Detection System (B3T)
Courtesy of GENERAL MOTORS COMPANY
