Radio Bracket Replacement

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

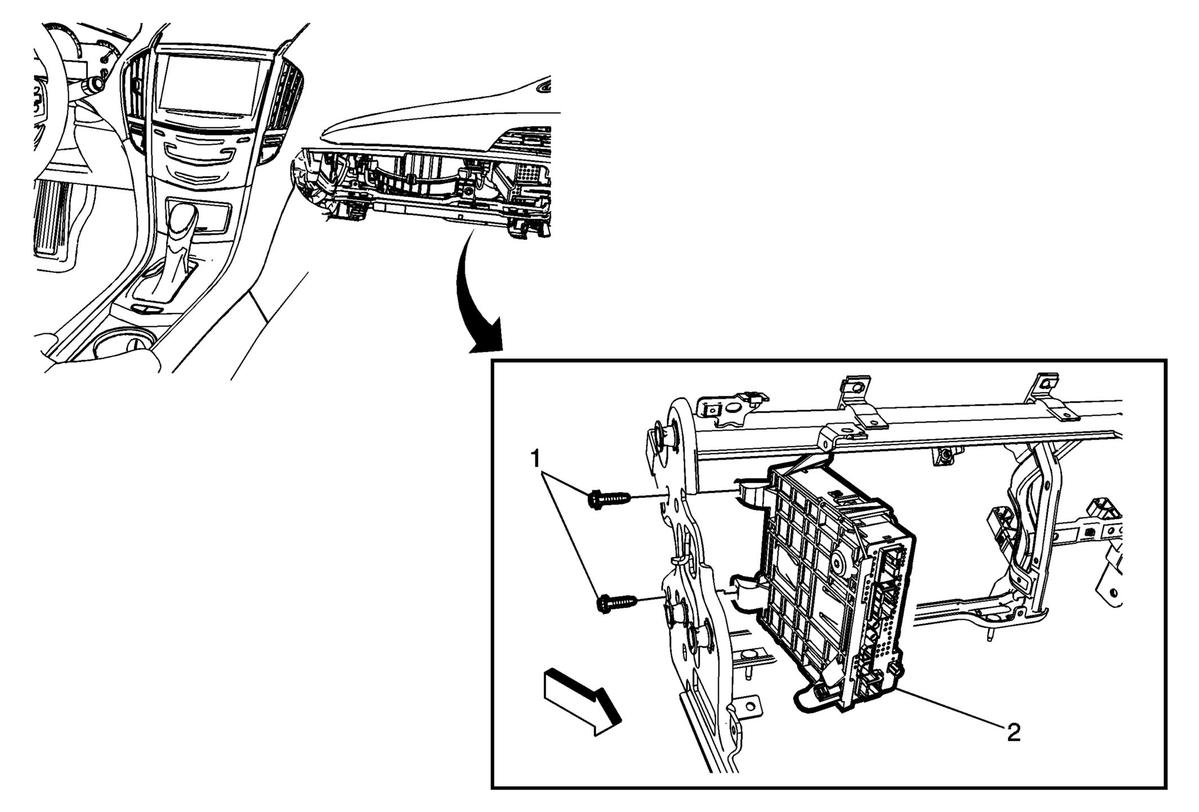

Fig 1: Radio Bracket & Fasteners
GM2833213Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement
  2. Remove the instrument panel insulator panel - right side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement (Left Side)Instrument Panel Lower Trim Panel Insulator Replacement (Right Side) .
1 Radio Bracket Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Radio Bracket

Procedure

  1. Disconnect the electrical connections.
  2. Transfer components as necessary.
